NSN 5330-01-131-1699 0801110099, 080-111-0099, 10080434
Product Details | PACKING RETAINER
5330-01-131-1699 An item designed to fit over a packing gland by mating with a surface of a second part which together will retain into a narrow groove or confined space the PACKING, PREFORMED or O-RING, or an item designed to fit over a rod or shaft, to mate with a stuffing box to confine PACKING MATERIAL. It may function as a static or dynamic seal retainer with the packing located on, around, or in the centerline direction of the rod or shaft axis. It may have holes or joints for mounting, be threaded or unthreaded. See also PACKING NUT and PACKING NUT, STUFFING TUBE.
Part Alternates: 0801110099, 080-111-0099, 10080434 , 8-226 N300-90, 8226N3009, 8-226N300-9, 8226N30090, 5330-01-131-1699, 01-131-1699, 5330011311699, 011311699
Hardware and Abrasives | Packing and Gasket Materials
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 05 MAY 1982 | 01-131-1699 | 13706 ( RETAINER, PACKING ) |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5330-01-131-1699
Technical Data | NSN 5330-01-131-1699
Characteristic | Specifications |
---|---|
MATERIAL | RUBBER OVERALL |

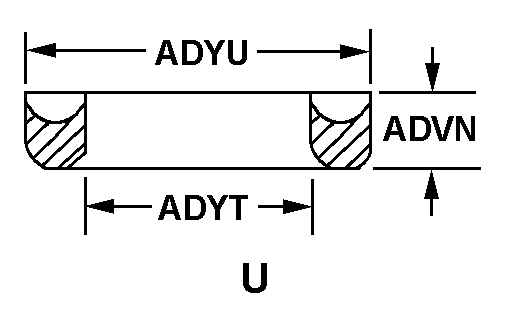

CROSS-SECTIONAL SHAPE STYLE | D10 U |
CROSS-SECTIONAL HEIGHT | 0.050 INCHES NOMINAL |
CENTER HOLE DIAMETER | 2.004 INCHES MINIMUM AND 2.040 INCHES MAXIMUM |
PERIPHERAL DIAMETER | 2.240 INCHES MINIMUM AND 2.276 INCHES MAXIMUM |
MANUFACTURERS CODE | 02697 |
DESIGN CONTROL REFERENCE | 8-226N300-9 |
Restrictions/Controls & Freight Information | NSN 5330-01-131-1699
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 596 | unknown |
Originating Activity Code | ZG | Germany ZH ZJ |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
