NSN 5330-01-130-6686 31517302, 3151-730-2, 01-130-6686
Product Details | GASKET SET
5330-01-130-6686 Two or more sizes and/or types of gaskets packaged or grouped for issue as a unit for complete replacement. See also GASKET ASSORTMENT.
Part Alternates: 31517302, 3151-730-2, 5330-01-130-6686, 01-130-6686, 5330011306686, 011306686
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 APR 1982 | 01-130-6686 | 20827 ( GASKET SET ) |

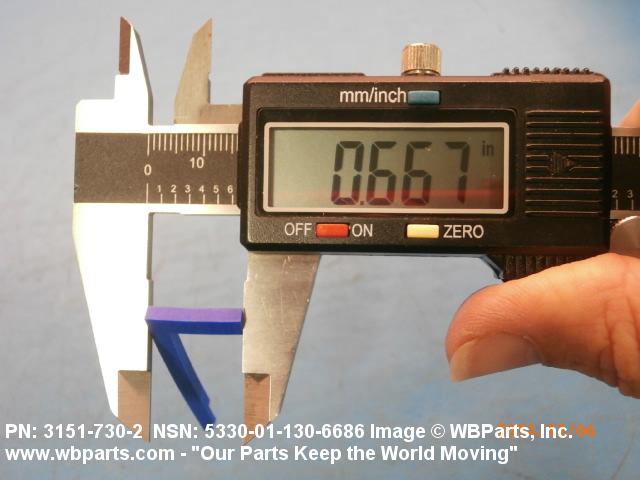

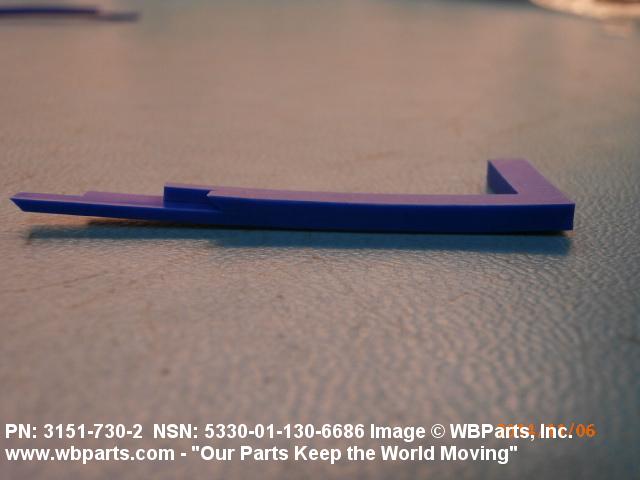

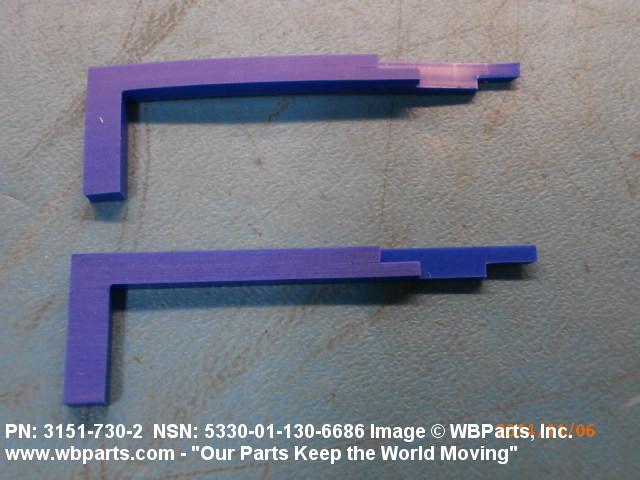

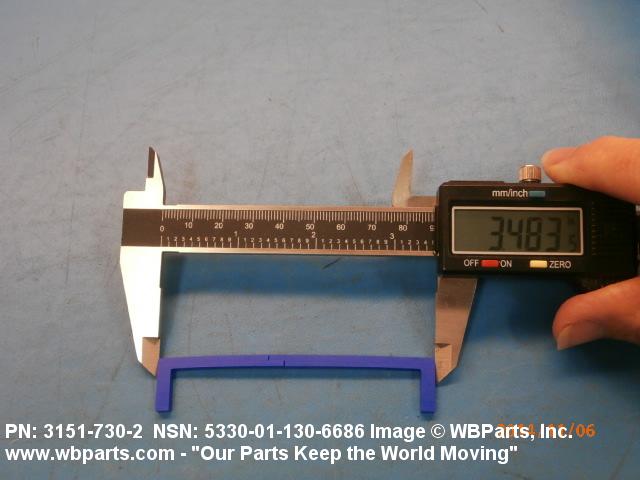

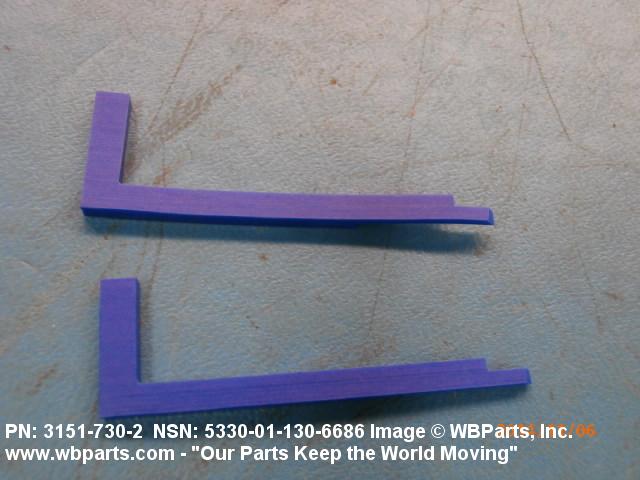

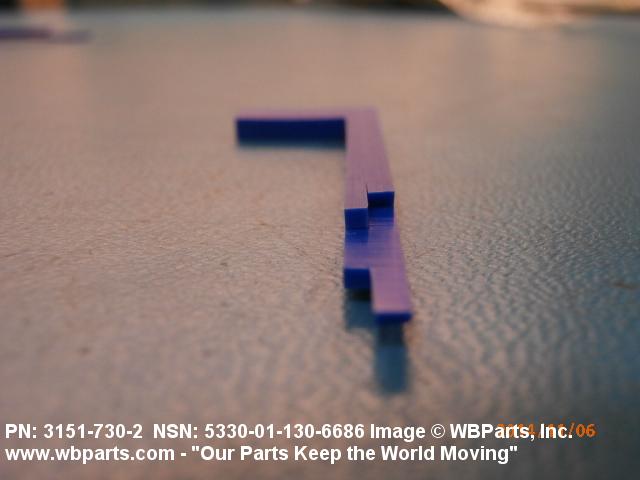

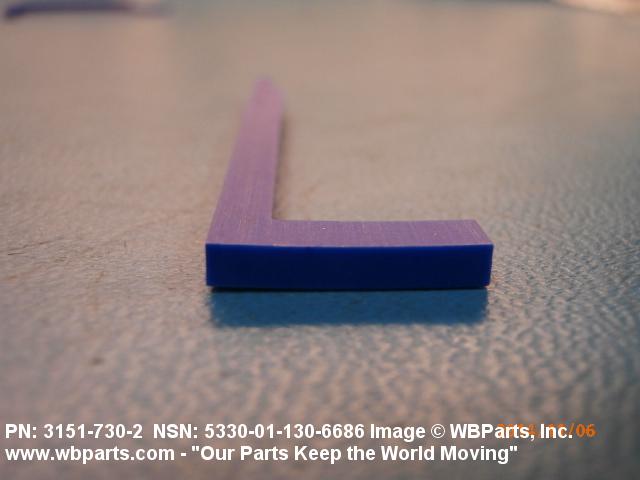

Drawings & Photos | NSN 5330-01-130-6686
Demand History | NSN 5330-01-130-6686
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-130-6686 | 2014-10-281 | 25 | United States |
Cross Reference | NSN 5330-01-130-6686
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3151-730-2 | 60029 | WOODWARD, INC. DBA WOODWARD HRT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-130-6686
Related Products | NSN 5330-01-130-6686
Technical Data | NSN 5330-01-130-6686
| Characteristic | Specifications |
|---|---|
| COMPONENT QUANTITY | 2 |
| COMPONENT DOCUMENT ORIGIN | INDUSTRIAL |
| DOCUMENT SOURCE | 94641 |
| DOCUMENT TYPE | DESIGN CONTROL DRAWING |
| DOCUMENT IDENTIFICATION | 3151-073 |
| COMPONENT DOCUMENT PAGE NUMBER | 1 |
| END ITEM NAME | ROTARY ACTUATOR |
| END ITEM SOURCE | 94641 |
| END ITEM IDENTIFICATION | 1650-01-065-7768 |
| MODEL NUMBER | 313151-5E |
| SPECIAL FEATURES | MATL THICKNESS 0.167 IN. |
| III UNPACKAGED UNIT LENGTH | 3.500 INCHES NOMINAL |
| III UNPACKAGED UNIT WIDTH | 0.640 INCHES NOMINAL |
| III UNPACKAGED UNIT HEIGHT | 0.108 INCHES MINIMUM AND 0.109 INCHES MAXIMUM |
| MANUFACTURERS CODE | 60029 |
| DESIGN CONTROL REFERENCE | 3151-730-2 |
Restrictions/Controls & Freight Information | NSN 5330-01-130-6686
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194050 | GASKETS/RINGS PLUMBING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
