NSN 5330-01-121-8292 SX31451, SX-3145-1, 28192B
Product Details | NONMETALLIC SPECIAL SHAPED SECTION SEAL
5330-01-121-8292 An item fabricated from NONMETALLIC SPECIAL SHAPED SECTION. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items, except for molded corners, slot(s), press fit buttons, and the like must be of one continuous cross section. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; PACKING, PERFORMED; PAD, CUSHIONING;and SEAL, PLAIN. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC SPECIAL SHAPED SECTION.
Part Alternates: SX31451, SX-3145-1, 28192B, 28-192-B, 5330-01-121-8292, 01-121-8292, 5330011218292, 011218292
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 NOV 1981 | 01-121-8292 | 32847 ( SEAL, NONMETALLIC SPECIAL SHAPED SECTION ) |

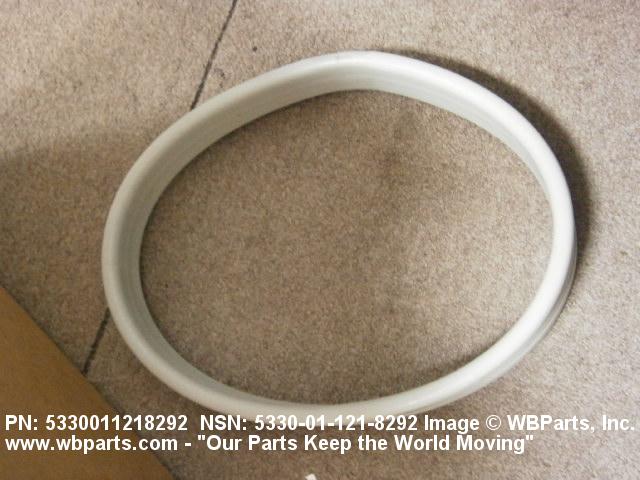

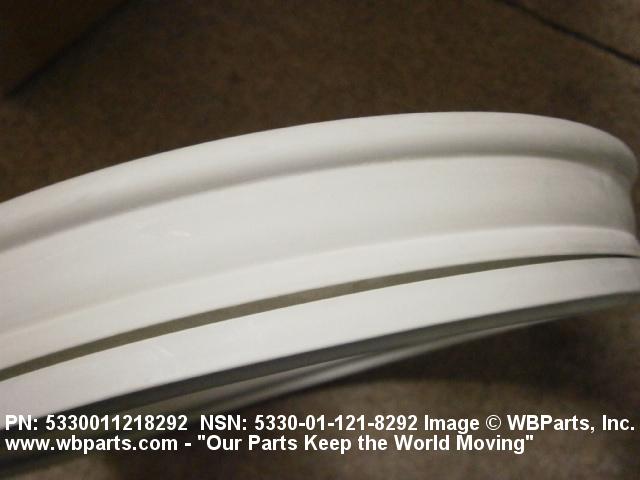

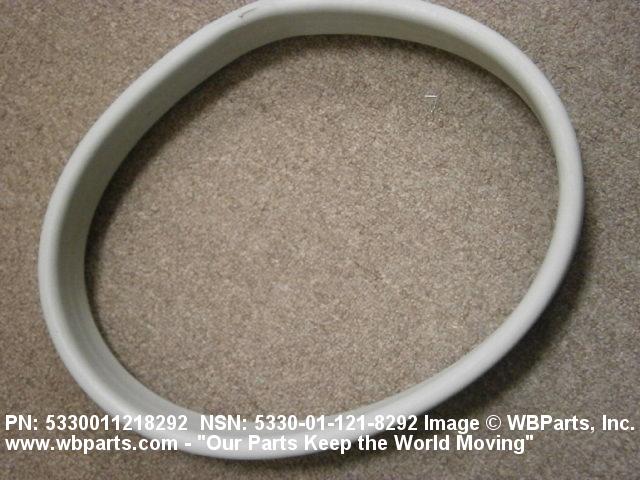

Drawings & Photos | NSN 5330-01-121-8292
Demand History | NSN 5330-01-121-8292
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 28-192-B | 2019-01-10 | 2 | DIBBS |
| SX-3145-1 | 2019-01-10 | 2 | DIBBS |
| 5330-01-121-8292 | 2018-09-248 | 5 | DIBBS |
| 5330-01-121-8292 | 2018-05-130 | 1 | DIBBS |
| 5330-01-121-8292 | 2015-04-105 | 5 | us |
| 5330-01-121-8292 | 2013-06-154 | 25 | DIBBS |
| 5330-01-121-8292 | 2013-06-152 | 1 | DIBBS |
| 5330-01-121-8292 | 2013-05-144 | 1 | DIBBS |
| 5330-01-121-8292 | 2013-02-34 | 5 | DIBBS |
| 5330-01-121-8292 | 2013-01-25 | 3 | DIBBS |
| 5330-01-121-8292 | 2012-02-40 | 5 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-121-8292
Technical Data | NSN 5330-01-121-8292
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER OVERALL |
| CONSTRUCTION | SPLIT |
| CROSS-SECTIONAL HEIGHT | 0.562 INCHES NOMINAL |
| CROSS-SECTIONAL WIDTH | 2.057 INCHES NOMINAL |
| FABRICATION METHOD | SOLID |
| SPECIAL FEATURES | COLOR GRAY |
| MANUFACTURERS CODE | 01420 |
| DESIGN CONTROL REFERENCE | 28-192-B |
Restrictions/Controls & Freight Information | NSN 5330-01-121-8292
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | S | 60 months |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-121-8292
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | S | 60 months |
| Purchasing | QTY UOM |
1 EA : Each |
