NSN 5330-01-121-2775 10119690 , 6035005802, 6035-0058-02
Product Details | PACKING RETAINER
5330-01-121-2775 An item designed to fit over a packing gland by mating with a surface of a second part which together will retain into a narrow groove or confined space the PACKING, PREFORMED or O-RING, or an item designed to fit over a rod or shaft, to mate with a stuffing box to confine PACKING MATERIAL. It may function as a static or dynamic seal retainer with the packing located on, around, or in the centerline direction of the rod or shaft axis. It may have holes or joints for mounting, be threaded or unthreaded. See also PACKING NUT and PACKING NUT, STUFFING TUBE.
Part Alternates: 10119690 , 6035005802, 6035-0058-02, 5330-01-121-2775, 01-121-2775, 5330011212775, 011212775
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 NOV 1981 | 01-121-2775 | 13706 ( RETAINER, PACKING ) |

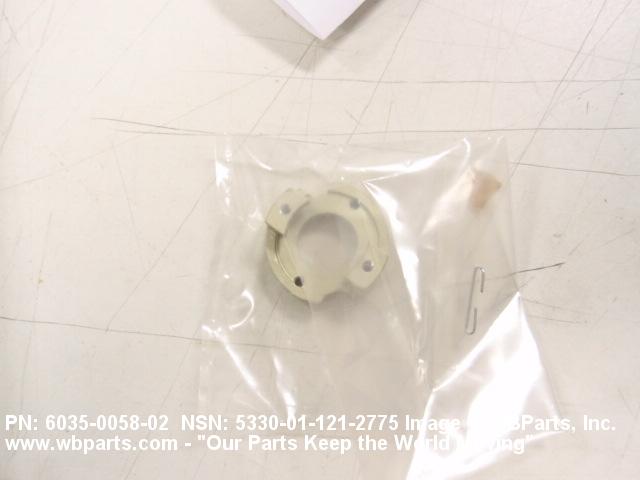

Drawings & Photos | NSN 5330-01-121-2775
Demand History | NSN 5330-01-121-2775
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6035-0058-02 | 2019-03-72 | 25 | DIBBS |
| 6035-0058-02 | 2019-02-52 | 25 | DIBBS |
| 5330-01-121-2775 | 2016-06-173 | 12 | DIBBS |
| 5330-01-121-2775 | 2016-06-171 | 3 | DIBBS |
| 5330-01-121-2775 | 2016-02-35 | 2 | DIBBS |
| 5330-01-121-2775 | 2010-10-293 | 3 | Spain |
| 5330-01-121-2775 | 2010-10-291 | 3 | Spain |
| 5330-01-121-2775 | 2010-10-291 | 3 | Spain |
Cross Reference | NSN 5330-01-121-2775
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6035-0058-02 | 17472 | EATON CORPORATION DIV FUEL & MOTION CONTROL SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-121-2775
Technical Data | NSN 5330-01-121-2775
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| CROSS-SECTIONAL HEIGHT | 0.390 INCHES NOMINAL |
| CENTER HOLE DIAMETER | 0.440 INCHES MINIMUM AND 0.441 INCHES MAXIMUM |
| PERIPHERAL DIAMETER | 0.900 INCHES NOMINAL |
| ATTACHMENT METHOD | ROUND HOLE |
| ATTACHMENT FEATURE QUANTITY | 4 |
| ATTACHMENT HOLE DIAMETER | 0.086 INCHES NOMINAL |
| SPECIAL FEATURES | HOLES 2-56 UNC-2B; 2 GROOVES 0.270 IN. DIA LOCATED ON OPPOSITE SIDES OF OD 0.358 IN. FROM CENTER OF SEAL |
| MANUFACTURERS CODE | 17472 |
| DESIGN CONTROL REFERENCE | 6035-0058-02 |
Restrictions/Controls & Freight Information | NSN 5330-01-121-2775
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-121-2775
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
