Product Details | PACKING RETAINER

5330-01-119-7220 An item designed to fit over a packing gland by mating with a surface of a second part which together will retain into a narrow groove or confined space the PACKING, PREFORMED or O-RING, or an item designed to fit over a rod or shaft, to mate with a stuffing box to confine PACKING MATERIAL. It may function as a static or dynamic seal retainer with the packing located on, around, or in the centerline direction of the rod or shaft axis. It may have holes or joints for mounting, be threaded or unthreaded. See also PACKING NUT and PACKING NUT, STUFFING TUBE.

Part Alternates: MC14807, 10119674 , 5330-01-119-7220, 01-119-7220, 5330011197220, 011197220

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG) NSN Assign. NIIN
53 01 OCT 1981 01-119-7220

Drawings & Photos | NSN 5330-01-119-7220


Demand History | NSN 5330-01-119-7220

Part Number Request Date QTY Origin
MC14807 2025-03-62 177 DIBBS
MC14807 2025-02-51 177 DIBBS
MC14807 2024-11-320 96 DIBBS
MC14807 2024-11-309 96 DIBBS
MC14807 2024-08-225 44 DIBBS
MC14807 2024-07-190 42 DIBBS
MC14807 2024-06-165 83 DIBBS
MC14807 2023-11-332 319 DIBBS
MC14807 2023-10-275 188 DIBBS
MC14807 2023-08-215 108 DIBBS
5330-01-119-7220 2016-02-39 651 DIBBS
5330-01-119-7220 2015-06-158 404 DIBBS
5330-01-119-7220 2015-03-82 218 DIBBS
5330-01-119-7220 2015-02-33 95 DIBBS
5330-01-119-7220 2014-07-201 43 DIBBS
5330-01-119-7220 2014-07-194 76 DIBBS
5330-01-119-7220 2014-04-114 118 DIBBS
5330-01-119-7220 2014-04-103 118 DIBBS
5330-01-119-7220 2014-03-69 33 DIBBS
5330-01-119-7220 2014-02-54 33 DIBBS
5330-01-119-7220 2013-06-156 156 DIBBS
5330-01-119-7220 2010-01-04 185 DIBBS

Cross Reference | NSN 5330-01-119-7220

Part Number Cage Code Manufacturer
MC14807 76050 EATON AEROSPACE LLC M C AEROSPACE DIV

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5330-01-119-7220

Technical Data | NSN 5330-01-119-7220

Characteristic Specifications
MATERIAL PLASTIC POLYTETRAFLUOROETHYLENE OVERALL

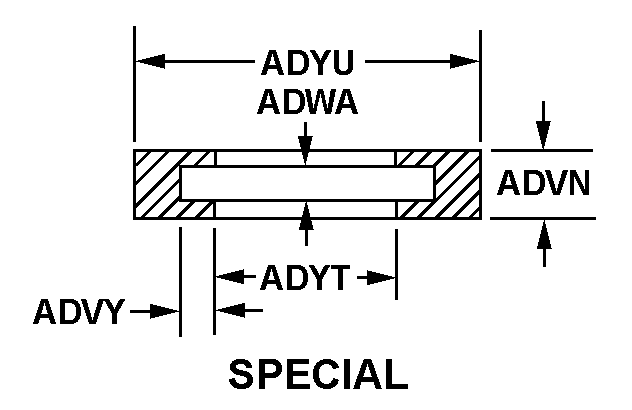

CROSS-SECTIONAL SHAPE STYLE D63 SPECIAL
CROSS-SECTIONAL HEIGHT 0.080 INCHES MINIMUM AND 0.085 INCHES MAXIMUM
INNER GROOVE DEPTH 0.015 INCHES NOMINAL
INNER GROOVE WIDTH 0.065 INCHES NOMINAL
CENTER HOLE DIAMETER 0.219 INCHES NOMINAL
PERIPHERAL DIAMETER 0.267 INCHES MINIMUM AND 0.271 INCHES MAXIMUM
MANUFACTURERS CODE 76050
DESIGN CONTROL REFERENCE MC14807

Restrictions/Controls & Freight Information | NSN 5330-01-119-7220

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 194120 WASHERS/GASKETS/PCKG DVCS NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 596 unknown
Originating Activity Code KZ Defense Supply Center Philadelphia
Philadelphia, PA 19101
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5330-01-119-7220

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
