NSN 5330-01-101-9492 NAS1523C3R, NAS1523CR, NAS1598C3R

Product Details | PACKING WITH RETAINER

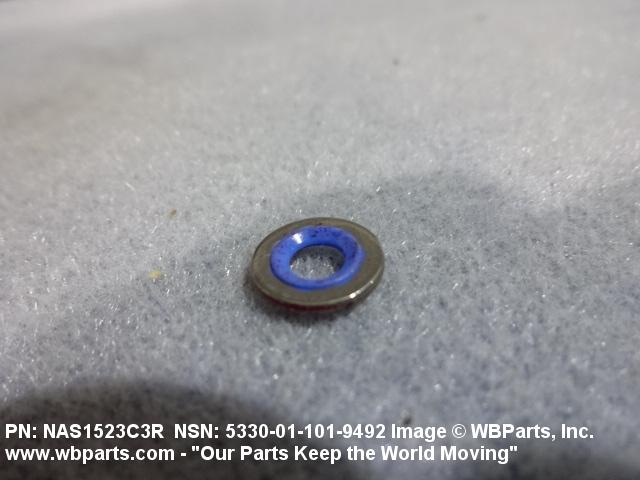

5330-01-101-9492 An item composed of a compressible nonmetallic ring which may be loosely fitted into a noncompressible retaining ring, or may be of one piece construction with the compressible ring molded and/or mechanically connected to the retainer. It is specifically designed to form a fluid tight seal when compressed by a packing nut, gland, etc., between fixed surfaces and a cylindrical item passing through it. Excludes SEAL, PLAIN, ENCASED.

Part Alternates: NAS1523C3R, NAS1523CR, NAS1598C3R, 5330-01-101-9492, 01-101-9492, 5330011019492, 011019492

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	09 OCT 1980	01-101-9492	05680 ( PACKING WITH RETAINER )

Drawings & Photos | NSN 5330-01-101-9492

Part Number	Request Date	QTY	Origin
5330-01-101-9492	2024-11-311	23161	DIBBS
5330-01-101-9492	2024-10-296	23161	DIBBS
5330-01-101-9492	2024-10-280	10301	DIBBS
5330-01-101-9492	2024-07-200	9303	DIBBS
NAS1523C3R	2024-06-158	23	US
5330-01-101-9492	2024-02-60	30215	DIBBS
5330-01-101-9492	2024-02-51	16958	DIBBS
5330-01-101-9492	2024-02-45	30215	DIBBS
5330-01-101-9492	2023-10-282	12505	DIBBS
5330-01-101-9492	2023-05-151	65475	DIBBS
5330-01-101-9492	2023-03-79	52970	DIBBS
5330-01-101-9492	2023-03-68	52970	DIBBS
5330-01-101-9492	2022-07-193	12505	DIBBS
5330-01-101-9492	2022-04-114	51591	DIBBS
5330-01-101-9492	2019-09-253	15429	DIBBS
5330-01-101-9492	2019-09-245	15429	DIBBS
5330-01-101-9492	2019-08-233	38000	DIBBS
5330-01-101-9492	2019-08-225	38000	DIBBS
5330-01-101-9492	2019-07-193	23128	DIBBS
5330-01-101-9492	2019-07-185	23128	DIBBS
5330-01-101-9492	2019-04-105	9737	DIBBS
NAS1598C3R	2019-04-102	14	us
5330-01-101-9492	2019-04-97	9737	DIBBS
NAS1523C3R	2016-03-63	5	us
NAS1523C3R	2015-07-182	33	UK
5330-01-101-9492	2014-09-255	34455	DIBBS
5330-01-101-9492	2013-09-247	1	DIBBS-RFPs
5330-01-101-9492	2013-07-206	1	DIBBS-RFPs
NAS1523C3R	2013-07-193	56	IN
5330-01-101-9492	2013-03-63	30599	DIBBS
5330-01-101-9492	2013-02-43	27000	DIBBS
5330-01-101-9492	2012-02-40	28000	DIBBS
5330-01-101-9492	2011-12-343	30000	DIBBS
5330-01-101-9492	2011-10-299	20000	DIBBS
5330-01-101-9492	2011-04-109	7546	DIBBS
5330-01-101-9492	2011-04-96	25162	DIBBS
5330-01-101-9492	2011-03-70	18899	DIBBS
NAS1523C3R	2010-11-305	100	United States
NAS1523C3R	2010-10-299	100	United States
5330-01-101-9492	2010-09-264	12024	DIBBS
5330-01-101-9492	2010-08-216	8250	DIBBS
NAS1523CR	2010-05-127	3000	United States
5330-01-101-9492	2010-05-123	40	US
NAS1523C3R	2007-02-59	570	US

Cross Reference | NSN 5330-01-101-9492

Part Number	Cage Code	Manufacturer
NAS1523C3R	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS1523CR	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS1598C3R	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5330-01-101-9492

Compare

Related Products | NSN 5330-01-101-9492

5330-01-101-9493, 5330-01-101-9559, 5330-01-101-9960, 5330-01-101-9989, 5330-01-102-0186

Technical Data | NSN 5330-01-101-9492

Characteristic	Specifications
MATERIAL	RUBBER SYNTHETIC PACKING STEEL COMP 301 OR STEEL COMP 302 RETAINER
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-5059 COND HALF HARD OR ANNEALED MIL SPEC ALL MATERIAL RESPONSES RETAINER
SURFACE TREATMENT	PASSIVATE RETAINER
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE RETAINER
CONSTRUCTION	ONE-PIECE

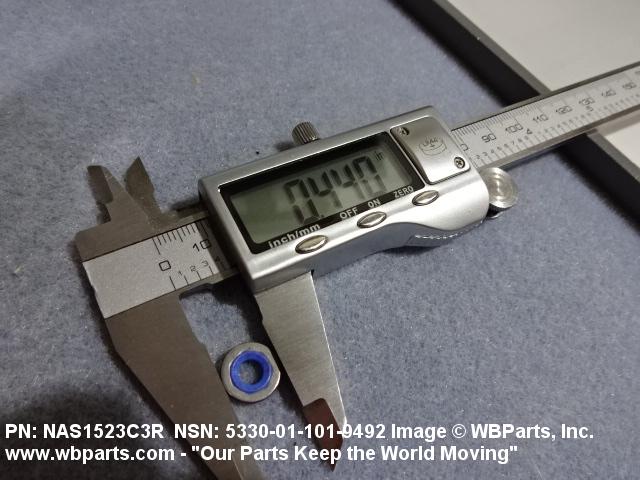

OUTSIDE DIAMETER	0.433 INCHES MINIMUM AND 0.458 INCHES MAXIMUM

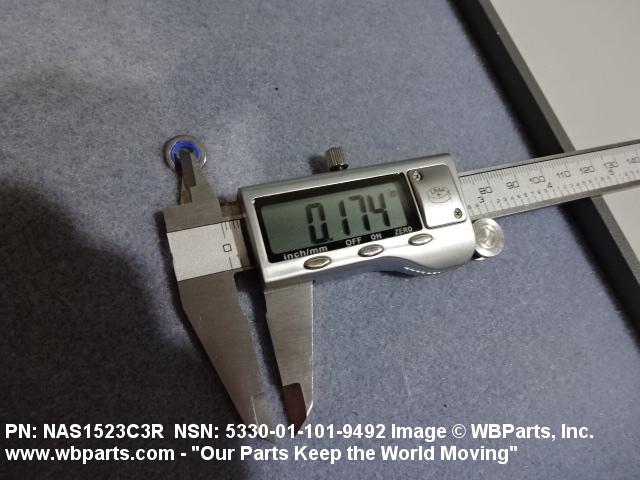

PACKING INSIDE DIAMETER	0.170 INCHES MINIMUM AND 0.190 INCHES MAXIMUM

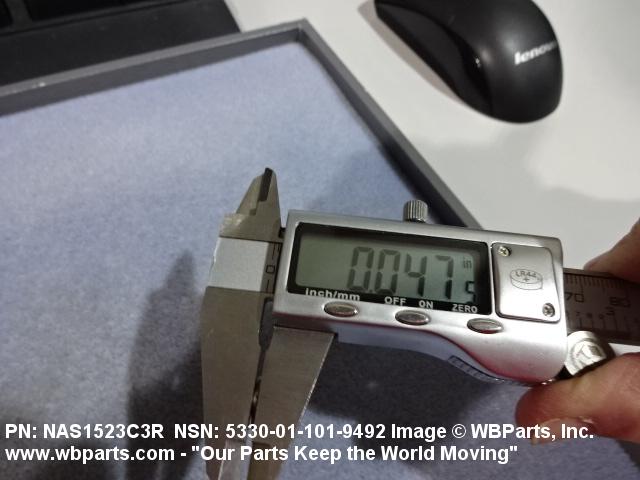

RETAINER THICKNESS	0.045 INCHES MINIMUM AND 0.055 INCHES MAXIMUM
