NSN 5330-01-101-4132 114281, 1-1428-1, 15928021

Product Details | PLAIN ENCASED SEAL

5330-01-101-4132 A pliable rubber, felt, leather, or composition ring-shaped element, split or solid; with or without spring or spreader, having a metal shell on all or a portion of at least two of the outer surfaces. It may be designed to be either bolt mounted or pressmounted between fixed and moveable parts to form a tight and effective seal by the pressure of the spring or spreader or the resiliency inherent in the element material. Excludes PACKING WITH RETAINER.

Part Alternates: 114281, 1-1428-1, 15928021, 1592802-1, 15928021-1, 95131931001, 95-131-931-001, 5330-01-101-4132, 01-101-4132, 5330011014132 , 011014132, 159280211

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	29 SEP 1980	01-101-4132	04214 ( SEAL, PLAIN ENCASED )

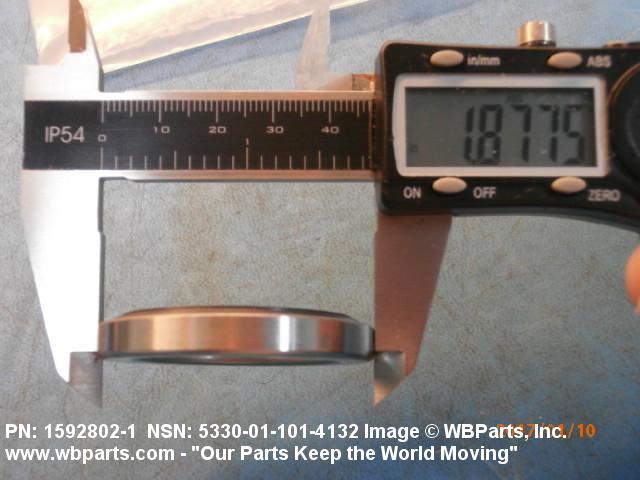

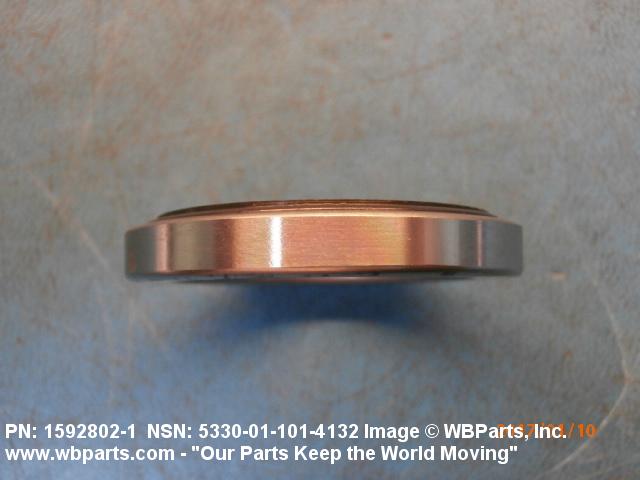

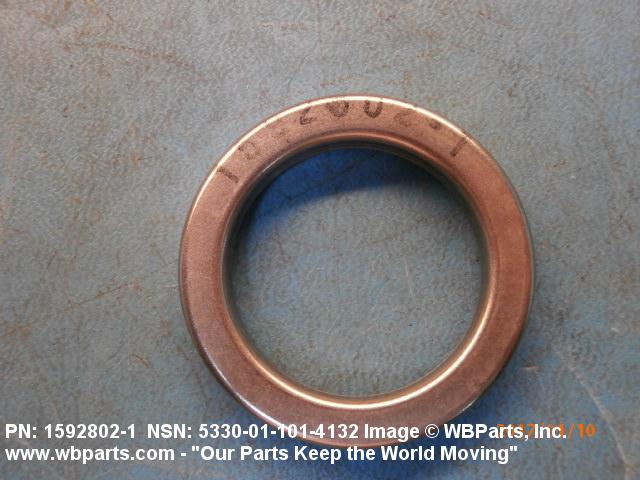

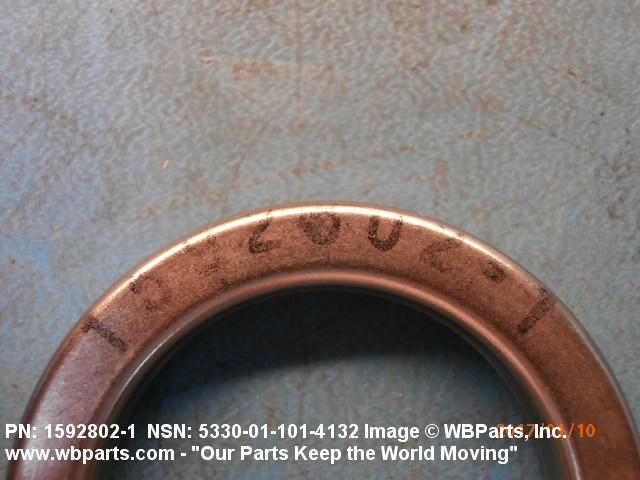

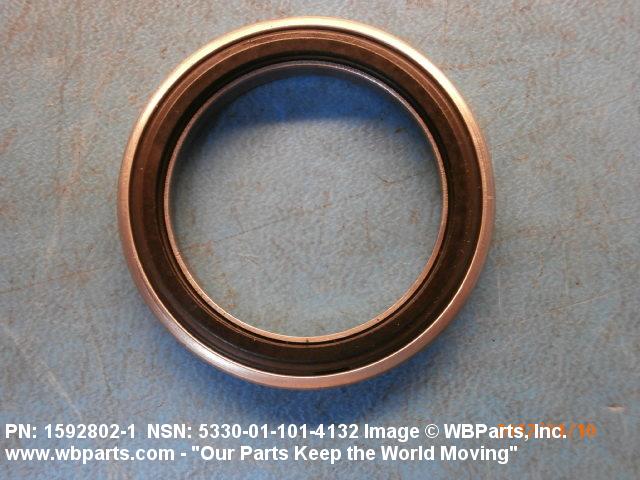

Drawings & Photos | NSN 5330-01-101-4132

Part Number	Request Date	QTY	Origin
1-1428-1	2024-09-259	375	DIBBS
1592802-1	2024-09-259	375	DIBBS
1-1428-1	2024-08-239	250	DIBBS
1592802-1	2024-08-239	250	DIBBS
1-1428-1	2024-08-228	250	DIBBS
1592802-1	2024-08-228	250	DIBBS
1-1428-1	2024-04-113	173	DIBBS
1592802-1	2024-04-113	173	DIBBS
1-1428-1	2024-04-102	173	DIBBS
1592802-1	2024-04-102	173	DIBBS
5330-01-101-4132	2023-07-191	1	UA
1-1428-1	2020-03-62	1000	DIBBS
1592802-1	2020-03-62	1000	DIBBS
5330-01-101-4132	2020-02-54	181	US
1-1428-1	2020-02-51	181	DIBBS
1592802-1	2020-02-51	181	DIBBS
5330-01-101-4132	2019-10-295	1500	Turkey
1-1428-1	2019-08-239	360	DIBBS
1592802-1	2019-08-239	360	DIBBS
1-1428-1	2019-08-231	360	DIBBS
1592802-1	2019-08-231	360	DIBBS
1-1428-1	2019-08-226	40	DIBBS
1592802-1	2019-08-226	40	DIBBS
1-1428-1	2019-08-217	200	DIBBS
1592802-1	2019-08-217	200	DIBBS
5330-01-101-4132	2019-07-204	150	US
5330-01-101-4132	2019-07-197	150	US
1-1428-1	2019-04-100	226	DIBBS
1592802-1	2019-04-100	226	DIBBS
1-1428-1	2019-01-30	383	DIBBS
1592802-1	2019-01-30	383	DIBBS
5330-01-101-4132	2018-12-336	104	DIBBS
5330-01-101-4132	2018-11-314	100	US
15928021	2018-10-303	1	US
5330-01-101-4132	2018-10-291	100	EG
5330-01-101-4132	2018-09-249	158	DIBBS
5330-01-101-4132	2018-08-241	158	DIBBS
5330-01-101-4132	2018-05-140	170	DIBBS
5330-01-101-4132	2017-09-255	200	DIBBS
5330-01-101-4132	2017-06-156	10	us
5330-01-101-4132	2017-04-114	500	DIBBS
5330-01-101-4132	2017-03-88	82	DIBBS
5330-01-101-4132	2016-12-350	10	Thailand
5330-01-101-4132	2016-12-349	150	US
5330-01-101-4132	2016-10-299	500	DIBBS
5330-01-101-4132	2016-10-292	500	DIBBS
5330-01-101-4132	2016-09-266	150	TR
5330-01-101-4132	2016-03-66	200	DIBBS
95131931001	2016-01-21	83	United States
5330-01-101-4132	2014-09-260	500	DIBBS
5330-01-101-4132	2014-08-224	300	DIBBS
5330-01-101-4132	2014-07-209	59	DIBBS
5330-01-101-4132	2014-07-198	59	DIBBS
5330-01-101-4132	2012-03-73	50	Turkey
5330-01-101-4132	2012-02-37	50	Turkey
5330-01-101-4132	2011-12-349	1180	TR
5330-01-101-4132	2011-07-182	195	US
15928021	2011-05-147	200	TR
5330-01-101-4132	2008-09-268	30	Thailand
5330-01-101-4132	2007-07-190	650	Turkey

Cross Reference | NSN 5330-01-101-4132

Part Number	Cage Code	Manufacturer
1-1428-1	91587	REXNORD INDUSTRIES, LLC DIV SEAL OPERATION
1592802-1	59364	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
15928021-1	83298	ALLIED SIGNAL INC AEROSPACE EQUIPMENT SYSTEMS
5330011014132	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
95-131-931-001	77931	EG AND G SEALOL INDUSTRIAL SEALING DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5330-01-101-4132

Compare

Related Products | NSN 5330-01-101-4132

5330-01-101-4134, 5330-01-101-4273, 5330-01-101-4312, 5330-01-101-4313, 5330-01-101-4350

Technical Data | NSN 5330-01-101-4132

Characteristic	Specifications
MATERIAL	RUBBER SEALING ELEMENT
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-R-25897 MIL SPEC SINGLE MATERIAL RESPONSE SEALING ELEMENT
CASE STYLE	3 SHOULDERED
SEALING ELEMENT STYLE	2 VERTICAL

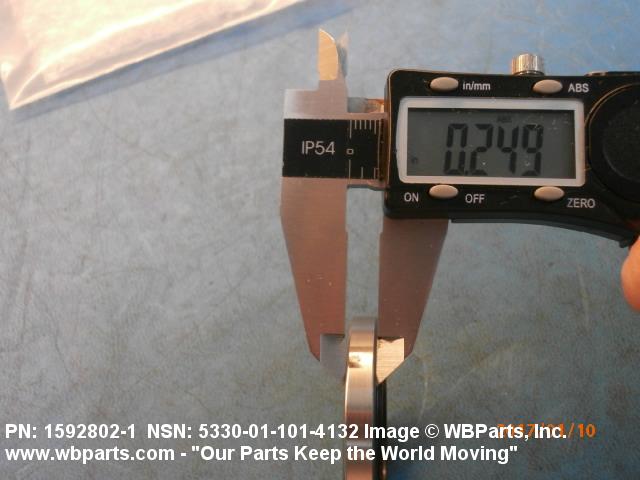

SEAL WIDTH	0.233 INCHES MINIMUM AND 0.248 INCHES MAXIMUM

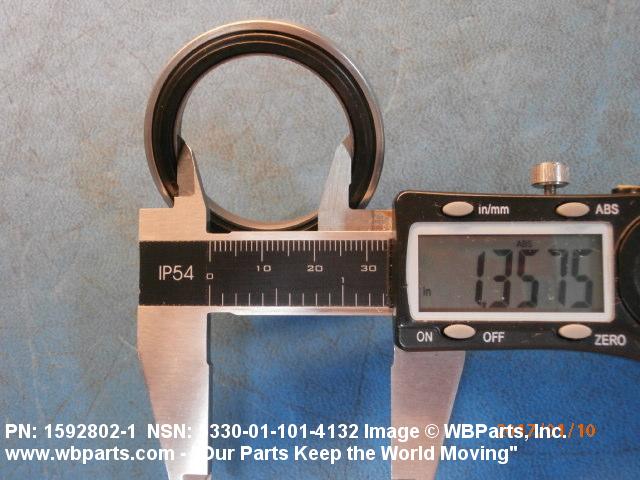

ACCOMMODATED SHAFT DIAMETER	1.355 INCHES MINIMUM AND 1.360 INCHES MAXIMUM
III END ITEM IDENTIFICATION	2350-01-060-2445

Restrictions/Controls & Freight Information | NSN 5330-01-101-4132

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194120	WASHERS/GASKETS/PCKG DVCS NOI
Less than car load rating	P	77.5
Less than truck load rating	W	Rating Variable
Water commodity Code	596	unknown
Originating Activity Code	AZ	U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5330-01-101-4132

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
