NSN 5330-01-089-7794 13217E0530, 01-089-7794, 010897794
Product Details | RUBBER STRIP
5330-01-089-7794 An elastic material of compact (solid) or cellular structure having smooth, crepe or porous surface(s) and having an oval, parallelogram, square, rectangular or D-shaped cross section. It is produced in various thicknesses. Strips are limited to widths of 6 inches (152.4mm) or less. It may or may not have a nonrubber backing or a wire cloth or cord insert. For items having a round cross section, see RUBBER ROUND SECTION. Excludes RUBBER SHEET, INNER TUBE REPAIR. See also NONMETALLIC ANGLE; NONMETALLIC CHANNEL; NONMETALLIC SPECIAL SHAPED SECTION.20253300028Packing and Gasket Materials93200027Rubber Fabricated Materials
Part Alternates: 13217E0530, 5330-01-089-7794, 01-089-7794, 5330010897794, 010897794
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 FEB 1980 | 01-089-7794 | 25879 ( RUBBER STRIP ) |
Drawings & Photos | NSN 5330-01-089-7794
Demand History | NSN 5330-01-089-7794
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-089-7794 | 2019-04-106 | 1 | DIBBS |
| 5330-01-089-7794 | 2008-08-226 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-089-7794
Technical Data | NSN 5330-01-089-7794
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER |
| NONMETALLIC HARDNESS RATING | NOT RATED |
| MINIMUM TENSILE STRENGTH | NOT RATED |
| TEMP RATING | NOT RATED |
| SURFACE CONDITION | SMOOTH |

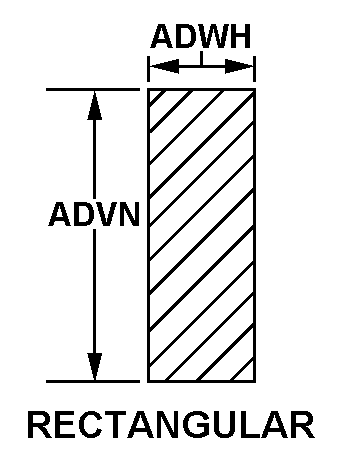

| CROSS-SECTIONAL SHAPE STYLE | 3 RECTANGULAR |
| CROSS-SECTIONAL HEIGHT | 0.688 INCHES NOMINAL |
| CROSS-SECTIONAL WIDTH | 0.188 INCHES NOMINAL |
| LENGTH | 18.250 INCHES NOMINAL |
| SPECIAL FEATURES | MATERIAL CONFORMS TO REQMTS. OF MIL-C-3133,GRADE SCE7K2;INC.ONE BOLT HOLE,DIA. 0.498 IN. MIN.,0.507 IN. MAX. |
| MANUFACTURERS CODE | 19204 |
| DESIGN CONTROL REFERENCE | 13217E0530 |
Restrictions/Controls & Freight Information | NSN 5330-01-089-7794
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156600 | PLASTIC/RUBBER ARTICLE VIZ: |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-089-7794
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
