5330-01-089-7689 An item designed to fit over a packing gland by mating with a surface of a second part which together will retain into a narrow groove or confined space the PACKING, PREFORMED or O-RING, or an item designed to fit over a rod or shaft, to mate with a stuffing box to confine PACKING MATERIAL. It may function as a static or dynamic seal retainer with the packing located on, around, or in the centerline direction of the rod or shaft axis. It may have holes or joints for mounting, be threaded or unthreaded. See also PACKING NUT and PACKING NUT, STUFFING TUBE.

Part Alternates: S306510135, S30651-013-5, 082602060135, 082-60206-013-5, 10126920 , 12524628-8 , 2 0040-173 , 20040173, 46546288, 465-4628-8 , 5330-01-089-7689, 01-089-7689, 5330010897689, 125246288, 010897689

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG) NSN Assign. NIIN
53 07 FEB 1980 01-089-7689

Drawings & Photos | NSN 5330-01-089-7689


Demand History | NSN 5330-01-089-7689

Part Number Request Date QTY Origin
5330-01-089-7689 2018-01-15 90 DIBBS

Cross Reference | NSN 5330-01-089-7689

Part Number Cage Code Manufacturer
082-60206-013-5 94697 MOOG, INC.
S30651-013-5 09257 TRELLEBORG SEALING SOLUTIONS US, INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5330-01-089-7689

Technical Data | NSN 5330-01-089-7689

Characteristic Specifications
MATERIAL PLASTIC POLYTETRAFLUOROETHYLENE OVERALL

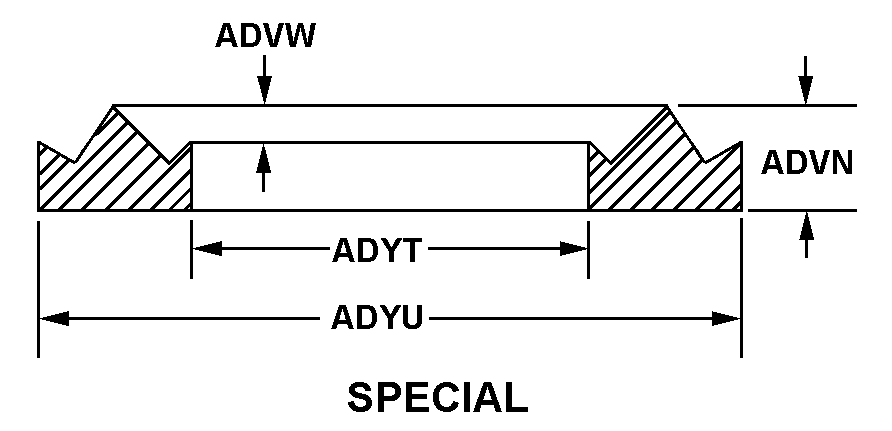

CROSS-SECTIONAL SHAPE STYLE D114 SPECIAL
CROSS SECTION INSIDE DIAMETER 0.424 INCHES NOMINAL
CROSS SECTION OUTSIDE DIAMETER 0.459 INCHES NOMINAL
CROSS-SECTIONAL HEIGHT 0.133 INCHES NOMINAL
BODY RECESS DEPTH 0.050 INCHES NOMINAL
MANUFACTURERS CODE 94697
MFR SOURCE CONTROLLING REFERENCE 082-60206-013-5
