NSN 5330-01-086-8594 CG6B347, 01-086-8594, 010868594
Product Details | SPIRAL WOUND GASKET
5330-01-086-8594 A circular or moderately noncircular shaped item with an aperture. It is constructed of spring-like metal strips, preformed into a vee shape, laminated with a soft filler. It is designed to seal between two nondeforming surfaces. It may have an inner and/or outer, solid or spiral wound compression ring(s).
Part Alternates: CG6B347, 5330-01-086-8594, 01-086-8594, 5330010868594, 010868594
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 DEC 1979 | 01-086-8594 | 37840 ( GASKET, SPIRAL WOUND ) |
Drawings & Photos | NSN 5330-01-086-8594
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-086-8594
Technical Data | NSN 5330-01-086-8594
| Characteristic | Specifications |
|---|---|
| MATERIAL | ASBESTOS AND STEEL COMP 347 OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F47 METAL WINDING W/SOFT FILLER AND OUTER RING |
| CROSS-SECTIONAL THICKNESS | 0.175 INCHES NOMINAL |
| GAGE RING THICKNESS | 0.125 INCHES NOMINAL |

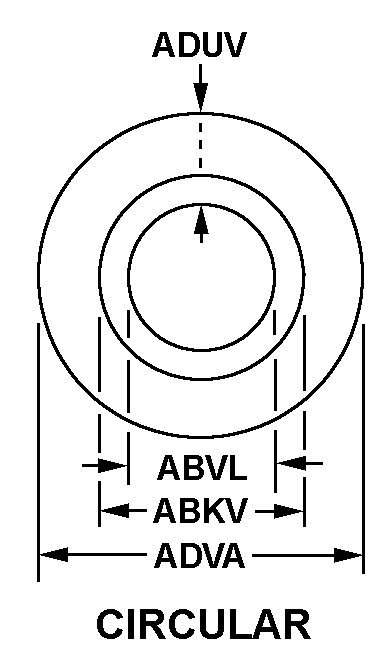

| STYLE DESIGNATOR | B8 CIRCULAR |
| OUTSIDE DIAMETER | 1.250 INCHES NOMINAL |
| APERTURE DIAMETER | 0.750 INCHES NOMINAL |
| BEARING SURFACE WIDTH | 0.250 INCHES NOMINAL |
| GAGE RING OUTSIDE DIAMETER | 2.125 INCHES NOMINAL |
| III MAXIMUM PRESSURE RATING | 600.0 POUNDS PER SQUARE INCH |
| MANUFACTURERS CODE | 58156 |
| DESIGN CONTROL REFERENCE | CG6B347 |
Restrictions/Controls & Freight Information | NSN 5330-01-086-8594
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-086-8594
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
