NSN 5330-01-049-0031 MS510001302, MS51000-130-2, A-A-52524/1-130-2

Product Details | PLAIN ENCASED SEAL

5330-01-049-0031 A pliable rubber, felt, leather, or composition ring-shaped element, split or solid; with or without spring or spreader, having a metal shell on all or a portion of at least two of the outer surfaces. It may be designed to be either bolt mounted or pressmounted between fixed and moveable parts to form a tight and effective seal by the pressure of the spring or spreader or the resiliency inherent in the element material. Excludes PACKING WITH RETAINER.

Part Alternates: MS510001302, MS51000-130-2, A-A-52524/1-130-2, AA5252411302, 5330-01-049-0031, 01-049-0031, 5330010490031 , 010490031

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	09 OCT 1977	01-049-0031	04214 ( SEAL, PLAIN ENCASED )

Drawings & Photos | NSN 5330-01-049-0031

Part Number	Request Date	QTY	Origin
5330-01-049-0031	2021-10-279	4	DIBBS
5330-01-049-0031	2018-10-291	39	DIBBS
5330-01-049-0031	2017-08-243	11	DIBBS
5330-01-049-0031	2016-08-236	6	DIBBS
5330-01-049-0031	2014-12-364	197	DIBBS
5330-01-049-0031	2014-12-348	197	DIBBS
5330-01-049-0031	2014-04-101	130	DIBBS
5330-01-049-0031	2014-03-90	130	DIBBS
5330-01-049-0031	2014-01-31	11	DIBBS
5330-01-049-0031	2014-01-16	11	DIBBS
5330-01-049-0031	2013-11-332	2	DIBBS
5330-01-049-0031	2013-11-332	52	DIBBS
5330-01-049-0031	2013-02-38	41	DIBBS
5330-01-049-0031	2013-02-38	1000	DIBBS
5330-01-049-0031	2013-01-25	41	DIBBS
5330-01-049-0031	2013-01-25	1000	DIBBS
5330-01-049-0031	2012-08-237	1	DIBBS
5330-01-049-0031	2012-08-237	41	DIBBS
5330-01-049-0031	2011-11-330	264	DIBBS

Cross Reference | NSN 5330-01-049-0031

Part Number	Cage Code	Manufacturer
5330010490031	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
A-A-52524/1-130-2	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
MS51000-130-2	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5330-01-049-0031

Compare

Related Products | NSN 5330-01-049-0031

5330-01-049-0032, 5330-01-049-0033, 5330-01-049-0034, 5330-01-049-0035, 5330-01-049-0036

Technical Data | NSN 5330-01-049-0031

Characteristic	Specifications
MATERIAL	STEEL CASE RUBBER SYNTHETIC SEALING ELEMENT
SURFACE TREATMENT	ZINC AND CHROMATE OR CADMIUM AND CHROMATE CASE
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-Z-325 TY 2,CL 3 FED SPEC 1ST TREATMENT RESPONSE OR QQ-P-416 TY 2,CL 3 FED SPEC 2ND TREATMENT RESPONSE CASE
CASE STYLE	1 SQUARE

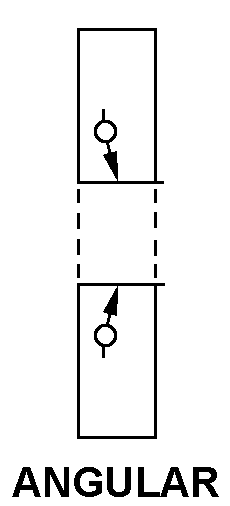

SEALING ELEMENT STYLE	4 ANGULAR
SEAL WIDTH	0.423 INCHES MINIMUM AND 0.453 INCHES MAXIMUM
ACCOMMODATED SHAFT MAXIMUM RATED SPEED	1836 FEET PER MINUTE
ACCOMMODATED SHAFT DIAMETER	2.125 INCHES NOMINAL
HOUSING BORE DIAMETER	2.875 INCHES NOMINAL
MANUFACTURERS CODE	58536
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	A-A-52524/1-130-2

Restrictions/Controls & Freight Information | NSN 5330-01-049-0031

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194160	WASHER OR GASKETS, IRON OR STEEL,
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5330-01-049-0031

Army

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
