NSN 5330-01-046-9923 2000225101, 2000225-101, 01-046-9923
Product Details | NONMETALLIC SPECIAL SHAPED SECTION SEAL
5330-01-046-9923 An item fabricated from NONMETALLIC SPECIAL SHAPED SECTION. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items, except for molded corners, slot(s), press fit buttons, and the like must be of one continuous cross section. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; PACKING, PERFORMED; PAD, CUSHIONING;and SEAL, PLAIN. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC SPECIAL SHAPED SECTION.
Part Alternates: 2000225101, 2000225-101, 5330-01-046-9923, 01-046-9923, 5330010469923, 010469923
Hardware and Abrasives | Packing and Gasket Materials
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 27 AUG 1977 | 01-046-9923 | 32847 ( SEAL, NONMETALLIC SPECIAL SHAPED SECTION ) |
Cross Reference | NSN 5330-01-046-9923
Part Number | Cage Code | Manufacturer |
---|---|---|
2000225-101 | 54077 | JOHN BEAN TECHNOLOGIES CORPORATION DBA AIRPORT SYSTEMS GROUND EQUIPMENT |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5330-01-046-9923
Technical Data | NSN 5330-01-046-9923
Characteristic | Specifications |
---|---|
MATERIAL | RUBBER SYNTHETIC OVERALL |
CONSTRUCTION | SOLID |

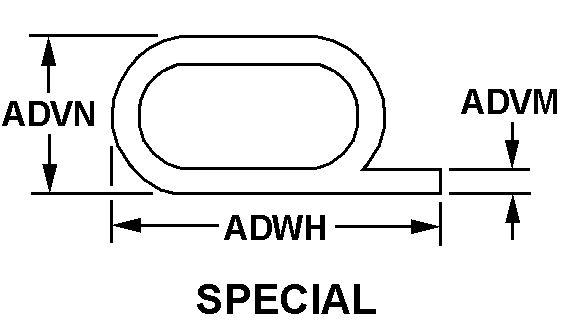

CROSS-SECTIONAL SHAPE STYLE | H101 SPECIAL |
CROSS-SECTIONAL THICKNESS | 0.188 INCHES NOMINAL |
CROSS-SECTIONAL HEIGHT | 3.000 INCHES NOMINAL |
CROSS-SECTIONAL WIDTH | 5.750 INCHES NOMINAL |
FABRICATION METHOD | CELLULAR, UNEXPLODED |
STYLE DESIGNATOR | A15 STRIP |
OVERALL LENGTH | 19.500 INCHES NOMINAL |
ATTACHMENT METHOD | ROUND HOLE |
ATTACHMENT FEATURE QUANTITY | 2 |
ATTACHMENT HOLE DIAMETER | 0.375 INCHES NOMINAL |
MANUFACTURERS CODE | 54077 |
DESIGN CONTROL REFERENCE | 2000225-101 |
Restrictions/Controls & Freight Information | NSN 5330-01-046-9923
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI SUB6 |
Less than car load rating | J | 100.2 |
Less than truck load rating | J | 100.2 |
Water commodity Code | 596 | unknown |
Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | Z | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-046-9923
Category | Code | Description |
---|---|---|
Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
Materiel Management Aggregation Code | JX | TG:AIRCRAFT MAINTENANCE EQUIPMENT |
Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DF | Department of the Air Force |
Service Organization | F | U.S. Air Force |
Reparability | N | Stock Fund (except Munitions) |
Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
