Product Details | PLAIN ENCASED SEAL

5330-01-035-1899 A pliable rubber, felt, leather, or composition ring-shaped element, split or solid; with or without spring or spreader, having a metal shell on all or a portion of at least two of the outer surfaces. It may be designed to be either bolt mounted or pressmounted between fixed and moveable parts to form a tight and effective seal by the pressure of the spring or spreader or the resiliency inherent in the element material. Excludes PACKING WITH RETAINER.

Part Alternates: A02047, 100116, 5330-01-035-1899, 01-035-1899, 5330010351899, 010351899

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG) NSN Assign. NIIN
53 01-035-1899

Drawings & Photos | NSN 5330-01-035-1899


Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5330-01-035-1899

Technical Data | NSN 5330-01-035-1899

Characteristic Specifications
MATERIAL NICKEL ALLOY CASE GLASS SEALING ELEMENT

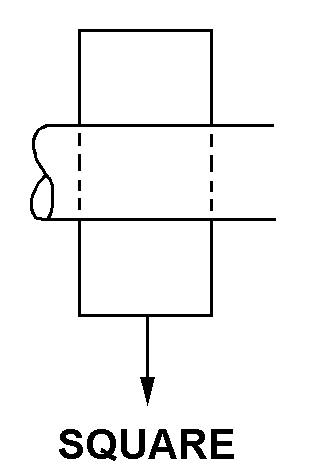

CASE STYLE 1 SQUARE

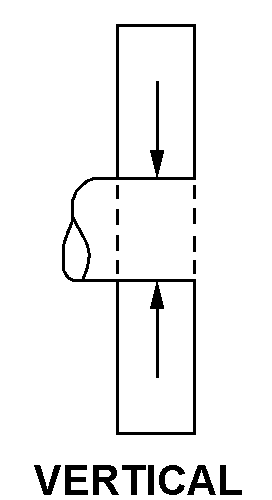

SEALING ELEMENT STYLE 1 VERTICAL
SEAL WIDTH 0.063 INCHES MINIMUM AND 0.066 INCHES MAXIMUM
ACCOMMODATED SHAFT DIAMETER 0.372 INCHES MINIMUM AND 0.388 INCHES MAXIMUM
HOUSING BORE DIAMETER 0.502 INCHES MINIMUM AND 0.508 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5330-01-035-1899

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Category Code Description
No Freight Information
