NSN 5330-01-024-8144 34440571, 3444057-1, 01-024-8144
Product Details | PACKING RETAINER
5330-01-024-8144 An item designed to fit over a packing gland by mating with a surface of a second part which together will retain into a narrow groove or confined space the PACKING, PREFORMED or O-RING, or an item designed to fit over a rod or shaft, to mate with a stuffing box to confine PACKING MATERIAL. It may function as a static or dynamic seal retainer with the packing located on, around, or in the centerline direction of the rod or shaft axis. It may have holes or joints for mounting, be threaded or unthreaded. See also PACKING NUT and PACKING NUT, STUFFING TUBE.
Part Alternates: 34440571, 3444057-1, 5330-01-024-8144, 01-024-8144, 5330010248144, 010248144
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 JUL 1976 | 01-024-8144 | 13706 ( RETAINER, PACKING ) |
Drawings & Photos | NSN 5330-01-024-8144
Cross Reference | NSN 5330-01-024-8144
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3444057-1 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-024-8144
Technical Data | NSN 5330-01-024-8144
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY UNS N06002 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5754 OR AMS 5536 UN06002 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |

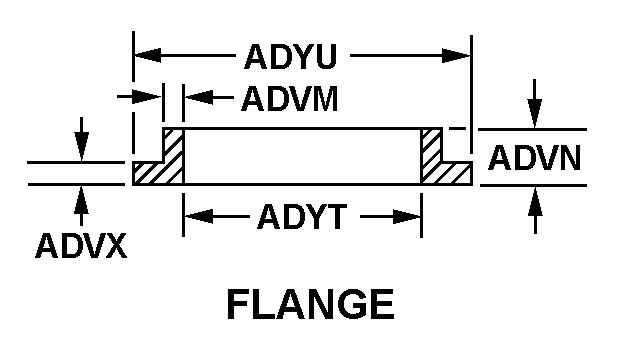

| CROSS-SECTIONAL SHAPE STYLE | D19 FLANGE |
| CROSS-SECTIONAL THICKNESS | 0.060 INCHES NOMINAL |
| CROSS-SECTIONAL HEIGHT | 0.320 INCHES NOMINAL |
| RIM SURFACE WIDTH | 0.083 INCHES NOMINAL |
| CENTER HOLE DIAMETER | 3.700 INCHES NOMINAL |
| PERIPHERAL DIAMETER | 4.800 INCHES NOMINAL |
| ATTACHMENT METHOD | ROUND HOLE |
| ATTACHMENT FEATURE QUANTITY | 8 |
| ATTACHMENT HOLE DIAMETER | 0.218 INCHES MINIMUM AND 0.226 INCHES MAXIMUM |
| ATTACHMENT FEATURE CIRCLE DIAMETER | 4.180 INCHES NOMINAL RETAINER |
| SPECIAL FEATURES | FLANGE HAS STEP IN BOLT HOLE AREA |
| MANUFACTURERS CODE | 99193 |
| DESIGN CONTROL REFERENCE | 3444057-1 |
