NSN 5330-01-023-5894 V210110307, V2-101-103-07 , 2-101-103-07
Product Details | PACKING RETAINER
5330-01-023-5894 An item designed to fit over a packing gland by mating with a surface of a second part which together will retain into a narrow groove or confined space the PACKING, PREFORMED or O-RING, or an item designed to fit over a rod or shaft, to mate with a stuffing box to confine PACKING MATERIAL. It may function as a static or dynamic seal retainer with the packing located on, around, or in the centerline direction of the rod or shaft axis. It may have holes or joints for mounting, be threaded or unthreaded. See also PACKING NUT and PACKING NUT, STUFFING TUBE.
Part Alternates: V210110307, V2-101-103-07 , 2-101-103-07, 5330-01-023-5894, 01-023-5894, 5330010235894, 210110307, 010235894
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 JUN 1976 | 01-023-5894 | 13706 ( RETAINER, PACKING ) |

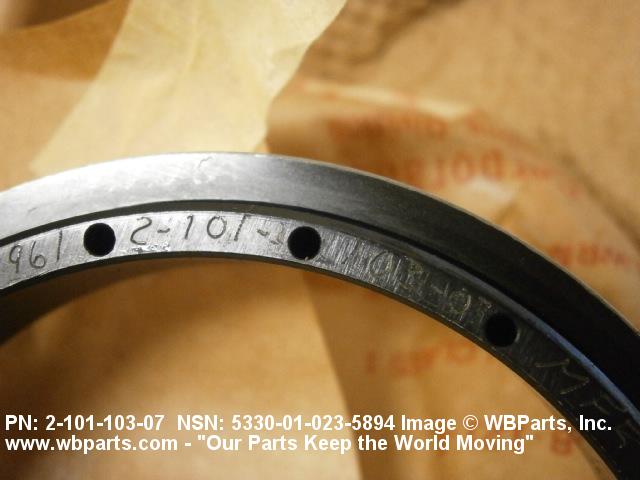

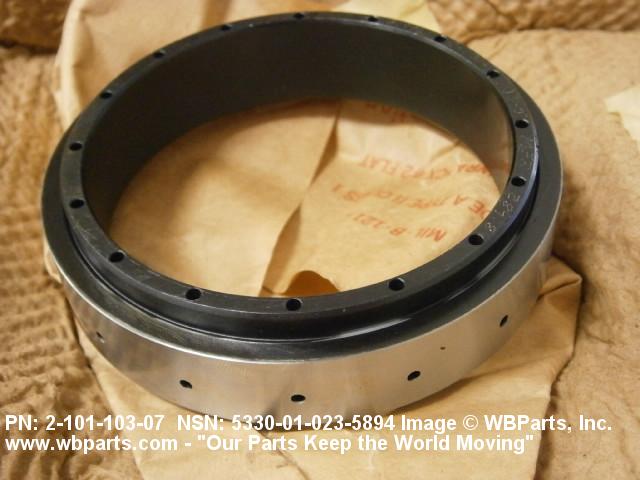

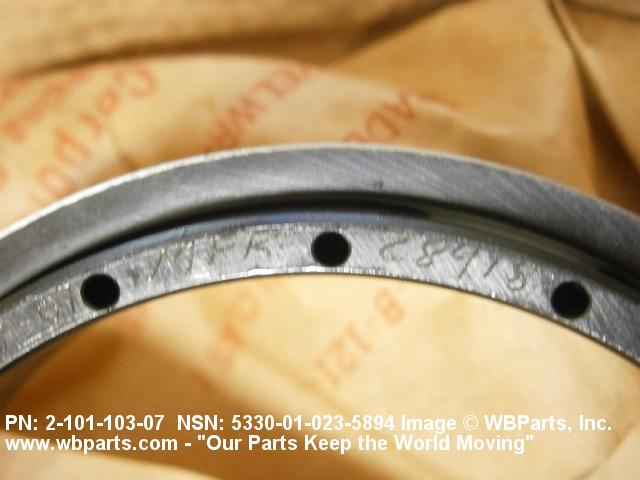

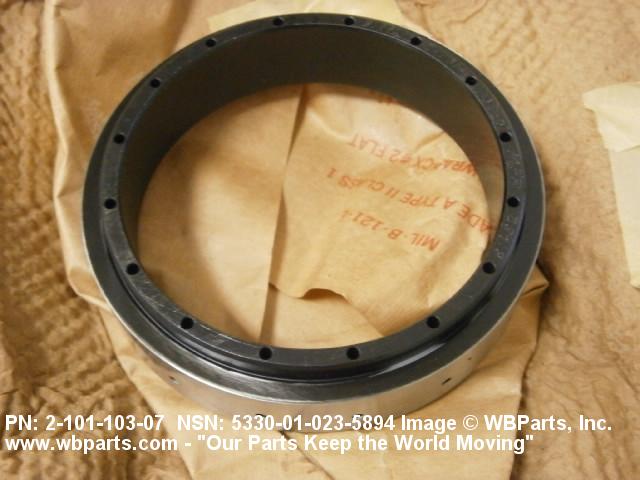

Drawings & Photos | NSN 5330-01-023-5894
Demand History | NSN 5330-01-023-5894
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-023-5894 | 2024-04-105 | 8 | DIBBS |
| 5330-01-023-5894 | 2021-03-77 | 5 | DIBBS |
| 5330-01-023-5894 | 2020-09-261 | 5 | DIBBS |
| 5330-01-023-5894 | 2020-06-160 | 5 | DIBBS |
| 5330-01-023-5894 | 2018-10-274 | 29 | DIBBS |
| 5330-01-023-5894 | 2018-09-263 | 29 | DIBBS |
| 5330-01-023-5894 | 2017-10-299 | 5 | DIBBS |
| 5330-01-023-5894 | 2017-10-291 | 5 | DIBBS |
| 5330-01-023-5894 | 2017-04-101 | 8 | DIBBS |
| 5330-01-023-5894 | 2017-04-93 | 8 | DIBBS |
| 5330-01-023-5894 | 2016-05-145 | 6 | DIBBS |
| 5330-01-023-5894 | 2016-05-137 | 6 | DIBBS |
| 5330-01-023-5894 | 2016-04-117 | 14 | DIBBS |
| 5330-01-023-5894 | 2016-04-109 | 14 | DIBBS |
| 5330-01-023-5894 | 2015-06-152 | 14 | DIBBS |
| 5330-01-023-5894 | 2015-05-139 | 14 | DIBBS |
| 5330-01-023-5894 | 2014-12-363 | 11 | DIBBS |
| 5330-01-023-5894 | 2014-12-352 | 11 | DIBBS |
| 5330-01-023-5894 | 2014-08-216 | 8 | DIBBS |
| 5330-01-023-5894 | 2014-07-205 | 8 | DIBBS |
| 5330-01-023-5894 | 2013-05-134 | 5 | DIBBS |
| 5330-01-023-5894 | 2012-06-163 | 10 | Sweden |
| 210110307 | 2012-03-80 | 5 | Sweden |
| 210110307 | 2012-03-79 | 5 | Sweden |
Cross Reference | NSN 5330-01-023-5894
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2-101-103-07 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-023-5894
Related Products | NSN 5330-01-023-5894
Technical Data | NSN 5330-01-023-5894
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AM6381 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | OXIDE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS2485 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | D105 FLANGE |
| CROSS-SECTIONAL HEIGHT | 0.936 INCHES MINIMUM AND 0.938 INCHES MAXIMUM |
| FLANGED BODY OUTSIDE DIAMETER | 3.5450 INCHES MINIMUM AND 3.5456 INCHES MAXIMUM |
| BODY RECESS DIAMETER | 3.805 INCHES MINIMUM AND 3.810 INCHES MAXIMUM |
| BODY RECESS DEPTH | 0.074 INCHES MINIMUM AND 0.076 INCHES MAXIMUM |
| CENTER HOLE DIAMETER | 3.1905 INCHES MINIMUM AND 3.1910 INCHES MAXIMUM |
| PERIPHERAL DIAMETER | 3.9290 INCHES MINIMUM AND 3.9300 INCHES MAXIMUM |
| ATTACHMENT METHOD | ROUND HOLE |
| ATTACHMENT FEATURE QUANTITY | 4 |
| ATTACHMENT HOLE DIAMETER | 0.164 INCHES NOMINAL |
| ATTACHMENT FEATURE CIRCLE DIAMETER | 3.500 INCHES NOMINAL SINGLE CIRCLE |
| MANUFACTURERS CODE | 99193 |
| DESIGN CONTROL REFERENCE | 2-101-103-07 |
Restrictions/Controls & Freight Information | NSN 5330-01-023-5894
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-023-5894
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
