NSN 5330-01-020-3915 LS4565220, LS4565-220, 01-020-3915
Product Details | PACKING RETAINER
5330-01-020-3915 An item designed to fit over a packing gland by mating with a surface of a second part which together will retain into a narrow groove or confined space the PACKING, PREFORMED or O-RING, or an item designed to fit over a rod or shaft, to mate with a stuffing box to confine PACKING MATERIAL. It may function as a static or dynamic seal retainer with the packing located on, around, or in the centerline direction of the rod or shaft axis. It may have holes or joints for mounting, be threaded or unthreaded. See also PACKING NUT and PACKING NUT, STUFFING TUBE.
Part Alternates: LS4565220, LS4565-220, 5330-01-020-3915, 01-020-3915, 5330010203915, 010203915
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 APR 1976 | 01-020-3915 | 13706 ( RETAINER, PACKING ) |

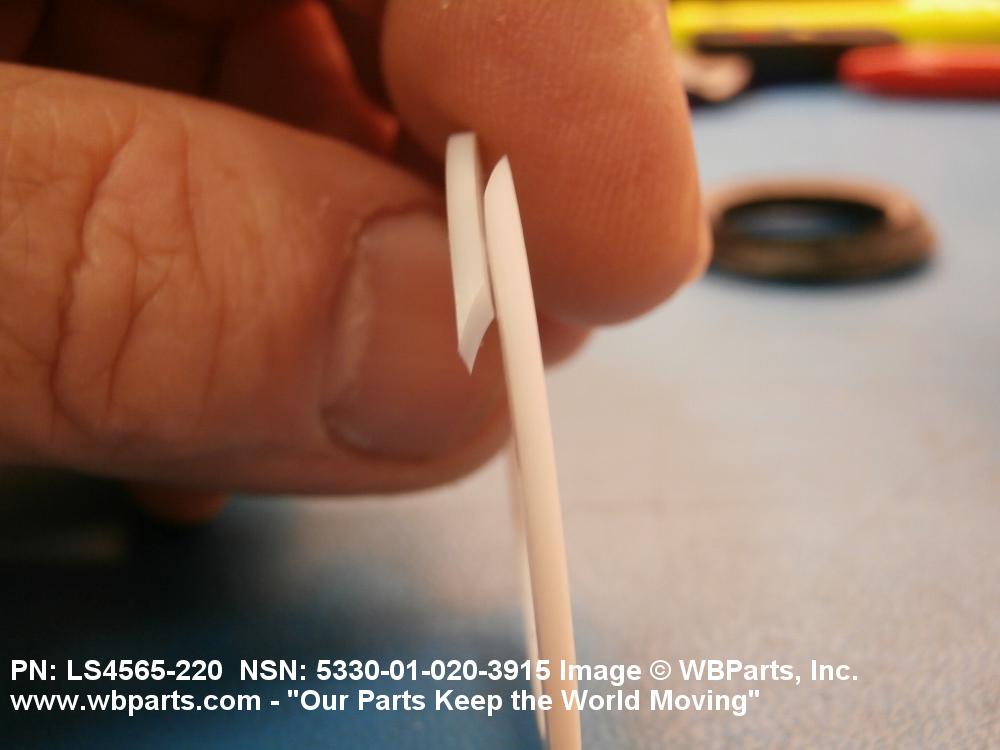

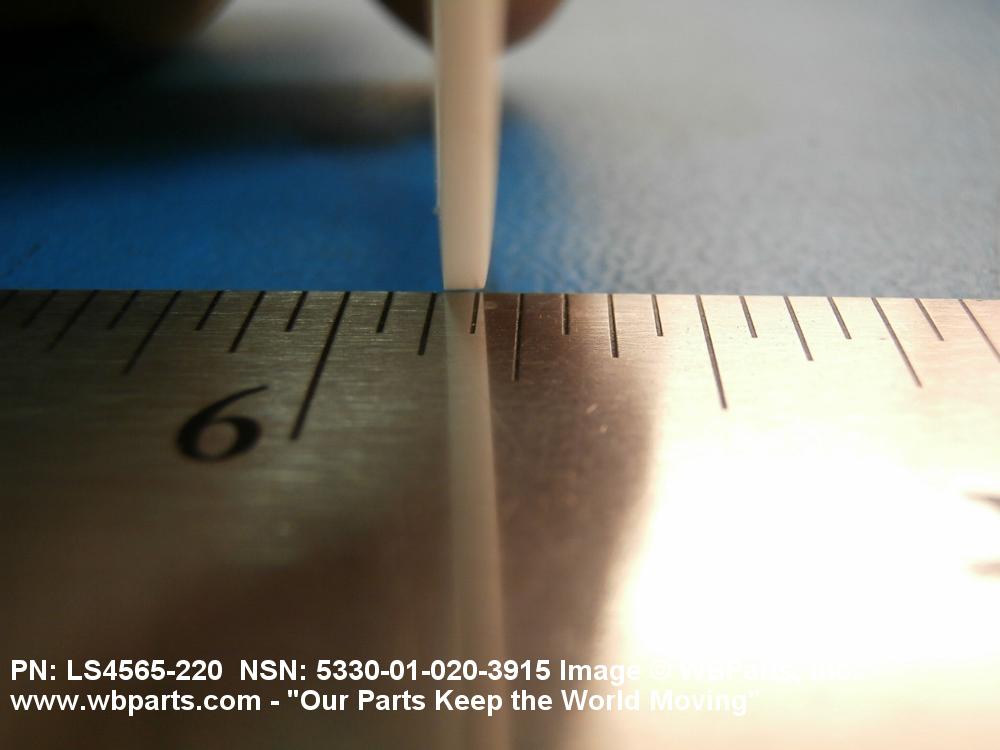

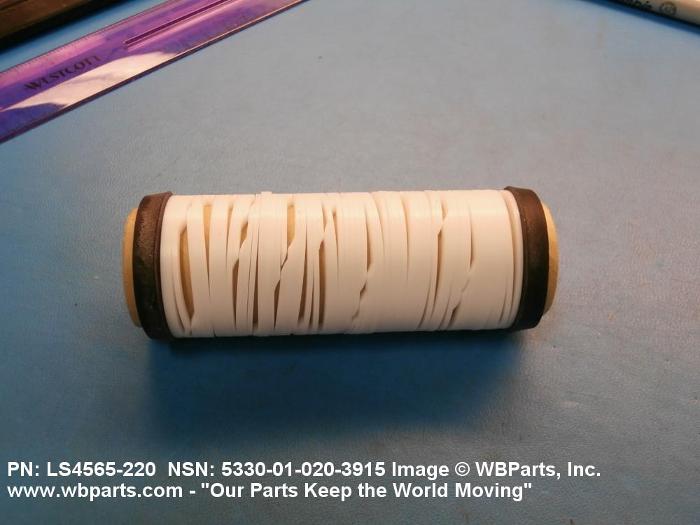

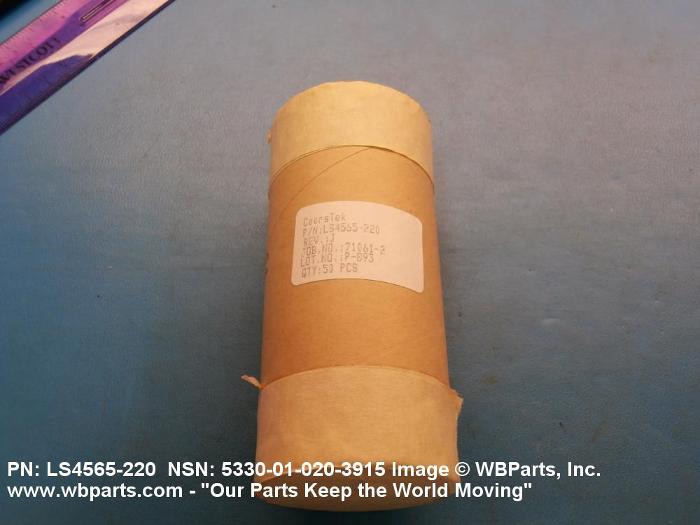

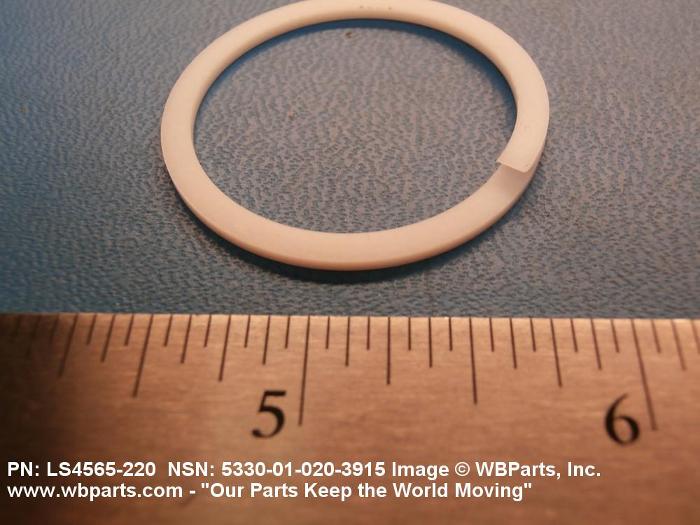

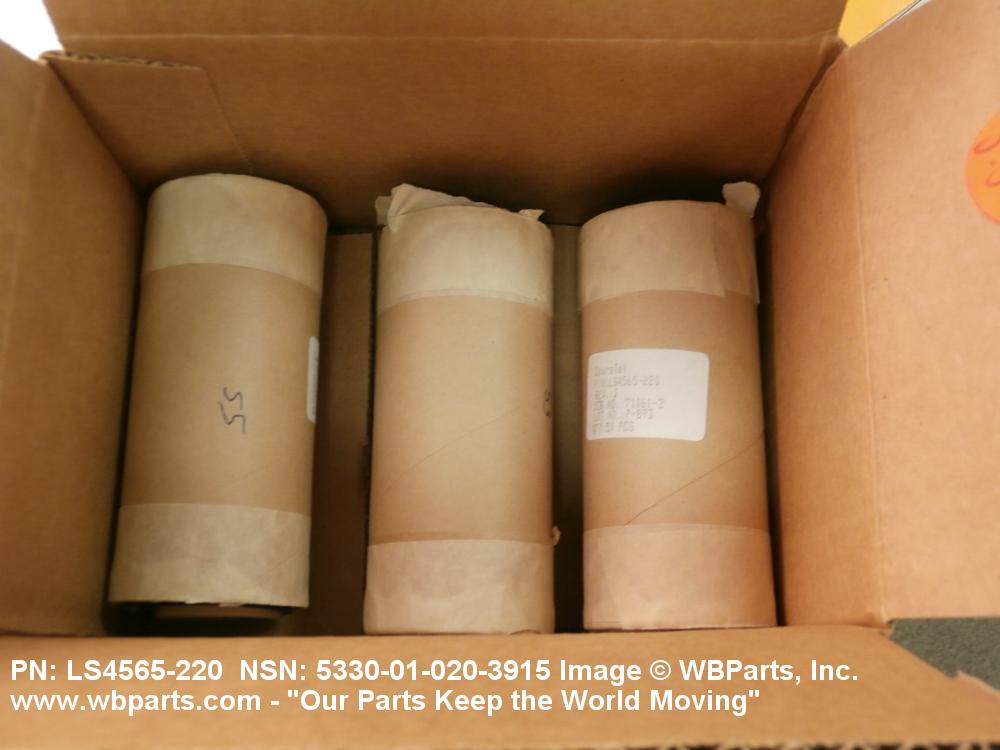

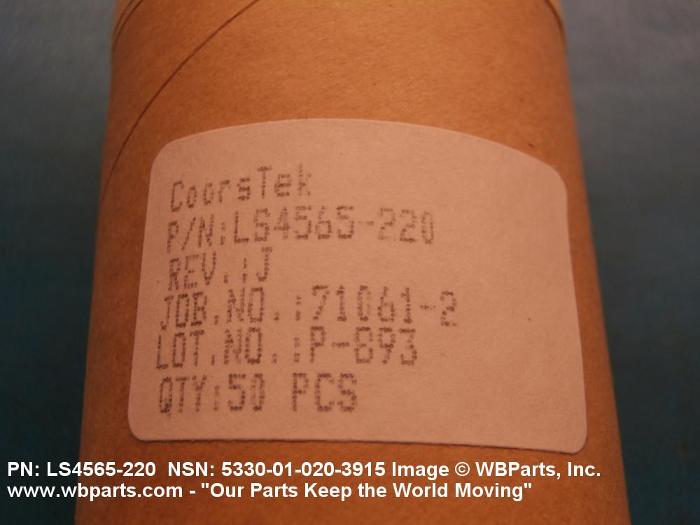

Drawings & Photos | NSN 5330-01-020-3915
Demand History | NSN 5330-01-020-3915
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| LS4565-220 | 2013-08-229 | 150 | Canada |
| LS4565220 | 2012-12-341 | 150 | United States |
Cross Reference | NSN 5330-01-020-3915
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LS4565-220 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-020-3915
Technical Data | NSN 5330-01-020-3915
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | D2 SQUARE/RECTANGULAR |
| CROSS-SECTIONAL HEIGHT | 0.050 INCHES MINIMUM AND 0.058 INCHES MAXIMUM |
| CENTER HOLE DIAMETER | 1.375 INCHES NOMINAL |
| PERIPHERAL DIAMETER | 1.615 INCHES MINIMUM AND 1.619 INCHES MAXIMUM |
| JOINT TYPE | SCARF-PERIPHERAL ONE SIDE |
Restrictions/Controls & Freight Information | NSN 5330-01-020-3915
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
