Product Details | PREFORMED PACKING

5330-00-983-0360 A circular shaped item with an aperture manufactured to predetermined dimensions and designed for use as a seal in stuffing boxes, packing nuts, and the like. It may be (1) any nonmetallic molded or formed ring (except solid (without joint) rings having a square or rectangular cross section); or (2) any shredded metal or metal foil type metallic or semimetallic rings. Excludes felt items but includes multimaterial items in which one of the materials is felt. For solid (without joints) nonmetallic items with a square or rectangular cross section, see WASHER (as modified) and GASKET. For rubber items specifically designed for weather-proofing doors, windows, chests, and the like see SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; and SEAL, NONMETALLIC, SPECIAL SHAPED SECTION. For circular (with aperature) nonmetallic items with a solid round cross-section see O-RING. Excludes CUP, COMPRESSION; GASKET; WASHER (as modified); and FELT, MECHANICAL, PREFORMED.

Part Alternates: 3241732328, 32-41732-328, 328FT160A, 7328FT1600000, 7328FT-160-0000, 5330-00-983-0360, 00-983-0360, 5330009830360, 009830360

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG) NSN Assign. NIIN
53 19 OCT 1966 00-983-0360

Drawings & Photos | NSN 5330-00-983-0360


Demand History | NSN 5330-00-983-0360

Part Number Request Date QTY Origin
328FT160A 2021-09-263 42 DIBBS
328FT160A 2021-09-252 42 DIBBS
5330-00-983-0360 2021-02-33 1 Malaysia
5330-00-983-0360 2018-02-40 110 DIBBS
5330-00-983-0360 2018-01-31 110 DIBBS
5330-00-983-0360 2012-11-320 48 DIBBS
5330-00-983-0360 2010-04-93 55 DIBBS
5330-00-983-0360 2009-09-264 200 DIBBS
5330-00-983-0360 2009-06-180 38 DIBBS

Cross Reference | NSN 5330-00-983-0360

Part Number Cage Code Manufacturer
32-41732-328 76301 BOEING COMPANY, THE DBA BOEING
328FT160A 5F573 GREENE, TWEED & CO., INC.
328FT160A 72902 PALMETTO INC
7328FT-160-0000 C3125 GREENE TWEED & CO. GMBHDICHTUNGSSYSTEME

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5330-00-983-0360

Technical Data | NSN 5330-00-983-0360

Characteristic Specifications
MATERIAL RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION MIL-P-25732 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL
HARDNESS RATING 65.0 SHORE DUROMETER A MINIMUM AND 71.0 SHORE DUROMETER A MAXIMUM OVERALL

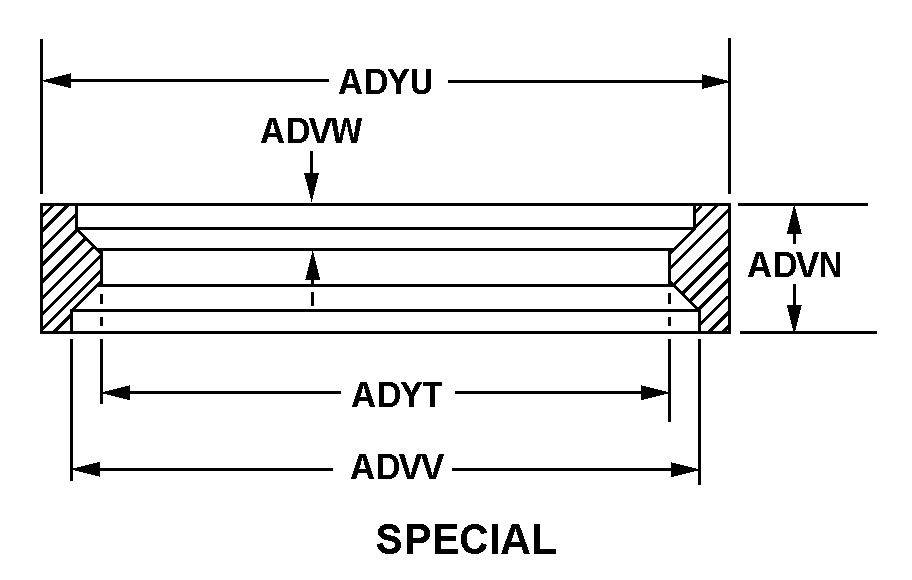

CROSS-SECTIONAL SHAPE STYLE D98 SPECIAL
CROSS-SECTIONAL HEIGHT 0.411 INCHES MINIMUM AND 0.421 INCHES MAXIMUM
BODY RECESS DIAMETER 2.166 INCHES MINIMUM AND 2.174 INCHES MAXIMUM
BODY RECESS DEPTH 0.121 INCHES NOMINAL
CENTER HOLE DIAMETER 1.850 INCHES NOMINAL
PERIPHERAL DIAMETER 2.260 INCHES MINIMUM AND 2.280 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5330-00-983-0360

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 194120 WASHERS/GASKETS/PCKG DVCS NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 596 unknown
Originating Activity Code KE Naval ICP
Philadelphia, PA 19111
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5330-00-983-0360

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeSXSX:AF SICA RESIDUAL MMAC-OC-ALC
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
