NSN 5330-00-973-8022 513294, 00-973-8022, 009738022
Product Details | METAL SEAL RING
5330-00-973-8022 A circular shaped item designed to be installed in a specially prepared groove or counterbore to provide a low pressure seal. It may be supplied in various cross-sectional shapes and is cut through at one point to allow for installation and fitting. Excludes items whose primary function is to provide sealing, wiping, or wearing surface capabilities for piston configurations. See also RING, PISTON and RING, WIPER.
Part Alternates: 513294, 5330-00-973-8022, 00-973-8022, 5330009738022, 009738022
Hardware and Abrasives | Packing and Gasket Materials
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 05 OCT 1966 | 00-973-8022 | 21205 ( SEAL RING, METAL ) |
Cross Reference | NSN 5330-00-973-8022
Part Number | Cage Code | Manufacturer |
---|---|---|
513294 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5330-00-973-8022
Related Products | NSN 5330-00-973-8022
Technical Data | NSN 5330-00-973-8022
Characteristic | Specifications |
---|---|
MATERIAL | STEEL OVERALL |
MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5613 ASSN STD 1ST MATERIAL RESPONSE OVERALL |
SURFACE TREATMENT | CHROMIUM OVERALL |
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2406 ASSN STD 1ST TREATMENT RESPONSE OVERALL |
METALLIC HARDNESS RATING | 30.0 MINIMUM ROCKWELL C AND 38.0 MAXIMUM ROCKWELL C |

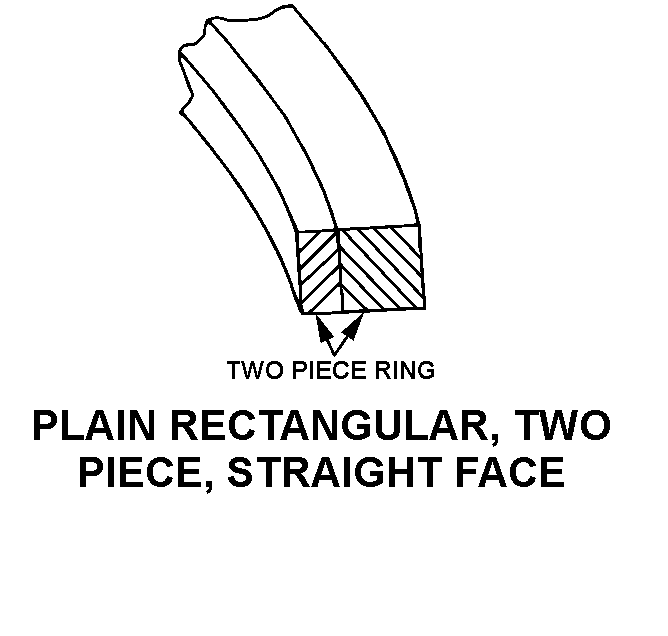

CROSS-SECTIONAL SHAPE STYLE | A79 PLAIN RECTANGULAR, TWO PIECE, STRAIGHT FACE |
JOINT STYLE | 3 STEP JOINT |
RING STYLE | 5 EXPANDING CONCENTRIC |
OUTSIDE DIAMETER | 2.130 INCHES NOMINAL |
RADIAL WALL THICKNESS | 0.0860 INCHES MINIMUM AND 0.0960 INCHES MAXIMUM |
OVERALL WIDTH | 0.0930 INCHES MINIMUM AND 0.0940 INCHES MAXIMUM |
III FSC APPLICATION DATA | FUEL SYSTEM,AIRCRAFT ENGINE |
MANUFACTURERS CODE | 77445 |
DESIGN CONTROL REFERENCE | 513294 |
