Product Details | PLAIN ENCASED SEAL

5330-00-962-1707 A pliable rubber, felt, leather, or composition ring-shaped element, split or solid; with or without spring or spreader, having a metal shell on all or a portion of at least two of the outer surfaces. It may be designed to be either bolt mounted or pressmounted between fixed and moveable parts to form a tight and effective seal by the pressure of the spring or spreader or the resiliency inherent in the element material. Excludes PACKING WITH RETAINER.

Part Alternates: CAP2023, CAP202-3, 2023, 202-3, 5330-00-962-1707, 00-962-1707, 5330009621707, 009621707

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1962 00-962-1707

Drawings & Photos | NSN 5330-00-962-1707


Demand History | NSN 5330-00-962-1707

Part Number Request Date QTY Origin
2023 2021-04-116 2 US

Cross Reference | NSN 5330-00-962-1707

Part Number Cage Code Manufacturer
202-3 75165 JOHNS MANVILLE INTL
CAP202-3 75165 JOHNS MANVILLE INTL
CAP202-3 92798 THERMAL CERAMICS INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5330-00-962-1707

Technical Data | NSN 5330-00-962-1707

Characteristic Specifications
MATERIAL ASBESTOS SEALING ELEMENT
CASE STYLE 3 SHOULDERED

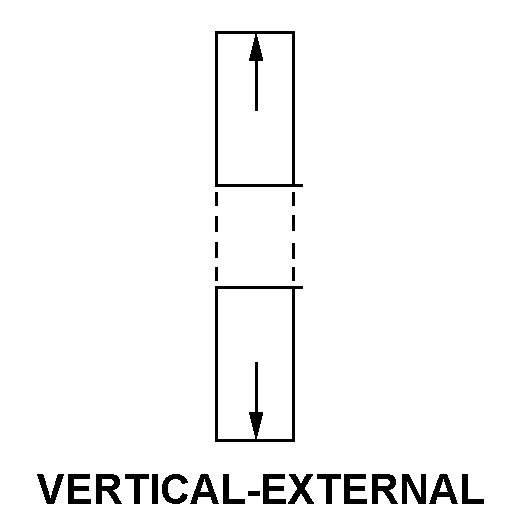

SEALING ELEMENT STYLE 16 VERTICAL-EXTERNAL
SEAL WIDTH 0.625 INCHES NOMINAL
ACCOMMODATED SHAFT DIAMETER 0.750 INCHES NOMINAL
MANUFACTURERS CODE 92798
DESIGN CONTROL REFERENCE CAP202-3

Restrictions/Controls & Freight Information | NSN 5330-00-962-1707

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 194120 WASHERS/GASKETS/PCKG DVCS NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 596 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5330-00-962-1707

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation CodeBFSU:F-4 (PHANTOM II)
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesYTERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
