NSN 5330-00-956-1527 594634, 594-634, 60594
Product Details | METAL SEAL RING
5330-00-956-1527 A circular shaped item designed to be installed in a specially prepared groove or counterbore to provide a low pressure seal. It may be supplied in various cross-sectional shapes and is cut through at one point to allow for installation and fitting. Excludes items whose primary function is to provide sealing, wiping, or wearing surface capabilities for piston configurations. See also RING, PISTON and RING, WIPER.
Part Alternates: 594634, 594-634, 60594, 60-594, 60594PC634, 60-594PC634, 60606, 60-606, 60606PC634, 60-606PC634, 60656, 60-656, 60656PC634, 60-656PC634, 5330-00-956-1527, 00-956-1527, 5330009561527, 009561527
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 MAY 1966 | 00-956-1527 | 21205 ( SEAL RING, METAL ) |
Drawings & Photos | NSN 5330-00-956-1527
Cross Reference | NSN 5330-00-956-1527
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 594-634 | 27235 | HARDIE-TYNES CO., INC. |
| 60-594 | 27235 | HARDIE-TYNES CO., INC. |
| 60-594PC634 | 27235 | HARDIE-TYNES CO., INC. |
| 60-606 | 27235 | HARDIE-TYNES CO., INC. |
| 60-606PC634 | 27235 | HARDIE-TYNES CO., INC. |
| 60-656 | 27235 | HARDIE-TYNES CO., INC. |
| 60-656PC634 | 27235 | HARDIE-TYNES CO., INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-956-1527
Technical Data | NSN 5330-00-956-1527
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-B-16261 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| METALLIC HARDNESS RATING | NOT RATED |

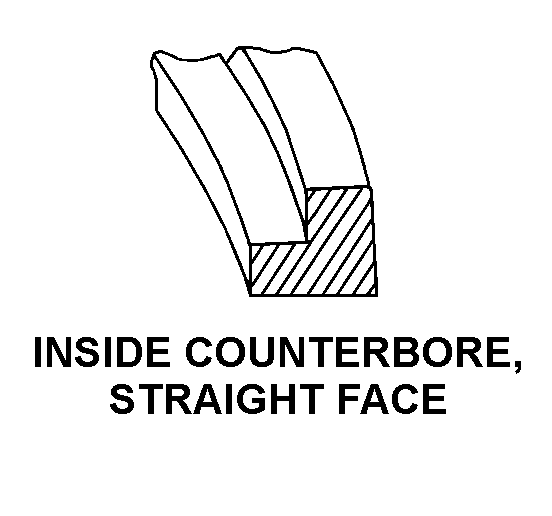

| CROSS-SECTIONAL SHAPE STYLE | A5 INSIDE COUNTERBORE, STRAIGHT FACE |
| JOINT STYLE | 1 VERTICAL JOINT |
| RING STYLE | 3 CONTRACTING CONCENTRIC |
| INSIDE DIAMETER | 2.258 INCHES NOMINAL |
| RADIAL WALL THICKNESS | 1.7470 INCHES NOMINAL |
| OVERALL WIDTH | 0.2170 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5330-00-956-1527
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-956-1527
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
