NSN 5330-00-949-1520 298D137A02, 298D137A05, 715J051PC19
Product Details | METAL SEAL RING
5330-00-949-1520 A circular shaped item designed to be installed in a specially prepared groove or counterbore to provide a low pressure seal. It may be supplied in various cross-sectional shapes and is cut through at one point to allow for installation and fitting. Excludes items whose primary function is to provide sealing, wiping, or wearing surface capabilities for piston configurations. See also RING, PISTON and RING, WIPER.
Part Alternates: 298D137A02, 298D137A05, 715J051PC19, 5330-00-949-1520, 00-949-1520, 5330009491520, 009491520
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 APR 1966 | 00-949-1520 | 21205 ( SEAL RING, METAL ) |
Drawings & Photos | NSN 5330-00-949-1520
Cross Reference | NSN 5330-00-949-1520
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 298D137A02 | 90099 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA NORTHROP GRUMMAN MARINE SYSTEMS |
| 298D137A05 | 90099 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA NORTHROP GRUMMAN MARINE SYSTEMS |
| 715J051PC19 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 715J051PC19 | 88657 | WESTINGHOUSE ELECTRIC CORP POWER GENERATION-TURBINE DIV |
| 715J051PC19 | 90099 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA NORTHROP GRUMMAN MARINE SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-949-1520
Technical Data | NSN 5330-00-949-1520
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-C-15345,ALLOY 7 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| METALLIC HARDNESS RATING | NOT RATED |

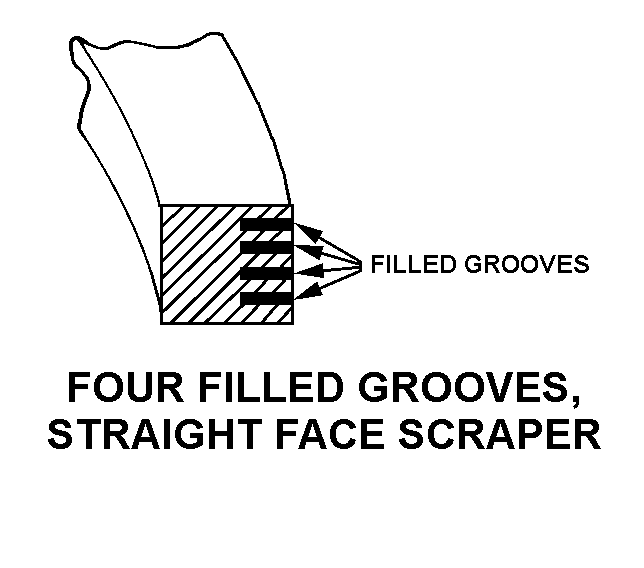

| CROSS-SECTIONAL SHAPE STYLE | A70 FOUR FILLED GROOVES, STRAIGHT FACE SCRAPER |
| JOINT STYLE | 1 VERTICAL JOINT |
| RING STYLE | 5 EXPANDING CONCENTRIC |
| OUTSIDE DIAMETER | 11.000 INCHES NOMINAL |
| RADIAL WALL THICKNESS | 2.2920 INCHES NOMINAL |
| OVERALL WIDTH | 1.1250 INCHES NOMINAL |
| III FSC APPLICATION DATA | STEAM TURBINE |
| MANUFACTURERS CODE | 90099 |
| DESIGN CONTROL REFERENCE | 298D137A02 |
