Product Details | PREFORMED PACKING

5330-00-930-3258 A circular shaped item with an aperture manufactured to predetermined dimensions and designed for use as a seal in stuffing boxes, packing nuts, and the like. It may be (1) any nonmetallic molded or formed ring (except solid (without joint) rings having a square or rectangular cross section); or (2) any shredded metal or metal foil type metallic or semimetallic rings. Excludes felt items but includes multimaterial items in which one of the materials is felt. For solid (without joints) nonmetallic items with a square or rectangular cross section, see WASHER (as modified) and GASKET. For rubber items specifically designed for weather-proofing doors, windows, chests, and the like see SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; and SEAL, NONMETALLIC, SPECIAL SHAPED SECTION. For circular (with aperature) nonmetallic items with a solid round cross-section see O-RING. Excludes CUP, COMPRESSION; GASKET; WASHER (as modified); and FELT, MECHANICAL, PREFORMED.

Part Alternates: 5198248, 5330-00-930-3258, 00-930-3258, 5330009303258, 009303258

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG) NSN Assign. NIIN
53 11 MAY 1966 00-930-3258

Drawings & Photos | NSN 5330-00-930-3258


Cross Reference | NSN 5330-00-930-3258

Part Number Cage Code Manufacturer
5198248 24617 GENERAL MOTORS CORP
5198248 72582 MTU AMERICA INC.
5198248 7X677 GENERAL MOTORS LLC DBA GENERAL MOTORS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5330-00-930-3258

Technical Data | NSN 5330-00-930-3258

Characteristic Specifications

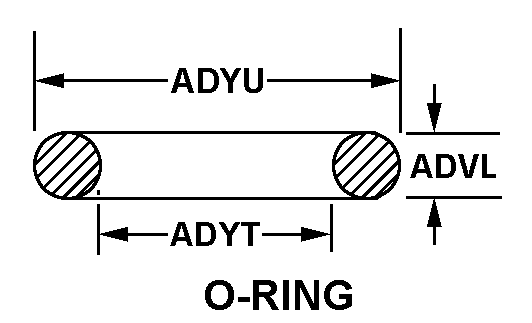

CROSS-SECTIONAL SHAPE STYLE D1 O-RING
CROSS-SECTIONAL HEIGHT 0.139 INCHES NOMINAL
CENTER HOLE DIAMETER 8.984 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 5330-00-930-3258

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 095190 HARDWARE, NOI SUB 9
Less than car load rating Q 70
Less than truck load rating Q 70.0
Water commodity Code 713 unknown
Originating Activity Code BE
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
