NSN 5330-00-911-0693 219A121, 00-911-0693, 009110693
Product Details | PACKING WITH RETAINER
5330-00-911-0693 An item composed of a compressible nonmetallic ring which may be loosely fitted into a noncompressible retaining ring, or may be of one piece construction with the compressible ring molded and/or mechanically connected to the retainer. It is specifically designed to form a fluid tight seal when compressed by a packing nut, gland, etc., between fixed surfaces and a cylindrical item passing through it. Excludes SEAL, PLAIN, ENCASED.
Part Alternates: 219A121, 5330-00-911-0693, 00-911-0693, 5330009110693, 009110693
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-911-0693 | 05680 ( PACKING WITH RETAINER ) |

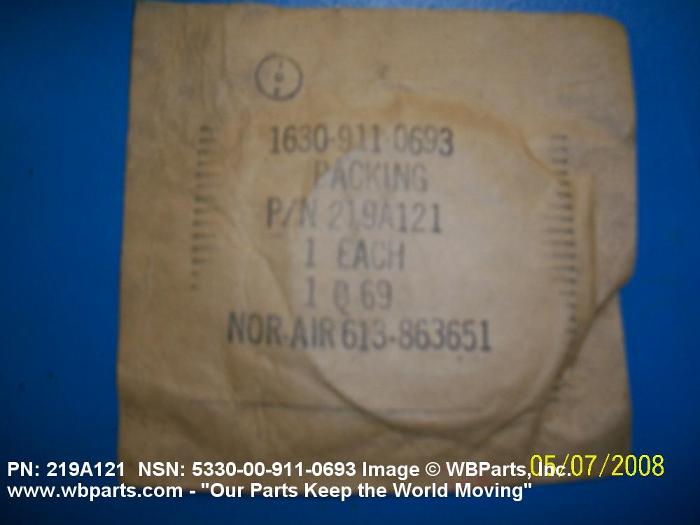

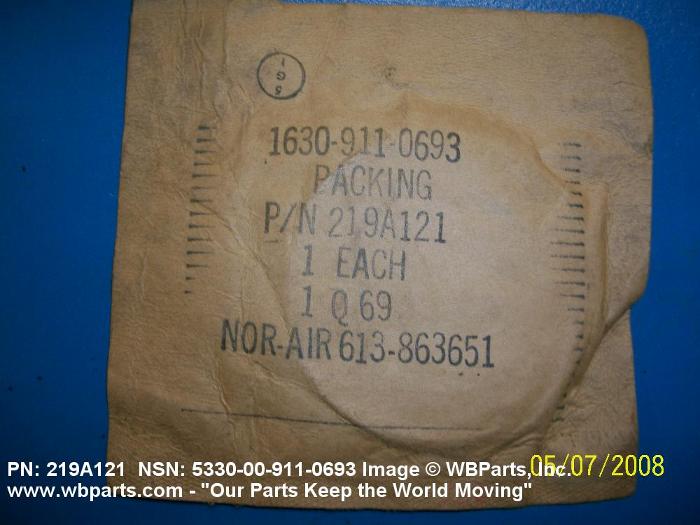

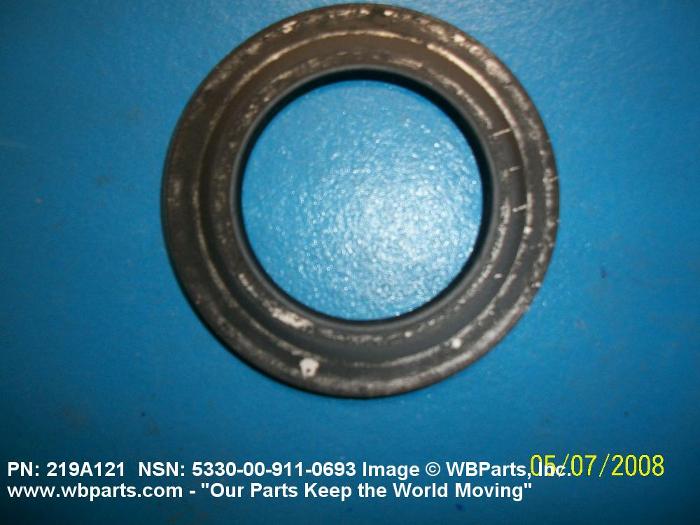

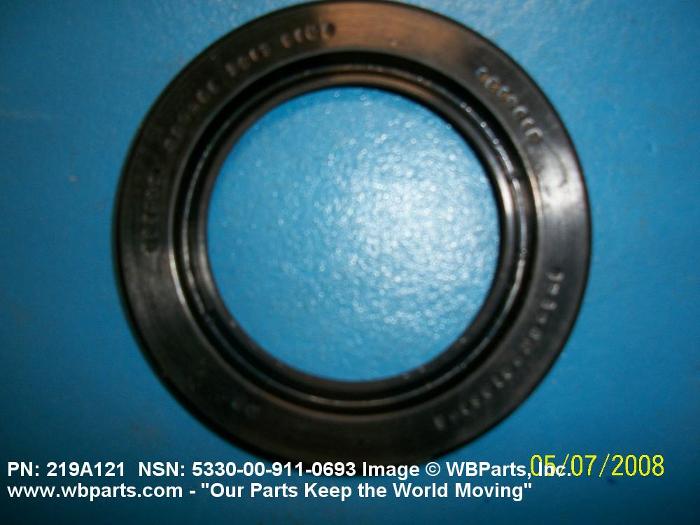

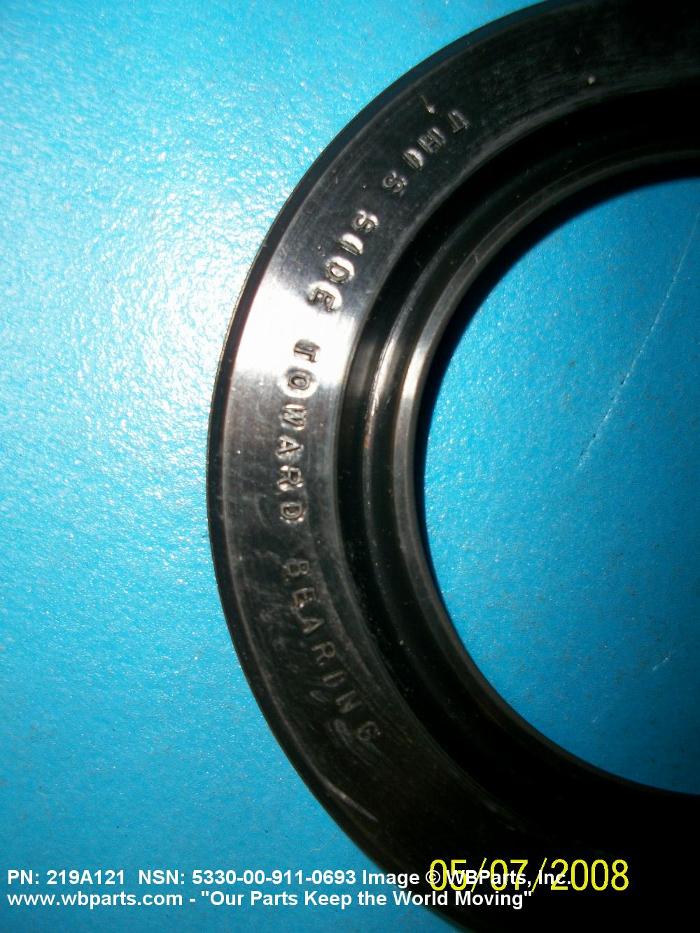

Drawings & Photos | NSN 5330-00-911-0693
Demand History | NSN 5330-00-911-0693
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 219A121 | 2024-02-35 | 11 | DIBBS |
| 219A121 | 2023-01-16 | 12 | DIBBS |
| 219A121 | 2022-03-89 | 5 | DIBBS |
| 219A121 | 2022-01-25 | 10 | DIBBS |
| 219A121 | 2022-01-12 | 6 | DIBBS |
| 219A121 | 2021-09-263 | 15 | DIBBS |
| 219A121 | 2021-09-255 | 15 | DIBBS |
| 219A121 | 2021-03-80 | 10 | DIBBS |
| 219A121 | 2019-10-282 | 5 | DIBBS |
| 219A121 | 2019-10-274 | 5 | DIBBS |
| 5330-00-911-0693 | 2015-12-358 | 35 | DIBBS |
| 5330-00-911-0693 | 2015-12-350 | 35 | DIBBS |
| 5330-00-911-0693 | 2015-03-78 | 34 | DIBBS |
| 5330-00-911-0693 | 2014-10-281 | 27 | DIBBS |
| 5330-00-911-0693 | 2014-07-191 | 25 | DIBBS |
| 219A121 | 2013-10-277 | 6 | US |
| 5330-00-911-0693 | 2012-08-216 | 18 | DIBBS |
| 5330-00-911-0693 | 2012-06-181 | 18 | DIBBS |
| 5330-00-911-0693 | 2012-04-93 | 18 | DIBBS |
| 219A121 | 2011-06-167 | 4 | United States |
| 5330-00-911-0693 | 2010-11-308 | 50 | DIBBS |
| 5330-00-911-0693 | 2010-09-251 | 4 | DIBBS |
| 5330-00-911-0693 | 2010-08-239 | 16 | DIBBS |
| 5330-00-911-0693 | 2010-08-215 | 9 | DIBBS |
| 219A121 | 2010-02-34 | 10 | United States |
| 5330-00-911-0693 | 2010-01-25 | 10 | DIBBS |
| 5330-00-911-0693 | 2008-01-17 | 15 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-00-911-0693
Related Products | NSN 5330-00-911-0693
Technical Data | NSN 5330-00-911-0693
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR PACKING STEEL CORROSION RESISTING RETAINER |
| CONSTRUCTION | ONE-PIECE |
| OUTSIDE DIAMETER | 3.217 INCHES MINIMUM AND 3.242 INCHES MAXIMUM |
| PACKING INSIDE DIAMETER | 1.990 INCHES NOMINAL |
| PACKING RING CROSS-SECTIONAL DIAMETER | 0.178 INCHES MINIMUM AND 0.198 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | F-5 ACFT,MLG WHEEL |
| III FSC APPLICATION DATA | WHEEL AIRCRAFT |
| MANUFACTURERS CODE | 23233 |
| DESIGN CONTROL REFERENCE | 219A121 |
Restrictions/Controls & Freight Information | NSN 5330-00-911-0693
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | S | 60 months |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194050 | GASKETS/RINGS PLUMBING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-911-0693
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | LE | SU:LANDING GEAR SYSTEMS AND COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | S | 60 months |
| Purchasing | QTY UOM |
1 EA : Each |
