NSN 5330-00-840-8945 280036, 44551230036, 4455123-0036
Product Details | PREFORMED PACKING
5330-00-840-8945 A circular shaped item with an aperture manufactured to predetermined dimensions and designed for use as a seal in stuffing boxes, packing nuts, and the like. It may be (1) any nonmetallic molded or formed ring (except solid (without joint) rings having a square or rectangular cross section); or (2) any shredded metal or metal foil type metallic or semimetallic rings. Excludes felt items but includes multimaterial items in which one of the materials is felt. For solid (without joints) nonmetallic items with a square or rectangular cross section, see WASHER (as modified) and GASKET. For rubber items specifically designed for weather-proofing doors, windows, chests, and the like see SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; and SEAL, NONMETALLIC, SPECIAL SHAPED SECTION. For circular (with aperature) nonmetallic items with a solid round cross-section see O-RING. Excludes CUP, COMPRESSION; GASKET; WASHER (as modified); and FELT, MECHANICAL, PREFORMED.
Part Alternates: 280036, 44551230036, 4455123-0036, 4505126, 4505-126, 5330-00-840-8945, 00-840-8945, 5330008408945, 008408945
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 DEC 1966 | 00-840-8945 | 04521 ( PACKING, PREFORMED ) |
Drawings & Photos | NSN 5330-00-840-8945
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-840-8945
Technical Data | NSN 5330-00-840-8945
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE OVERALL |
| COLOR | WHITE |

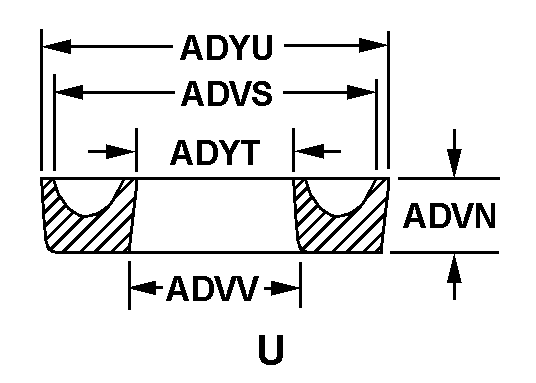

| CROSS-SECTIONAL SHAPE STYLE | D100 U |
| CROSS-SECTIONAL HEIGHT | 0.125 INCHES NOMINAL |
| LIP INSIDE DIAMETER | 0.406 INCHES NOMINAL |
| BODY RECESS DIAMETER | 2.250 INCHES NOMINAL |
| CENTER HOLE DIAMETER | 2.281 INCHES NOMINAL |
| PERIPHERAL DIAMETER | 2.500 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5330-00-840-8945
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-840-8945
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
