NSN 5330-00-830-1199 2075222364, 207-5-2223-64, 207C5
Product Details | NONMETALLIC CHANNEL SEAL
5330-00-830-1199 An item fabricated from NONMETALLIC CHANNEL. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items except for molded corners, end cut(s), and mounting facilities, such as mounting hole(s), slot(s), press fit buttons, and the like, must be one continuous cross section. It may have fabric, cord, or metal reinforcement. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes GASKET; GROMMET, NONMETALLIC; and PACKING, PREFORMED. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC CHANNEL.
Part Alternates: 2075222364, 207-5-2223-64, 207C5, 207C5-22 23-64, 207C5222364, 207F5, 5330-00-830-1199, 00-830-1199, 5330008301199, 008301199
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-830-1199 | 32846 ( SEAL, NONMETALLIC CHANNEL ) |
Drawings & Photos | NSN 5330-00-830-1199
Demand History | NSN 5330-00-830-1199
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-830-1199 | 2018-10-281 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-830-1199
Technical Data | NSN 5330-00-830-1199
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC OVERALL |
| CONSTRUCTION | SOLID |

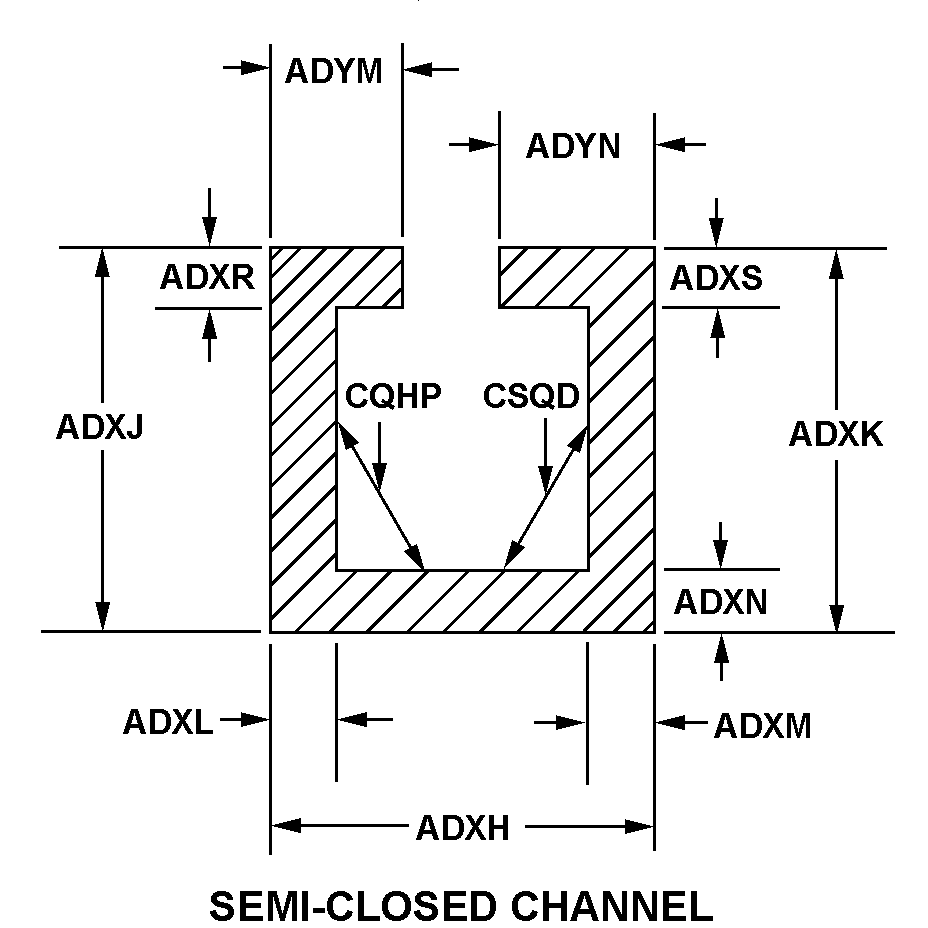

| CROSS-SECTIONAL SHAPE STYLE | K5 SEMI-CLOSED CHANNEL |
| WEB WIDTH | 0.062 INCHES NOMINAL |
| LEFT SIDE FLANGE HEIGHT | 0.359 INCHES NOMINAL |
| RIGHT SIDE FLANGE HEIGHT | 0.359 INCHES NOMINAL |
| LEFT SIDE FLANGE THICKNESS | 0.141 INCHES NOMINAL |
| RIGHT SIDE FLANGE THICKNESS | 0.141 INCHES NOMINAL |
| WEB THICKNESS | 0.125 INCHES NOMINAL |
| LEFT SIDE TOP FLANGE THICKNESS | 0.125 INCHES NOMINAL |
| RIGHT SIDE TOP FLANGE THICKNESS | 0.125 INCHES NOMINAL |
| LEFT SIDE TOP FLANGE WIDTH | 0.375 INCHES NOMINAL |
| RIGHT SIDE TOP FLANGE WIDTH | 0.375 INCHES NOMINAL |
| LEFT INSIDE ANGLE | 90.0 DEGREES NOMINAL |
| RIGHT INSIDE ANGLE | 90.0 DEGREES NOMINAL |
| OVERALL LENGTH | 22.094 INCHES NOMINAL |
| LEFT TIP STYLE | K4A LEFT FULL RADIUS |
| LEFT TIP RADIUS | 0.062 INCHES NOMINAL |
| RIGHT TIP RELATIONSHIP WITH LEFT TIP | IDENTICAL |
| RIGHT TIP RADIUS | 0.062 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5330-00-830-1199
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-830-1199
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
