NSN 5330-00-828-5970 435463, 435468, 435473

Product Details | PLAIN ENCASED SEAL

5330-00-828-5970 A pliable rubber, felt, leather, or composition ring-shaped element, split or solid; with or without spring or spreader, having a metal shell on all or a portion of at least two of the outer surfaces. It may be designed to be either bolt mounted or pressmounted between fixed and moveable parts to form a tight and effective seal by the pressure of the spring or spreader or the resiliency inherent in the element material. Excludes PACKING WITH RETAINER.

Part Alternates: 435463, 435468, 435473, 508667, 50866737, 508667-37 , 730372, 730378, 5330-00-828-5970, 00-828-5970, 5330008285970, 008285970

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-828-5970	04214 ( SEAL, PLAIN ENCASED )

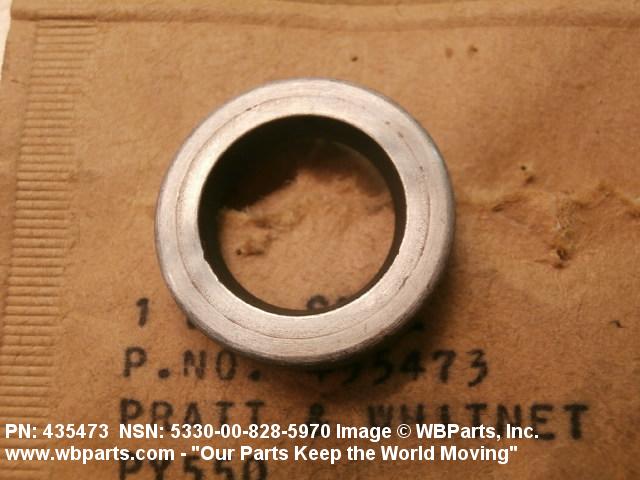

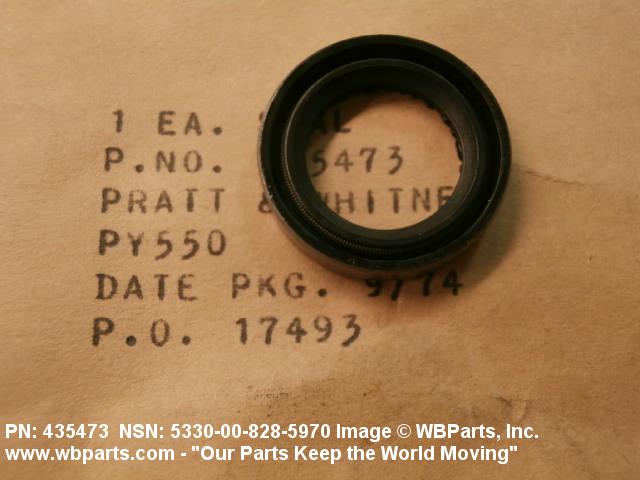

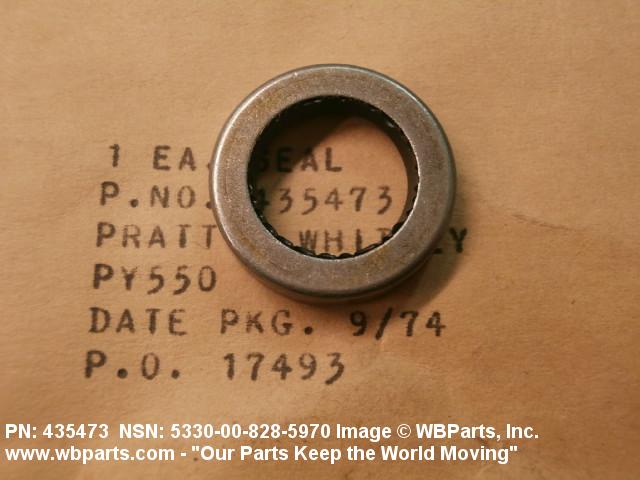

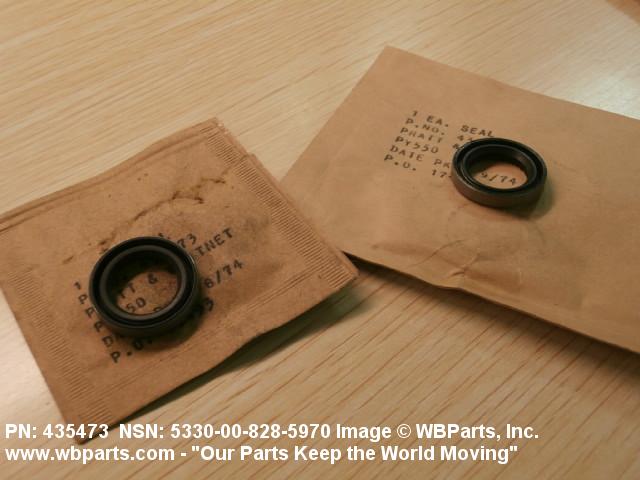

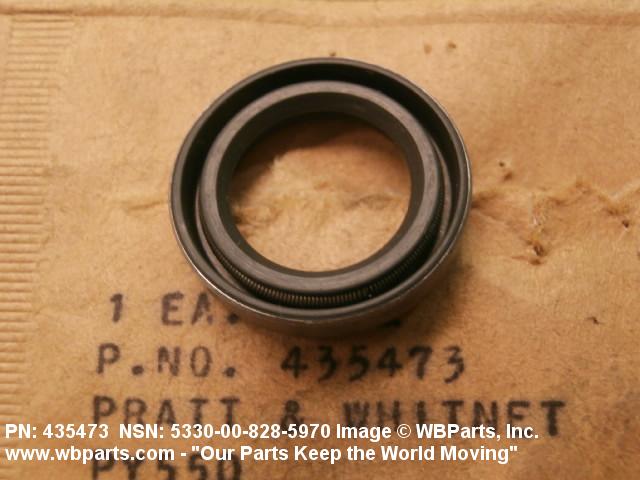

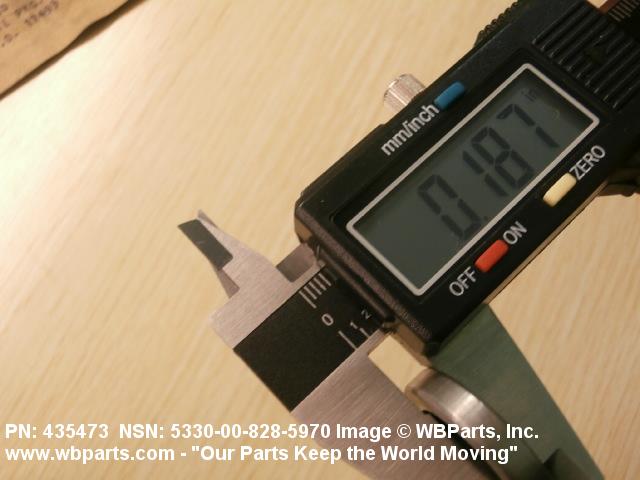

Drawings & Photos | NSN 5330-00-828-5970

Part Number	Request Date	QTY	Origin
5330-00-828-5970	2018-03-63	441	DIBBS
5330-00-828-5970	2018-01-15	120	DIBBS
5330-00-828-5970	2017-05-144	96	DIBBS
5330-00-828-5970	2015-04-110	5	us
5330-00-828-5970	2015-02-40	5	us
730372	2014-10-294	6	Malaysia
730372	2014-10-280	10	us
435463	2014-07-210	50	IE
730372	2014-06-156	60	United States
435463	2014-04-112	12	United States
435468	2014-04-112	12	United States
435473	2014-04-112	12	United States
5330-00-828-5970	2014-04-112	12	United States
730378	2014-04-112	12	United States
5330-00-828-5970	2012-01-25	150	DIBBS
5330-00-828-5970	2011-10-292	300	DIBBS
5330-00-828-5970	2011-08-229	300	DIBBS
5330-00-828-5970	2011-07-185	5	United States
5330-00-828-5970	2011-07-185	3	United States
5330-00-828-5970	2009-05-123	70	us
5330-00-828-5970	2009-01-27	70	us

Cross Reference | NSN 5330-00-828-5970

Part Number	Cage Code	Manufacturer
435463	77445	UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS
435463	80201	SKF USA INC. DBA SKF AEROSPACE SEALING SOLUTIONS
435463	S0554	TOKYO JUDOGI KOGYO CO.
435468	77445	UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS
435473	77445	UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS
508667	80201	SKF USA INC. DBA SKF AEROSPACE SEALING SOLUTIONS
508667-37	80201	SKF USA INC. DBA SKF AEROSPACE SEALING SOLUTIONS
730372	77445	UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS
730378	77445	UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5330-00-828-5970

Compare

Related Products | NSN 5330-00-828-5970

5330-00-828-5971, 5330-00-828-5972, 5330-00-828-5973, 5330-00-828-6284, 5330-00-828-6551

Technical Data | NSN 5330-00-828-5970

Characteristic	Specifications
MATERIAL	STEEL CASE RUBBER SYNTHETIC SEALING ELEMENT
CASE STYLE	1 SQUARE
SEALING ELEMENT STYLE	2 VERTICAL

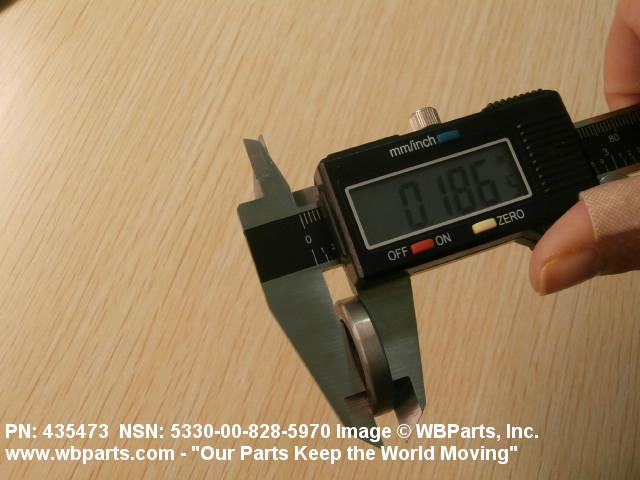

SEAL WIDTH	0.172 INCHES MINIMUM AND 0.204 INCHES MAXIMUM
ATTACHMENT METHOD	CEMENTED
ACCOMMODATED SHAFT MAXIMUM RATED SPEED	6500 FEET PER MINUTE

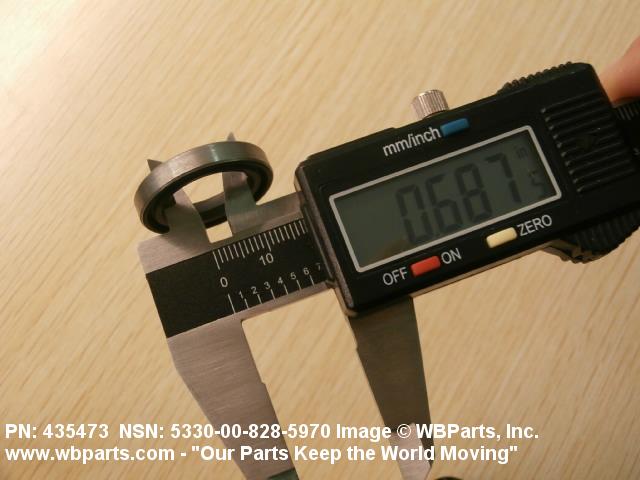

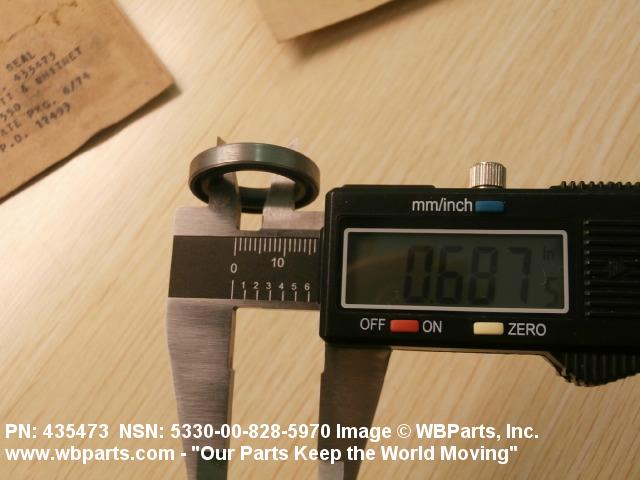

ACCOMMODATED SHAFT DIAMETER	0.687 INCHES NOMINAL
HOUSING BORE DIAMETER	1.060 INCHES MINIMUM AND 1.064 INCHES MAXIMUM
III END ITEM IDENTIFICATION	W/S: ENGINE, AIRCRAFT TF33-P-3/5/9 (C/EC-135, B-52H); AIRCRAFT, (AC-130H, MC-130H, EC-130E, HC-130); ENGINE, AIRCRAFT, TF-33-P-7 (C-141A/B); AIRCRAFT, STRATOFORTRESS B-52; ENGINE, AIRCRAFT TF33-PW-102 (C-135E, EC-135H/K/P); JOINT STARS TARGET RADAR SYSTEM; AIRCRAFT, STRTOLIFTER C-135; ENGINE, AIRCRAFTM TF33-100 (E3A/B/C); AIRCRAFT, STARLIFTER C-141; AIRCRAFT, C-18A, EC-18B
III FSC APPLICATION DATA	ENGINE,ACFT,TURBO&FAN

Restrictions/Controls & Freight Information | NSN 5330-00-828-5970

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194050	GASKETS/RINGS PLUMBING FIXTURES
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	596	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5330-00-828-5970

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Materiel Management Aggregation Code	RV	SX:PRATT & WHITNEY JET ENGINES & COMPONENTS TF-33
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
