NSN 5330-00-822-1733 8408502, 00-822-1733, 008221733
Product Details | PACKING RETAINER
5330-00-822-1733 An item designed to fit over a packing gland by mating with a surface of a second part which together will retain into a narrow groove or confined space the PACKING, PREFORMED or O-RING, or an item designed to fit over a rod or shaft, to mate with a stuffing box to confine PACKING MATERIAL. It may function as a static or dynamic seal retainer with the packing located on, around, or in the centerline direction of the rod or shaft axis. It may have holes or joints for mounting, be threaded or unthreaded. See also PACKING NUT and PACKING NUT, STUFFING TUBE.
Part Alternates: 8408502, 5330-00-822-1733, 00-822-1733, 5330008221733, 008221733
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-822-1733 | 13706 ( RETAINER, PACKING ) |
Drawings & Photos | NSN 5330-00-822-1733
Demand History | NSN 5330-00-822-1733
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-822-1733 | 2014-12-345 | 109 | TR |
| 5330-00-822-1733 | 2010-01-07 | 32 | US |
Cross Reference | NSN 5330-00-822-1733
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8408502 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-822-1733
Technical Data | NSN 5330-00-822-1733
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |

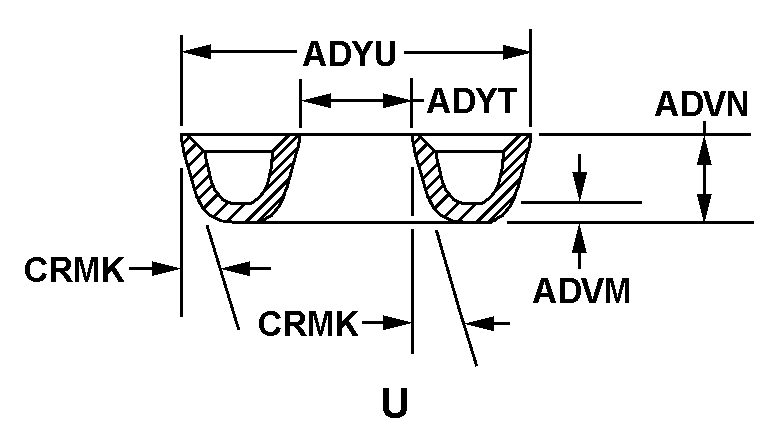

| CROSS-SECTIONAL SHAPE STYLE | D89 U |
| CROSS-SECTIONAL THICKNESS | 0.0315 INCHES NOMINAL |
| CROSS-SECTIONAL HEIGHT | 0.138 INCHES NOMINAL |
| CENTER HOLE DIAMETER | 4.369 INCHES NOMINAL |
| PERIPHERAL DIAMETER | 5.393 INCHES NOMINAL |
| ANGLE | 3.5 DEGREES NOMINAL |
| SPECIAL FEATURES | USED ON M158 GM,8 IN. HOW. RM,155MM GUN RM |
| MANUFACTURERS CODE | 19204 |
| DESIGN CONTROL REFERENCE | 8408502 |
Restrictions/Controls & Freight Information | NSN 5330-00-822-1733
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | 2 | Arms/Weapons (all types including Inert Component Parts). When a 2 is indicated in the first position, then the special handling code must be determined from table 85 , part 1. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
