NSN 5330-00-788-4093 32170443, 32-17044-3, 00-788-4093
Product Details | NONMETALLIC SPECIAL SHAPED SECTION SEAL
5330-00-788-4093 An item fabricated from NONMETALLIC SPECIAL SHAPED SECTION. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items, except for molded corners, slot(s), press fit buttons, and the like must be of one continuous cross section. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; PACKING, PERFORMED; PAD, CUSHIONING;and SEAL, PLAIN. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC SPECIAL SHAPED SECTION.
Part Alternates: 32170443, 32-17044-3, 5330-00-788-4093, 00-788-4093, 5330007884093, 007884093
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-788-4093 | 32847 ( SEAL, NONMETALLIC SPECIAL SHAPED SECTION ) |
Drawings & Photos | NSN 5330-00-788-4093
Demand History | NSN 5330-00-788-4093
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-788-4093 | 2019-05-141 | 12 | DIBBS |
| 5330-00-788-4093 | 2018-12-355 | 12 | DIBBS |
| 5330-00-788-4093 | 2018-12-347 | 12 | DIBBS |
| 5330-00-788-4093 | 2018-01-29 | 12 | DIBBS |
| 5330-00-788-4093 | 2015-09-250 | 27 | DIBBS |
| 5330-00-788-4093 | 2015-06-158 | 27 | DIBBS |
| 5330-00-788-4093 | 2015-01-12 | 15 | DIBBS |
| 5330-00-788-4093 | 2015-01-01 | 15 | DIBBS |
| 5330-00-788-4093 | 2013-03-88 | 20 | DIBBS |
| 5330-00-788-4093 | 2012-10-278 | 50 | DIBBS |
| 5330-00-788-4093 | 2012-08-214 | 11 | DIBBS |
| 5330-00-788-4093 | 2012-03-68 | 45 | DIBBS |
| 5330-00-788-4093 | 2012-01-09 | 20 | DIBBS |
| 5330-00-788-4093 | 2011-10-293 | 5 | DIBBS |
| 5330-00-788-4093 | 2011-10-291 | 4 | DIBBS |
| 5330-00-788-4093 | 2009-05-140 | 33 | DIBBS |
| 5330-00-788-4093 | 2008-04-109 | 13 | DIBBS |
| 5330-00-788-4093 | 2008-01-31 | 26 | DIBBS |
Cross Reference | NSN 5330-00-788-4093
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 32-17044-3 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-00-788-4093
Related Products | NSN 5330-00-788-4093
Technical Data | NSN 5330-00-788-4093
| Characteristic | Specifications |
|---|---|
| MATERIAL | JUTE OVERALL |
| CONSTRUCTION | SOLID |

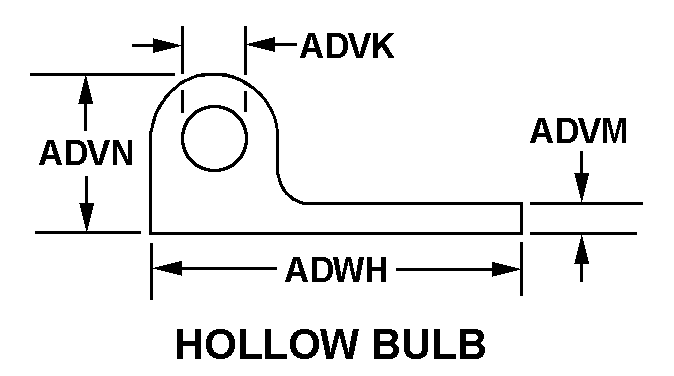

| CROSS-SECTIONAL SHAPE STYLE | H14 HOLLOW BULB |
| CROSS SECTION INSIDE DIAMETER | 0.180 INCHES NOMINAL |
| CROSS-SECTIONAL THICKNESS | 0.055 INCHES NOMINAL |
| CROSS-SECTIONAL HEIGHT | 0.340 INCHES NOMINAL |
| CROSS-SECTIONAL WIDTH | 1.000 INCHES NOMINAL |
| FABRICATION METHOD | SOLID |
| STYLE DESIGNATOR | A7 STRIP |
| OVERALL LENGTH | 26.220 INCHES NOMINAL |
| END CUT ANGLE | 7.626 DEGREES |
| ATTACHMENT METHOD | CEMENTED |
| SPECIAL FEATURES | LEFT HAND |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 32-17044-3 |
