NSN 5330-00-786-5492 52422841, 52-42284-1, 00-786-5492
Product Details | PACKING RETAINER
5330-00-786-5492 An item designed to fit over a packing gland by mating with a surface of a second part which together will retain into a narrow groove or confined space the PACKING, PREFORMED or O-RING, or an item designed to fit over a rod or shaft, to mate with a stuffing box to confine PACKING MATERIAL. It may function as a static or dynamic seal retainer with the packing located on, around, or in the centerline direction of the rod or shaft axis. It may have holes or joints for mounting, be threaded or unthreaded. See also PACKING NUT and PACKING NUT, STUFFING TUBE.
Part Alternates: 52422841, 52-42284-1, 5330-00-786-5492, 00-786-5492, 5330007865492, 007865492
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-786-5492 | 13706 ( RETAINER, PACKING ) |
Drawings & Photos | NSN 5330-00-786-5492
Demand History | NSN 5330-00-786-5492
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 52-42284-1 | 2024-02-59 | 21 | DIBBS |
| 52-42284-1 | 2023-06-167 | 19 | DIBBS |
| 5330-00-786-5492 | 2018-06-176 | 89 | DIBBS |
| 5330-00-786-5492 | 2016-10-292 | 75 | DIBBS |
| 5330-00-786-5492 | 2015-09-250 | 28 | DIBBS |
| 5330-00-786-5492 | 2015-07-211 | 71 | DIBBS |
| 5330-00-786-5492 | 2015-04-112 | 40 | DIBBS |
| 5330-00-786-5492 | 2015-03-89 | 40 | DIBBS |
| 52-42284-1 | 2012-10-300 | 49 | |
| 5330-00-786-5492 | 2012-10-298 | 49 | NECO |
| 52-42284-1 | 2012-01-07 | 33 | |
| 5330-00-786-5492 | 2012-01-06 | 33 | NECO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-786-5492
Technical Data | NSN 5330-00-786-5492
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL UNS K02708 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-22698,TY 1,CL C MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |

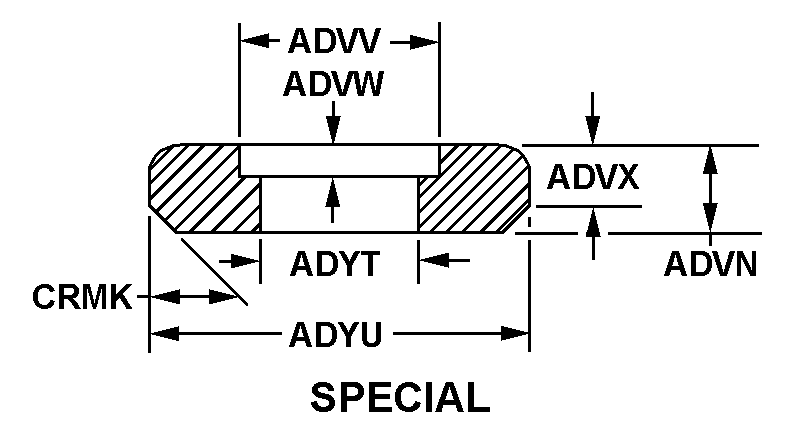

| CROSS-SECTIONAL SHAPE STYLE | D84 SPECIAL |
| CROSS-SECTIONAL HEIGHT | 1.125 INCHES NOMINAL |
| BODY RECESS DIAMETER | 18.500 INCHES MINIMUM AND 18.531 INCHES MAXIMUM |
| BODY RECESS DEPTH | 0.438 INCHES NOMINAL |
| RIM SURFACE WIDTH | 0.687 INCHES NOMINAL |
| CENTER HOLE DIAMETER | 13.984 INCHES MINIMUM AND 14.016 INCHES MAXIMUM |
| PERIPHERAL DIAMETER | 19.844 INCHES MINIMUM AND 19.875 INCHES MAXIMUM |
| ANGLE | 15.0 DEGREES NOMINAL |
| ATTACHMENT METHOD | ROUND HOLE |
| ATTACHMENT FEATURE QUANTITY | 12 |
| ATTACHMENT HOLE DIAMETER | 0.531 INCHES NOMINAL |
| ATTACHMENT FEATURE CIRCLE DIAMETER | 16.000 INCHES NOMINAL SINGLE CIRCLE |
| SPECIAL FEATURES | ATTACHMENT HOLES ARE COUNTERBORED 1.188 IN. DIA BY 0.312 IN. DEEP |
| III FSC APPLICATION DATA | ARRESTING GEAR,AIRCRAFT LANDING |
| MANUFACTURERS CODE | 80020 |
| DESIGN CONTROL REFERENCE | 52-42284-1 |
Restrictions/Controls & Freight Information | NSN 5330-00-786-5492
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | S | The item is a non-aviation Critical Safety Item (CSI) whose failure will result in serious damage to equipment or serious injury or death to personnel. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-786-5492
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | EY | 4R/5R Cog items managed by BRASO |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
