NSN 5330-00-740-9550 A1205N664, SD1827, TDA1205N664
Product Details | PLAIN ENCASED SEAL
5330-00-740-9550 A pliable rubber, felt, leather, or composition ring-shaped element, split or solid; with or without spring or spreader, having a metal shell on all or a portion of at least two of the outer surfaces. It may be designed to be either bolt mounted or pressmounted between fixed and moveable parts to form a tight and effective seal by the pressure of the spring or spreader or the resiliency inherent in the element material. Excludes PACKING WITH RETAINER.
Part Alternates: A1205N664, SD1827, TDA1205N664, KC5141, 6832, 6-8-32, 7979349, 811E1141, 98630R91, 10003725 , 12375801, 1K1540P48, 302040, 5330-00-740-9550, 00-740-9550, 5330007409550, 2520007409550, 007409550
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-740-9550 | 04214 ( SEAL, PLAIN ENCASED ) |

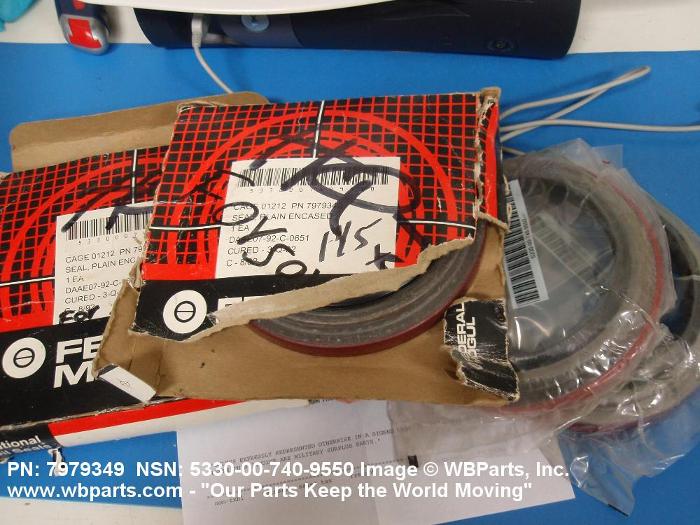

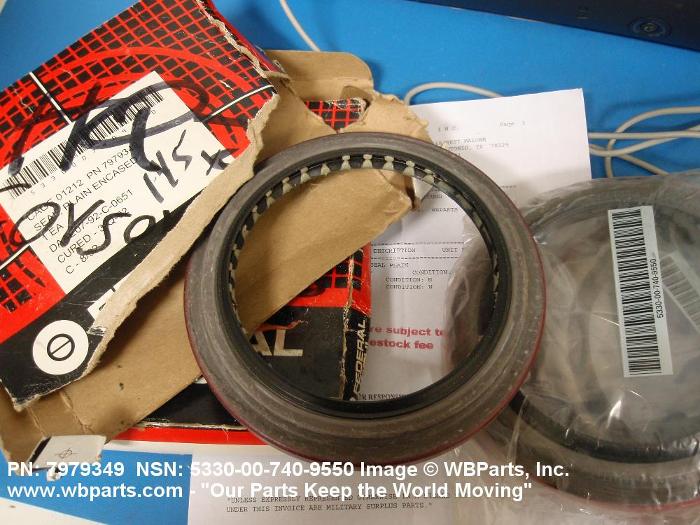

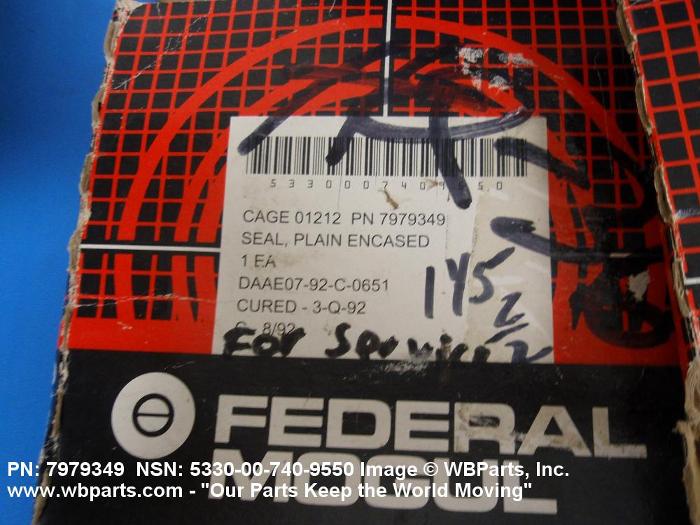

Drawings & Photos | NSN 5330-00-740-9550
Demand History | NSN 5330-00-740-9550
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-740-9550 | 2022-08-227 | 10 | United States |
| 7979349 | 2020-07-198 | 2 | United States |
| 5330-00-740-9550 | 2020-06-182 | 64 | MANUAL |
| 5330-00-740-9550 | 2013-04-119 | 3500 | DIBBS |
| 5330-00-740-9550 | 2013-03-86 | 4 | US |
| 5330-00-740-9550 | 2013-03-63 | 5000 | DIBBS |
| 5330-00-740-9550 | 2012-12-341 | 5000 | DIBBS |
| 5330-00-740-9550 | 2012-10-297 | 15500 | DIBBS |
| 5330-00-740-9550 | 2011-08-222 | 4 | US |
| 5330-00-740-9550 | 2010-08-234 | 4 | US |
| 5330-00-740-9550 | 2010-08-229 | 7300 | DIBBS |
| 5330-00-740-9550 | 2010-08-222 | 11000 | DIBBS |
| 5330-00-740-9550 | 2010-03-82 | 1409 | DIBBS |
| 5330-00-740-9550 | 2010-03-65 | 2918 | DIBBS |
| 5330-00-740-9550 | 2009-04-101 | 85 | Thailand |
| 7979349 | 2009-02-57 | 9 | us |
| 007409550 | 2008-09-246 | 4 | United States |
| 12375801 | 2007-12-351 | 10 | US |
Cross Reference | NSN 5330-00-740-9550
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10003725 | 3NNX8 | BRIGHTON CROMWELL LLC |
| 12375801 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 1K1540P48 | 98255 | DRS SUSTAINMENT SYSTEMS, INC. |
| 2520007409550 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 302040 | H0001 | DAF TRUCKS N.V. |
| 5330007409550 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 6-8-32 | 60528 | TRAILMOBILE INC SUB OF THE PULLMAN CO |
| 7979349 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 811E1141 | 02413 | KERSEY / AMERICAN LAFRANCE A DIV OF FIGGIE INTERNATIONAL INC |
| 98630R91 | 31007 | NAVISTAR INTL CORP |
| 98630R91 | 89346 | NAVISTAR INTL CORP TRUCK BR |
| A1205N664 | 3D6E9 | AXLETECH INTERNATIONAL, LLC |
| A1205N664 | 78500 | MERITOR HEAVY VEHICLE SYSTEMS LLC DIV MERITOR HEAVY VEHICLE SYSTEMS, |
| KC5141 | 56442 | DIAMOND REO TRUCK CO |
| SD1827 | 56697 | STANDARD FORGE AND AXLE CO INC |
| TDA1205N664 | 23705 | FRUEHAUF CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-00-740-9550
Related Products | NSN 5330-00-740-9550
Technical Data | NSN 5330-00-740-9550
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC SEALING ELEMENT |
| CASE STYLE | 3 SHOULDERED |
| SEALING ELEMENT STYLE | 4 ANGULAR |
| SEAL WIDTH | 1.125 INCHES MINIMUM AND 1.157 INCHES MAXIMUM |
| ACCOMMODATED SHAFT DIAMETER | 4.745 INCHES MINIMUM AND 4.755 INCHES MAXIMUM |
| HOUSING BORE DIAMETER | 6.616 INCHES MINIMUM AND 6.618 INCHES MAXIMUM |
| III TEMP RATING | -65.0 DEG FAHRENHEIT |
| III END ITEM IDENTIFICATION | W/S: AIRCRAFT, T-39; AIRBORNE MOBILE DIR AIR SPT CTL (2ID), (02M JUL83) (AN/UYQ-3A); RADAR SET, FIREFINDER (AN/TPQ-36); SHOP EQUIPMENT, GENERAL PURPOSE REPAIR, TRLR, SEMI-MOUNTED; JOINT STARS TARGET RADAR SYSTEM; TRAILER, SEMI, TANK; 5000 GAL, BULK; TRAILER, SEMI, TANK; FUEL 5000 GAL, 12-TON 4-WHEEL W/E; TRUCK, CARGO, 5-TON, 6X6, XLWB W/E; TRAILER, SEMI (M860A1); TRAILER, SEMI (M986) & CHASSIS, TRAILER, SEMI (M999) |
Restrictions/Controls & Freight Information | NSN 5330-00-740-9550
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-740-9550
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | N | Tactical Vehicles |
| Weapons Systems/End Item or Homogeneous Group | NT | M939 Family of Vehicles (Includes M939A1 and M939A2) |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
