NSN 5330-00-641-5389 89022, 00-641-5389, 006415389
Product Details | NONMETALLIC CHANNEL SEAL
5330-00-641-5389 An item fabricated from NONMETALLIC CHANNEL. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items except for molded corners, end cut(s), and mounting facilities, such as mounting hole(s), slot(s), press fit buttons, and the like, must be one continuous cross section. It may have fabric, cord, or metal reinforcement. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes GASKET; GROMMET, NONMETALLIC; and PACKING, PREFORMED. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC CHANNEL.
Part Alternates: 89022, 5330-00-641-5389, 00-641-5389, 5330006415389, 006415389
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-641-5389 | 32846 ( SEAL, NONMETALLIC CHANNEL ) |
Drawings & Photos | NSN 5330-00-641-5389
Cross Reference | NSN 5330-00-641-5389
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 89022 | 03848 | ARMA DIV AMBAC INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-641-5389
Technical Data | NSN 5330-00-641-5389
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER BUTADIENE-STYRENE CLASS SBR OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-900 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| CONSTRUCTION | SOLID |
| CROSS-SECTIONAL SHAPE STYLE | K1 OPEN CHANNEL |
| WEB WIDTH | 0.34375 INCHES NOMINAL |
| LEFT SIDE FLANGE HEIGHT | 0.099 INCHES MINIMUM AND 0.119 INCHES MAXIMUM |
| RIGHT SIDE FLANGE HEIGHT | 0.099 INCHES MINIMUM AND 0.119 INCHES MAXIMUM |
| LEFT SIDE FLANGE THICKNESS | 0.045 INCHES MINIMUM AND 0.055 INCHES MAXIMUM |
| RIGHT SIDE FLANGE THICKNESS | 0.045 INCHES MINIMUM AND 0.055 INCHES MAXIMUM |
| WEB THICKNESS | 0.045 INCHES MINIMUM AND 0.055 INCHES MAXIMUM |
| LEFT SIDE FLANGE THICKNESS AT WEB | 0.045 INCHES MINIMUM AND 0.055 INCHES MAXIMUM |
| RIGHT SIDE FLANGE THICKNESS AT WEB | 0.045 INCHES MINIMUM AND 0.055 INCHES MAXIMUM |
| LEFT INSIDE ANGLE | 90.0 DEGREES NOMINAL |
| RIGHT INSIDE ANGLE | 90.0 DEGREES NOMINAL |
| LEFT OUTSIDE ANGLE | 90.0 DEGREES NOMINAL |
| RIGHT OUTSIDE ANGLE | 90.0 DEGREES NOMINAL |
| STYLE DESIGNATOR | A1 CIRCULAR |
| APERTURE DIAMETER | 4.781 INCHES NOMINAL |

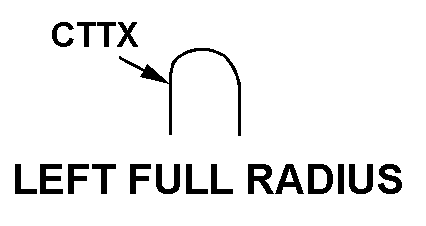

| LEFT TIP STYLE | K4A LEFT FULL RADIUS |
| LEFT TIP RADIUS | 0.025 INCHES NOMINAL |
| RIGHT TIP RELATIONSHIP WITH LEFT TIP | IDENTICAL |

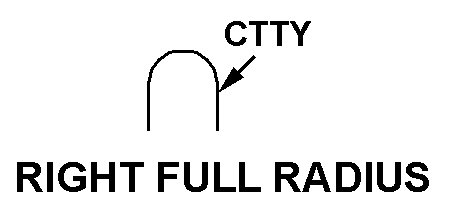

| RIGHT TIP STYLE | K4B RIGHT FULL RADIUS |
| RIGHT TIP RADIUS | 0.025 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5330-00-641-5389
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-641-5389
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
