NSN 5330-00-641-2346 00-641-2346, 006412346
Product Details | SPIRAL WOUND GASKET
5330-00-641-2346 A circular or moderately noncircular shaped item with an aperture. It is constructed of spring-like metal strips, preformed into a vee shape, laminated with a soft filler. It is designed to seal between two nondeforming surfaces. It may have an inner and/or outer, solid or spiral wound compression ring(s).
Part Alternates: 5330-00-641-2346, 00-641-2346, 5330006412346, 006412346
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01-JAN-63 | 00-641-2346 | 37840 ( GASKET, SPIRAL WOUND ) |
Drawings & Photos | NSN 5330-00-641-2346
Demand History | NSN 5330-00-641-2346
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-641-2346 | 2014-05-142 | 1 | us |
Cross Reference | NSN 5330-00-641-2346
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 002817103 | 58156 | FLEXITALLIC L.P. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-641-2346
Technical Data | NSN 5330-00-641-2346
| Characteristic | Specifications |
|---|---|
| MATERIAL | ASBESTOS AND STEEL COMP 317 OVERALL |

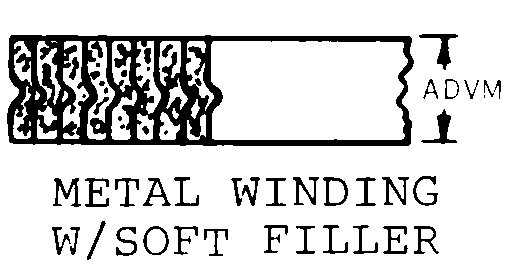

| CROSS-SECTIONAL SHAPE STYLE | F46 METAL WINDING W/SOFT FILLER |
| CROSS-SECTIONAL THICKNESS | 0.172 INCHES NOMINAL |
| STYLE DESIGNATOR | B1 CIRCULAR |
| OUTSIDE DIAMETER | 3.750 INCHES NOMINAL |
| APERTURE DIAMETER | 2.812 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5330-00-641-2346
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
