NSN 5330-00-618-5766 69793PC216, 00-618-5766, 006185766
Product Details | NONMETALLIC SPECIAL SHAPED SECTION SEAL
5330-00-618-5766 An item fabricated from NONMETALLIC SPECIAL SHAPED SECTION. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items, except for molded corners, slot(s), press fit buttons, and the like must be of one continuous cross section. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; PACKING, PERFORMED; PAD, CUSHIONING;and SEAL, PLAIN. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC SPECIAL SHAPED SECTION.
Part Alternates: 69793PC216, 5330-00-618-5766, 00-618-5766, 5330006185766, 006185766
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-618-5766 | 32847 ( SEAL, NONMETALLIC SPECIAL SHAPED SECTION ) |
Drawings & Photos | NSN 5330-00-618-5766
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-618-5766
Technical Data | NSN 5330-00-618-5766
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER BUTADIENE-STYRENE CLASS SBR OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-900 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| CONSTRUCTION | SOLID |

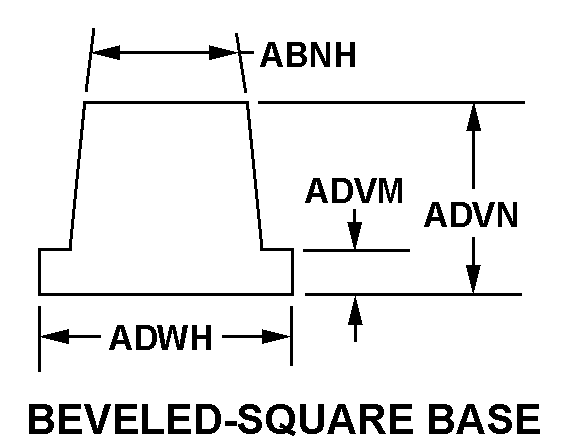

| CROSS-SECTIONAL SHAPE STYLE | H117 BEVELED-SQUARE BASE |
| MINOR WIDTH | 0.297 INCHES NOMINAL |
| CROSS-SECTIONAL THICKNESS | 0.188 INCHES NOMINAL |
| CROSS-SECTIONAL HEIGHT | 0.375 INCHES NOMINAL |
| CROSS-SECTIONAL WIDTH | 0.594 INCHES NOMINAL |
| FABRICATION METHOD | SOLID |
| STYLE DESIGNATOR | A1 CIRCULAR |
| APERTURE DIAMETER | 1.750 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5330-00-618-5766
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | Q | 36 months |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-618-5766
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Q | 36 months |
