NSN 5330-00-559-4384 100432, 00-559-4384, 005594384
Product Details | NONMETALLIC ROUND SECTION SEAL
5330-00-559-4384 An item fabricated from nonmetallic material designed to be used where there is no relative motion between joined parts. Items with a solid cross section must be a single piece whose ends may have been secured together to form a specific shape. It may be formed to specific shape with or without joints. It may be a straight item of a specific length with end cuts or joints. It may have a solid or tubular cross section. Except for molded corners, end cuts, and mounting facilities such as mounting holes, slots, press-fit buttons, or the like, the item must be of one continuous round cross section. It may have fabric, cord or metal reinforcement. For straight items with square end cuts and without mounting holes, slots or press-fit buttons see RUBBER ROUND SECTION and TUBING, NONMETALLIC. Excludes GASKET and PACKING, PREFORMED.
Part Alternates: 100432, 5330-00-559-4384, 00-559-4384, 5330005594384, 005594384
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-559-4384 | 36873 ( SEAL, NONMETALLIC ROUND SECTION ) |

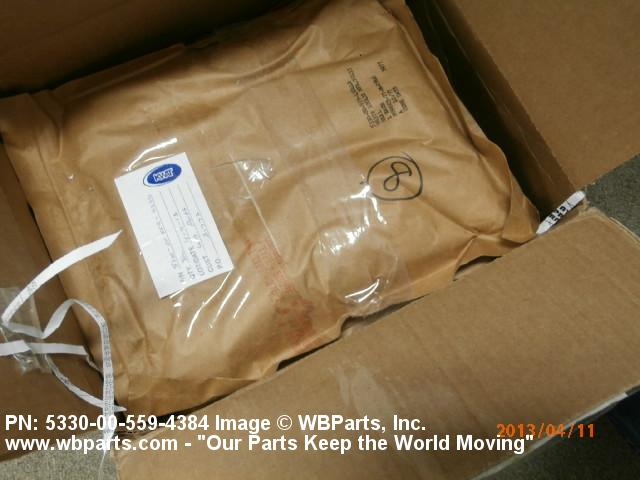

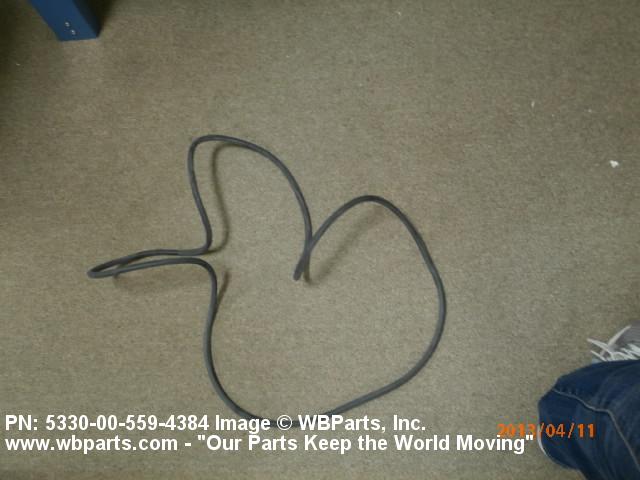

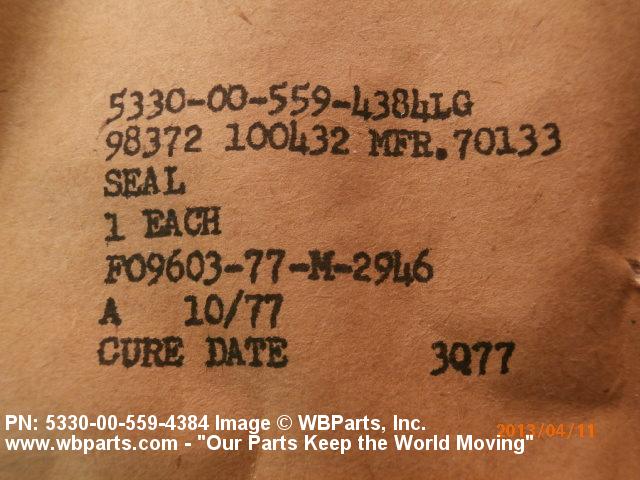

Drawings & Photos | NSN 5330-00-559-4384
Demand History | NSN 5330-00-559-4384
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-559-4384 | 2015-12-337 | 32 | United States |
| 5330-00-559-4384 | 2014-07-183 | 110 | DIBBS |
| 5330-00-559-4384 | 2013-11-316 | 54 | DIBBS |
| 5330-00-559-4384 | 2013-08-242 | 65 | DIBBS |
| 5330-00-559-4384 | 2013-06-156 | 43 | DIBBS |
| 5330-00-559-4384 | 2013-04-98 | 8 | United States |
| 5330-00-559-4384 | 2013-04-98 | 12 | United States |
| 5330-00-559-4384 | 2012-08-226 | 101 | DIBBS |
| 5330-00-559-4384 | 2012-05-152 | 64 | DIBBS |
| 5330-00-559-4384 | 2011-08-227 | 70 | DIBBS |
| 5330-00-559-4384 | 2011-01-19 | 175 | DIBBS |
| 5330-00-559-4384 | 2010-12-337 | 275 | DIBBS |
| 5330-00-559-4384 | 2010-09-260 | 55 | DIBBS |
| 5330-00-559-4384 | 2010-02-42 | 10 | United States |
| 5330-00-559-4384 | 2009-12-364 | 68 | DIBBS |
| 5330-00-559-4384 | 2009-09-264 | 55 | DIBBS |
| 5330-00-559-4384 | 2009-08-216 | 20 | DIBBS |
| 5330-00-559-4384 | 2009-06-163 | 50 | DIBBS |
| 5330-00-559-4384 | 2009-05-138 | 19 | DIBBS |
Cross Reference | NSN 5330-00-559-4384
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100432 | 4N727 | GE AVIATION SYSTEMS LLC DBA GE AVIATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-00-559-4384
Related Products | NSN 5330-00-559-4384
Technical Data | NSN 5330-00-559-4384
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6855,GR 60 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| CONSTRUCTION | SOLID |
| CROSS-SECTIONAL SHAPE STYLE | G1 CIRCULAR |

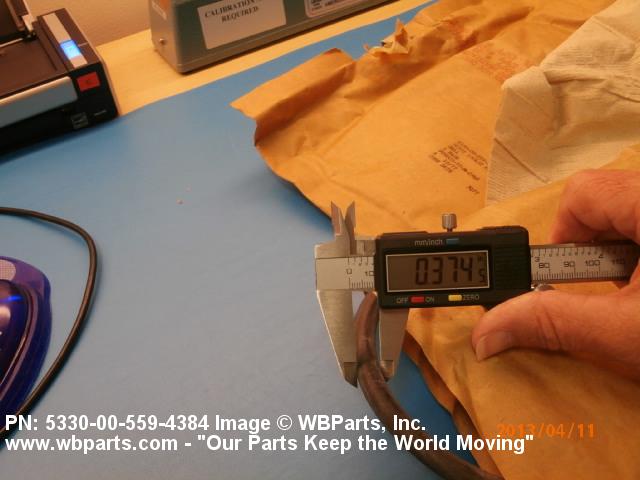

| CROSS SECTION OUTSIDE DIAMETER | 0.375 INCHES NOMINAL |
| FABRICATION METHOD | SOLID |
| STYLE DESIGNATOR | A1 CIRCULAR |
| APERTURE DIAMETER | 28.250 INCHES NOMINAL |
| III FSC APPLICATION DATA | TANK,FUEL,AIRCRAFT |
| MANUFACTURERS CODE | 62793 |
| DESIGN CONTROL REFERENCE | 100432 |
Restrictions/Controls & Freight Information | NSN 5330-00-559-4384
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI SUB6 |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-559-4384
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | FT | SU:CENTRAL TANK MANAGEMENT |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
