NSN 5330-00-531-5944 00-531-5944, 005315944
Product Details | PLAIN ENCASED SEAL
5330-00-531-5944 A pliable rubber, felt, leather, or composition ring-shaped element, split or solid; with or without spring or spreader, having a metal shell on all or a portion of at least two of the outer surfaces. It may be designed to be either bolt mounted or pressmounted between fixed and moveable parts to form a tight and effective seal by the pressure of the spring or spreader or the resiliency inherent in the element material. Excludes PACKING WITH RETAINER.
Part Alternates: 5330-00-531-5944, 00-531-5944, 5330005315944, 005315944
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-531-5944 | 04214 ( SEAL, PLAIN ENCASED ) |
Drawings & Photos | NSN 5330-00-531-5944
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-531-5944
Technical Data | NSN 5330-00-531-5944
| Characteristic | Specifications |
|---|---|
| MATERIAL | LEATHER SEALING ELEMENT A LEATHER SEALING ELEMENT B |
| CASE STYLE | 1 SQUARE |

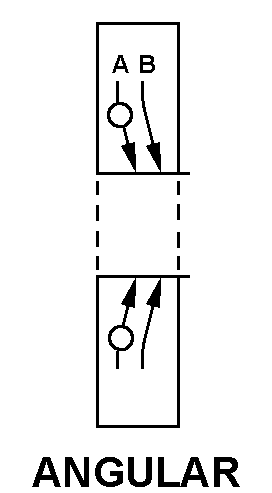

| SEALING ELEMENT STYLE | 10 ANGULAR |
| SEAL WIDTH | 0.609 INCHES MINIMUM AND 0.641 INCHES MAXIMUM |
| ACCOMMODATED SHAFT MAXIMUM RATED SPEED | 2000 FEET PER MINUTE |
| ACCOMMODATED SHAFT DIAMETER | 2.625 INCHES NOMINAL |
| HOUSING BORE DIAMETER | 3.622 INCHES MINIMUM AND 3.624 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5330-00-531-5944
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
