NSN 5330-00-236-6604 MS51911482, MS51911-48-2, A1805V152
Product Details | PLAIN ENCASED SEAL
5330-00-236-6604 A pliable rubber, felt, leather, or composition ring-shaped element, split or solid; with or without spring or spreader, having a metal shell on all or a portion of at least two of the outer surfaces. It may be designed to be either bolt mounted or pressmounted between fixed and moveable parts to form a tight and effective seal by the pressure of the spring or spreader or the resiliency inherent in the element material. Excludes PACKING WITH RETAINER.
Part Alternates: MS51911482, MS51911-48-2, A1805V152, A-A-52524/7-48-2, AA525247482, 302016, 35012, 5330-00-236-6604, 00-236-6604, 5330002366604, 002366604
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 MAR 1971 | 00-236-6604 | 04214 ( SEAL, PLAIN ENCASED ) |
Drawings & Photos | NSN 5330-00-236-6604
Demand History | NSN 5330-00-236-6604
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-236-6604 | 2013-09-246 | 684 | KR |
| 5330-00-236-6604 | 2011-09-272 | 1 | UK |
| A1805V152 | 2009-08-242 | 4 | US |
Cross Reference | NSN 5330-00-236-6604
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 302016 | H0001 | DAF TRUCKS N.V. |
| 35012 | 76680 | FEDERAL-MOGUL CORP CHASSIS PRODUCTS DIV |
| 5330002366604 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| A-A-52524/7-48-2 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| A1805V152 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS51911-48-2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-236-6604
Technical Data | NSN 5330-00-236-6604
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC SEALING ELEMENT A RUBBER SYNTHETIC SEALING ELEMENT B |
| SURFACE TREATMENT | ZINC OR CADMIUM CASE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-Z-325,TY 2,CL 2 FED SPEC 1ST TREATMENT RESPONSE OR QQ-P-416,TY 2,CL 2 FED SPEC 2ND TREATMENT RESPONSE CASE |
| CASE STYLE | 1 SQUARE |

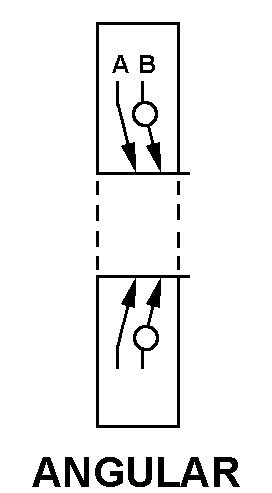

| SEALING ELEMENT STYLE | 11 ANGULAR |
| SEAL WIDTH | 0.610 INCHES MINIMUM AND 0.640 INCHES MAXIMUM |
| ACCOMMODATED SHAFT DIAMETER | 2.937 INCHES NOMINAL |
| HOUSING BORE DIAMETER | 4.003 INCHES NOMINAL |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-52524/7-48-2 |
Restrictions/Controls & Freight Information | NSN 5330-00-236-6604
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
