Product Details | PACKING ASSEMBLY

5330-00-202-3911 Any combination of items manufactured from PACKING MATERIAL to predetermined dimensions, or any combination of nonmetallic molded or formed shapes (other than solid rubber or synthetic rubber rings having a square or rectangular cross section) specifically designed and manufactured for use as a seal. The assembly may include metal lantern rings, metal separators, and/or end or adapter rings.

Part Alternates: 425543REVBPC41, 4255-43REVBPC41, 57648011505290REVBPC41, 576-4801-1505290REVBPC41, 5330-00-202-3911, 00-202-3911, 5330002023911, 002023911

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-202-3911

Drawings & Photos | NSN 5330-00-202-3911


Cross Reference | NSN 5330-00-202-3911

Part Number Cage Code Manufacturer
4255-43REVBPC41 89103 PEARL HARBOR NAVAL SHIPYARD AND INTERMEDIATE MAINTENANCE FACILITY
4255-43REVBPC41 96169 ELECTRIC BOAT CORPORATION
576-4801-1505290REVBPC41 80064 NAVAL SHIP SYSTEMS COMMAND

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5330-00-202-3911

Technical Data | NSN 5330-00-202-3911

Characteristic Specifications
MATERIAL ASBESTOS OR RUBBER INTERMEDIATE RING

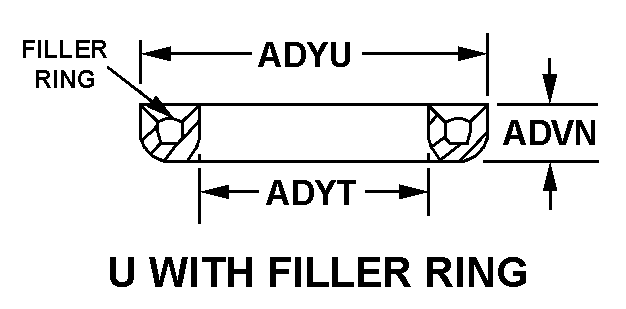

CROSS-SECTIONAL SHAPE STYLE D5 U WITH FILLER RING INTERMEDIATE RING
INTERMEDIATE RING QUANTITY 4
JOINT TYPE SCARF-PERIPHERAL BOTTOM RING SCARF-PERIPHERAL INTERMEDIATE RING SCARF-PERIPHERAL TOP RING
OUTSIDE DIAMETER 2.750 INCHES NOMINAL
INSIDE DIAMETER 1.875 INCHES NOMINAL
HEIGHT 1.281 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 5330-00-202-3911

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 194160 WASHER OR GASKETS, IRON OR STEEL,
Less than car load rating
Less than truck load rating U 50.0
Water commodity Code 596 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5330-00-202-3911

Category Code Description
Cognizance Codes9ZNavy-owned stocks of defense industrial material
Naval Inventory Control Point, Mechanicsburg
Source of SupplyS9IDefense Industrial Supply Center
Philadelphia, PA 19111
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesYTERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
SE : Set
