NSN 5330-00-202-2794 J4100122, J41001-2-2, 00-202-2794
Product Details | PACKING RETAINER
5330-00-202-2794 An item designed to fit over a packing gland by mating with a surface of a second part which together will retain into a narrow groove or confined space the PACKING, PREFORMED or O-RING, or an item designed to fit over a rod or shaft, to mate with a stuffing box to confine PACKING MATERIAL. It may function as a static or dynamic seal retainer with the packing located on, around, or in the centerline direction of the rod or shaft axis. It may have holes or joints for mounting, be threaded or unthreaded. See also PACKING NUT and PACKING NUT, STUFFING TUBE.
Part Alternates: J4100122, J41001-2-2, 5330-00-202-2794, 00-202-2794, 5330002022794, 002022794
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-202-2794 | 13706 ( RETAINER, PACKING ) |
Drawings & Photos | NSN 5330-00-202-2794
Cross Reference | NSN 5330-00-202-2794
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| J41001-2-2 | 16859 | CRANE CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-202-2794
Technical Data | NSN 5330-00-202-2794
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |

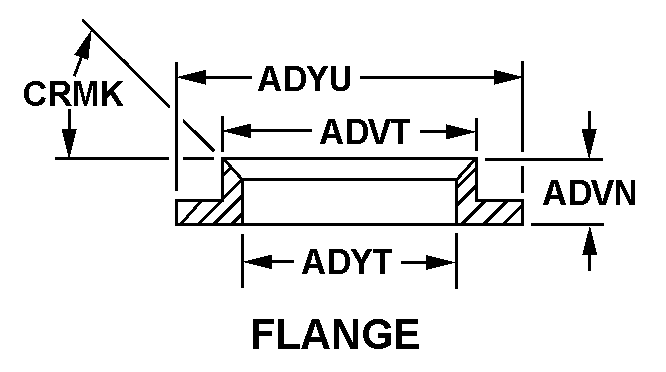

| CROSS-SECTIONAL SHAPE STYLE | D46 FLANGE |
| CROSS-SECTIONAL HEIGHT | 0.625 INCHES NOMINAL |
| FLANGED BODY OUTSIDE DIAMETER | 1.000 INCHES NOMINAL |
| CENTER HOLE DIAMETER | 0.629 INCHES NOMINAL |
| PERIPHERAL DIAMETER | 1.125 INCHES NOMINAL |
| ANGLE | 30.0 DEGREES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5330-00-202-2794
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
