NSN 5330-00-179-0052 C2531512, C-25315-12, CW-2300BW PC627

Product Details | CLOTH INSERT SOLID RUBBER SHEET

5330-00-179-0052 A sheet material consisting of a vulcanized elastomeric material inclosing a sheet of nonmetallic cloth, or of alternate layers of nonmetallic cloth and elastomer with elastomeric faces. The elastomer is the primary substance and the nonmetallic cloth is inserted for stiffness and/or to prevent deformation under stress in its plane. It may be provided flat or in rolls. It is normally used as a gasket material. Sheets are limited to widths greater than 6 inches (152.4 mm). See also CLOTH, COATED; CLOTH LAMINATED; and RUBBER SHEET, SOLID.

Part Alternates: C2531512, C-25315-12, CW-2300BW PC627, CW2300BWPC627, CW2300KPC625AND, CW2300KPC62L, CW686PW, CW686PZ, HH-P-151 1/8THK, HH-P-151 1-8, HH-P-151 1-8IN, HH-P-151 CLASS 4, HHP15118, HHP15118IN, HHP15118THK, HH-P151CL1 1-8I N, HH-P-151CL1-1/8 THK, HHP151CL118IN, HHP151CL118THK, HH-P-151CL2 1/8 IN, HH-P-151CL2 1-8 INTHK, HHP151CL218IN, HHP151CL218INTHK, HHP151CLASS2-1/ 8IN THK, HHP151CLASS218INTHK, HHP151CLASS4, 02808258A, 028-08258A, 153-003-E-079-4 9, 153003E07949, 153-003-E-079-5 0, 153003E07950, 321527, 32-1527, 501-7368092 ITEM NO 15, 5017368092ITEMNO15, 508-4686239 ITE, 5084686239ITE, 651D7518PC5, 9J87702, 9J8-7702, 9W1101103, 9W110-1103, 5330-00-179-0052, 00-179-0052, 5330001790052, 001790052

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1961	00-179-0052	21147 ( RUBBER SHEET, SOLID, CLOTH INSERT )

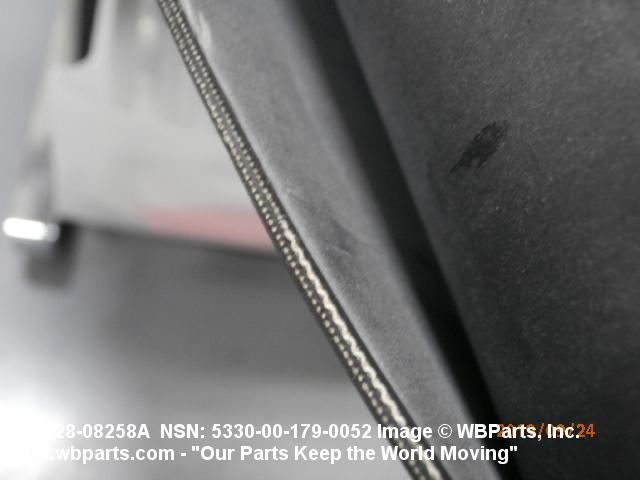

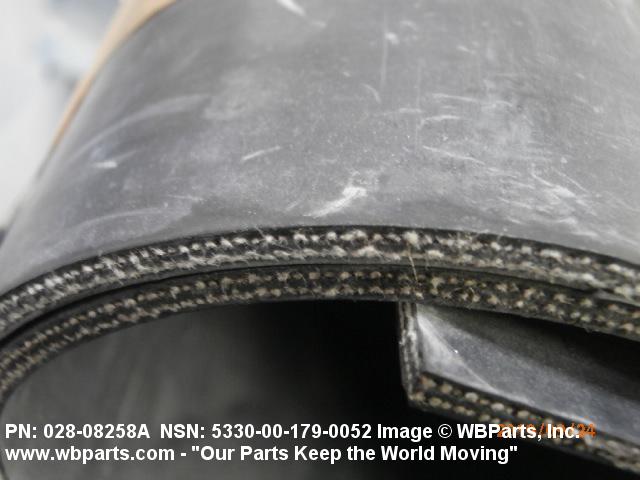

Drawings & Photos | NSN 5330-00-179-0052

Part Number	Request Date	QTY	Origin
5330-00-179-0052	2024-08-226	1	us
5330-00-179-0052	2024-03-76	1	us
5330-00-179-0052	2023-11-321	1	US
5330-00-179-0052	2020-07-209	1	United States
5330-00-179-0052	2020-07-209	1	United States
5330-00-179-0052	2019-07-200	1	United States
5330-00-179-0052	2018-06-157	8	US
5330-00-179-0052	2018-05-124	15	UK
5330-00-179-0052	2018-03-61	2	US
5330-00-179-0052	2017-11-333	1	United States
5330-00-179-0052	2017-06-156	1	us
5330-00-179-0052	2016-08-215	573	DIBBS
5330-00-179-0052	2014-11-329	2300	DIBBS
5330-00-179-0052	2014-09-247	1855	DIBBS
5330-00-179-0052	2014-04-118	6	US
5330-00-179-0052	2013-10-281	2450	DIBBS
5330-00-179-0052	2013-03-84	2200	DIBBS
5330-00-179-0052	2012-10-297	1100	DIBBS
5330-00-179-0052	2012-05-143	1	US
5330-00-179-0052	2011-11-334	2400	DIBBS
5330-00-179-0052	2011-10-301	1500	DIBBS
5330-00-179-0052	2011-09-250	1	US
5330-00-179-0052	2011-07-199	25	US
5330-00-179-0052	2011-06-172	2	US
5330-00-179-0052	2011-03-90	1	US
5330-00-179-0052	2011-03-81	3	US
5330-00-179-0052	2010-12-346	5	US
5330-00-179-0052	2010-01-05	10	US
9W1101103	2009-12-352	15	US
5330-00-179-0052	2008-12-338	1123	DIBBS
5330-00-179-0052	2008-11-318	1611	DIBBS
5330-00-179-0052	2008-10-284	1996	DIBBS
9W1101103	2008-07-200	2	United States
9W1101103	2008-07-197	2	United States
5330-00-179-0052	2008-07-197	2	United States

Cross Reference | NSN 5330-00-179-0052

Part Number	Cage Code	Manufacturer
028-08258A	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
153-003-E-079-4 9	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
153-003-E-079-5 0	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
32-1527	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
501-7368092 ITEM NO 15	53711	NAVAL SEA SYSTEMS COMMAND
508-4686239 ITE	80064	NAVAL SHIP SYSTEMS COMMAND
651D7518PC5	09647	AQUA-CHEM INC.
9J8-7702	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
9W110-1103	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
C-25315-12	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
CW-2300BW PC627	16712	SIEMENS DEMAG DELAVAL TURBOMACHINERY, INC.
CW2300KPC625AND	16712	SIEMENS DEMAG DELAVAL TURBOMACHINERY, INC.
CW2300KPC62L	16712	SIEMENS DEMAG DELAVAL TURBOMACHINERY, INC.
CW686PW	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
CW686PZ	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
HH-P-151 1-8	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
HH-P-151 1-8IN	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
HH-P-151 1/8THK	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
HH-P-151 CLASS 4	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
HH-P-151CL1-1/8 THK	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
HH-P-151CL2 1-8 INTHK	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
HH-P-151CL2 1/8 IN	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
HH-P151CL1 1-8I N	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
HHP151CLASS2-1/ 8IN THK	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5330-00-179-0052

Compare

Related Products | NSN 5330-00-179-0052

5330-00-179-0053, 5330-00-179-0054, 5330-00-179-0165, 5330-00-179-0247, 5330-00-179-0258

Technical Data | NSN 5330-00-179-0052

Characteristic	Specifications
MATERIAL	RUBBER,SYNTHETIC,HH-P-151 CL 4
STRENGTHENING FEATURE	INSERT
INSERT QUANTITY	2
STRENGTHENING FEATURE MATERIAL	COTTON FABRIC
NONMETALLIC HARDNESS RATING	NOT RATED
MINIMUM TENSILE STRENGTH	1000 POUNDS PER SQUARE INCH
ENVIRONMENTAL PROTECTION	OIL RESISTANT AND WATER RESISTANT
SURFACE CONDITION	SMOOTH
LENGTH	ANY ACCEPTABLE
WIDTH	35.000 INCHES MINIMUM AND 44.000 INCHES MAXIMUM
THICKNESS	0.105 INCHES MINIMUM AND 0.145 INCHES MAXIMUM
NONDEFINITIVE SPEC/STD DATA	4 CLASS
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	HH-P-151 CLASS 4

Restrictions/Controls & Freight Information | NSN 5330-00-179-0052

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	Q	36 months
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	148520	PACKING RUBR/GUM COMPOUND O/T FOAM
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	596	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5330-00-179-0052

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Q	36 months
Purchasing	QTY UOM	X SY : Square Yard

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Q	36 months
Purchasing	QTY UOM	1 SY : Square Yard

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Q	36 months
Purchasing	QTY UOM	X SY : Square Yard

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Q	36 months
Purchasing	QTY UOM	X SY : Square Yard
