NSN 5330-00-159-9642 MS510001283, MS51000-128-3, A-A-52524/1-128-3
Product Details | PLAIN ENCASED SEAL
5330-00-159-9642 A pliable rubber, felt, leather, or composition ring-shaped element, split or solid; with or without spring or spreader, having a metal shell on all or a portion of at least two of the outer surfaces. It may be designed to be either bolt mounted or pressmounted between fixed and moveable parts to form a tight and effective seal by the pressure of the spring or spreader or the resiliency inherent in the element material. Excludes PACKING WITH RETAINER.
Part Alternates: MS510001283, MS51000-128-3, A-A-52524/1-128-3, AA5252411283, 5330-00-159-9642, 00-159-9642, 5330001599642 , 001599642
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 JAN 1973 | 00-159-9642 | 04214 ( SEAL, PLAIN ENCASED ) |

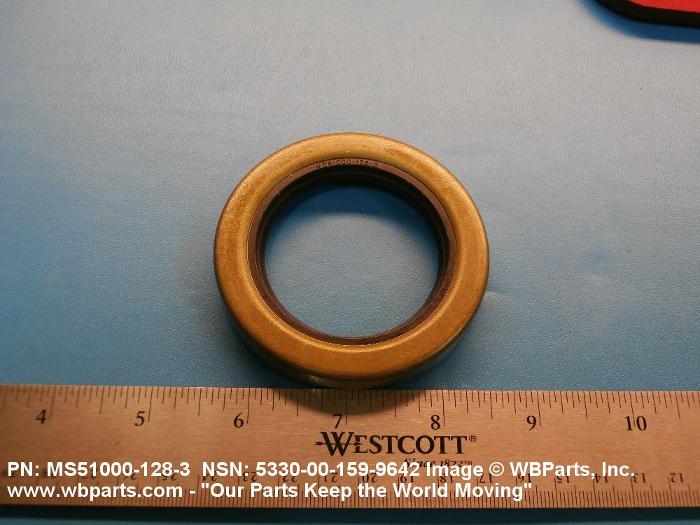

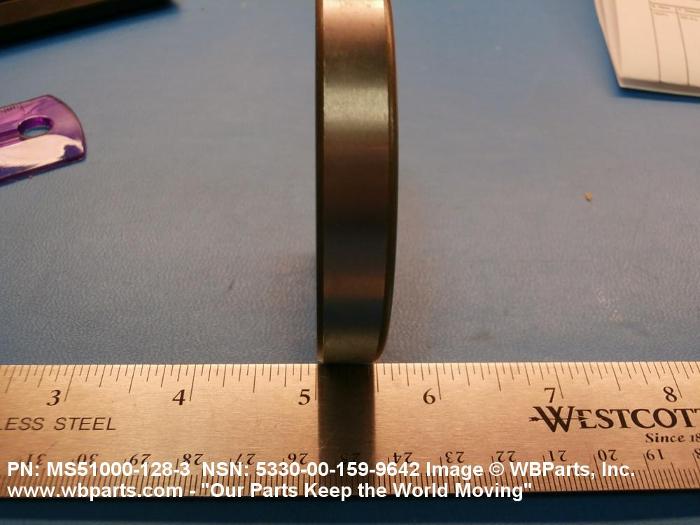

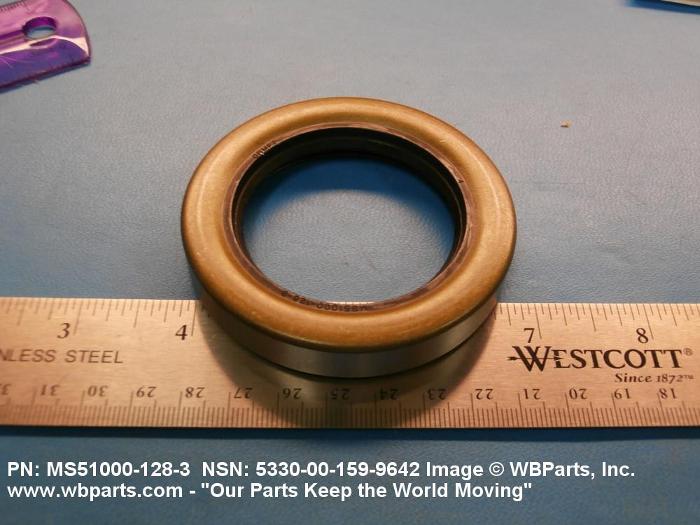

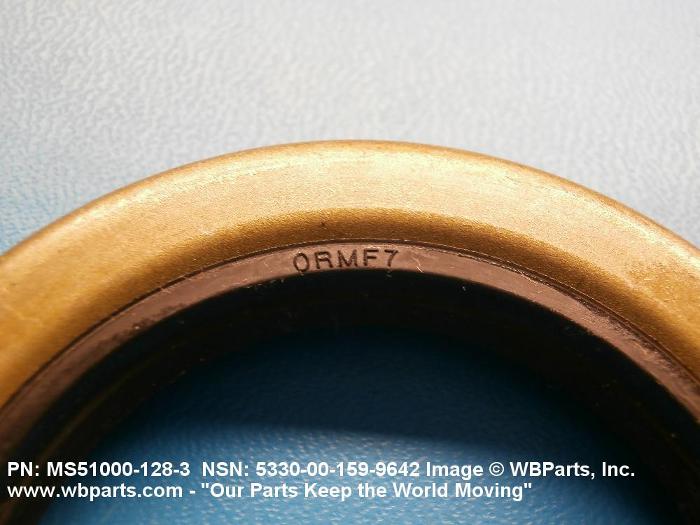

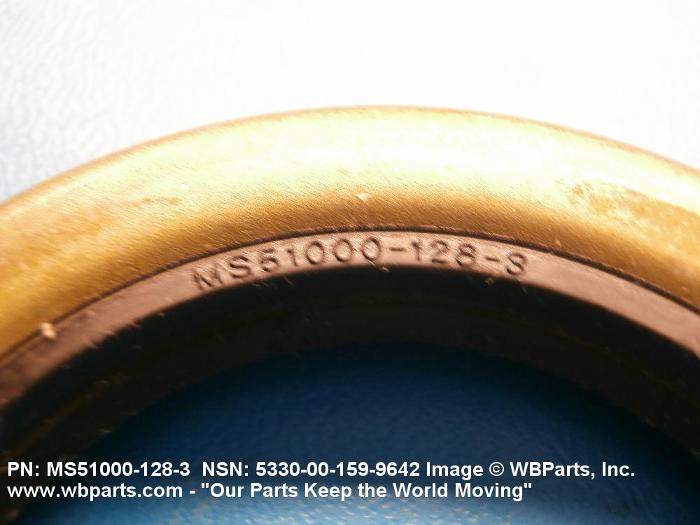

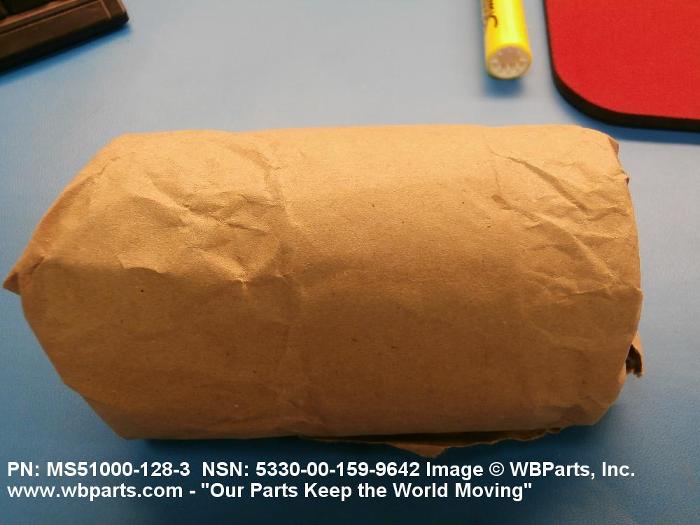

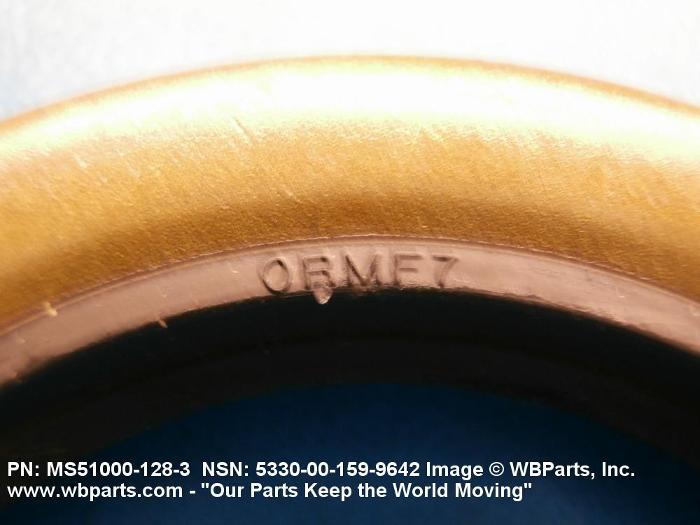

Drawings & Photos | NSN 5330-00-159-9642
Demand History | NSN 5330-00-159-9642
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-159-9642 | 2024-05-148 | 1 | BR |
| 5330-00-159-9642 | 2013-06-164 | 10 | US |
| 5330-00-159-9642 | 2012-12-339 | 20 | DIBBS |
| 5330-00-159-9642 | 2012-04-96 | 0 | United States |
| 5330-00-159-9642 | 2012-03-76 | 250 | DIBBS |
| 5330-00-159-9642 | 2011-10-294 | 150 | DIBBS |
| 5330-00-159-9642 | 2011-06-174 | 26 | DIBBS |
| 5330-00-159-9642 | 2011-06-174 | 38 | DIBBS |
| 5330-00-159-9642 | 2010-11-312 | 38 | DIBBS |
Cross Reference | NSN 5330-00-159-9642
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-00-159-9642
Related Products | NSN 5330-00-159-9642
Technical Data | NSN 5330-00-159-9642
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR AND STEEL SEALING ELEMENT |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-45005,CL 3 MIL SPEC SINGLE MATERIAL RESPONSE SEALING ELEMENT |
| SURFACE TREATMENT | ZINC AND CHROMATE OR CADMIUM AND CHROMATE CASE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-Z-325,TY 2,CL 3 FED SPEC 1ST TREATMENT RESPONSE OR QQ-P-416,TY 2,CL 3 FED SPEC 2ND TREATMENT RESPONSE CASE |
| CASE STYLE | 1 SQUARE |
| SEALING ELEMENT STYLE | 4 ANGULAR |
| SEAL WIDTH | 0.485 INCHES MINIMUM AND 0.515 INCHES MAXIMUM |
| ACCOMMODATED SHAFT DIAMETER | 2.000 INCHES NOMINAL |
| HOUSING BORE DIAMETER | 3.000 INCHES NOMINAL |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-52524/1-128-3 |
Restrictions/Controls & Freight Information | NSN 5330-00-159-9642
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | Y | 180 months |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-159-9642
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Y | 180 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Y | 180 months |
| Purchasing | QTY UOM |
1 EA : Each |
