NSN 5330-00-133-2063 RR185CD, WH185CD, WH-185-CD
Product Details | PACKING RETAINER
5330-00-133-2063 An item designed to fit over a packing gland by mating with a surface of a second part which together will retain into a narrow groove or confined space the PACKING, PREFORMED or O-RING, or an item designed to fit over a rod or shaft, to mate with a stuffing box to confine PACKING MATERIAL. It may function as a static or dynamic seal retainer with the packing located on, around, or in the centerline direction of the rod or shaft axis. It may have holes or joints for mounting, be threaded or unthreaded. See also PACKING NUT and PACKING NUT, STUFFING TUBE.
Part Alternates: RR185CD, WH185CD, WH-185-CD , 120-70042-18502, 5330-00-133-2063, 00-133-2063, 1207004218502, 5330001332063, 001332063
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 DEC 1968 | 00-133-2063 | 13706 ( RETAINER, PACKING ) |

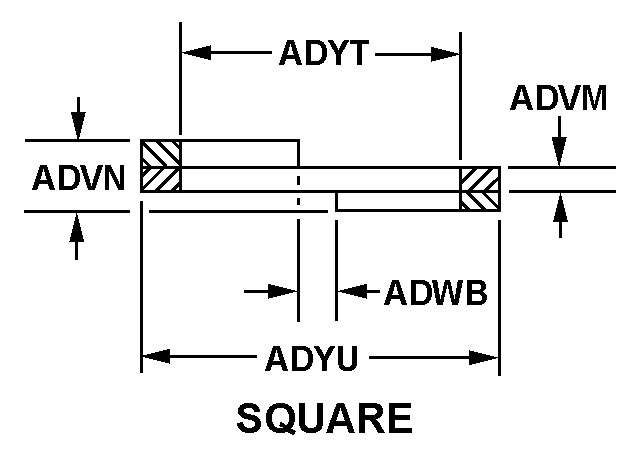

Drawings & Photos | NSN 5330-00-133-2063
Demand History | NSN 5330-00-133-2063
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-133-2063 | 2017-01-26 | 200 | DIBBS |
| 5330-00-133-2063 | 2016-03-63 | 100 | DIBBS |
| 5330-00-133-2063 | 2015-10-300 | 40 | DIBBS |
| 5330-00-133-2063 | 2012-08-215 | 40 | DIBBS |
| 5330-00-133-2063 | 2011-07-206 | 50 | DIBBS |
| 5330-00-133-2063 | 2010-09-273 | 30 | DIBBS |
| 5330-00-133-2063 | 2009-07-200 | 20 | DIBBS |
| 5330-00-133-2063 | 2008-07-186 | 30 | DIBBS |
Cross Reference | NSN 5330-00-133-2063
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 120-70042-18502 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| 120-70042-18502 | 79470 | DANA CORP WEATHERHEAD DIV |
| RR185CD | 000Y2 | MILLS/STERLING AEROSPACE INC |
| RR185CD | 51814 | SMALLEY STEEL RING CO. |
| RR185CD | 80756 | SPIROLOX, INC. |
| WH-185-CD | 51814 | SMALLEY STEEL RING CO. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-133-2063
Technical Data | NSN 5330-00-133-2063
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND DICHROMATE OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | D93 SQUARE |
| CROSS-SECTIONAL THICKNESS | 0.024 INCHES NOMINAL |
| CROSS-SECTIONAL HEIGHT | 0.046 INCHES MINIMUM AND 0.052 INCHES MAXIMUM |
| DISTANCE BETWEEN ENDS | 0.031 INCHES NOMINAL |
| CENTER HOLE DIAMETER | 1.701 INCHES MINIMUM AND 1.721 INCHES MAXIMUM |
| PERIPHERAL DIAMETER | 1.937 INCHES MINIMUM AND 1.957 INCHES MAXIMUM |
| JOINT TYPE | SCARF-BUTT RETAINER |
Restrictions/Controls & Freight Information | NSN 5330-00-133-2063
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-133-2063
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
