NSN 5330-00-111-6699 8106160AHR, 8106160A-HR , 84269631
Product Details | PACKING WITH RETAINER

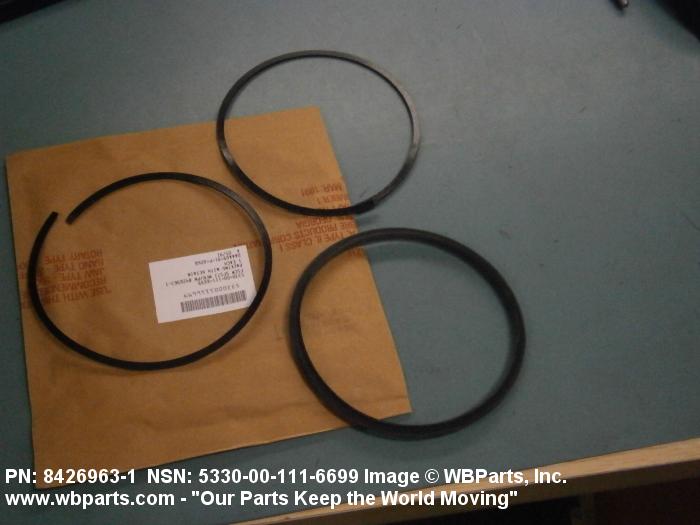

5330-00-111-6699 An item composed of a compressible nonmetallic ring which may be loosely fitted into a noncompressible retaining ring, or may be of one piece construction with the compressible ring molded and/or mechanically connected to the retainer. It is specifically designed to form a fluid tight seal when compressed by a packing nut, gland, etc., between fixed surfaces and a cylindrical item passing through it. Excludes SEAL, PLAIN, ENCASED.
Part Alternates: 8106160AHR, 8106160A-HR , 84269631, 8426963-1, 5330-00-111-6699, 00-111-6699, 5330001116699, 001116699
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 SEP 1968 | 00-111-6699 | 05680 ( PACKING WITH RETAINER ) |

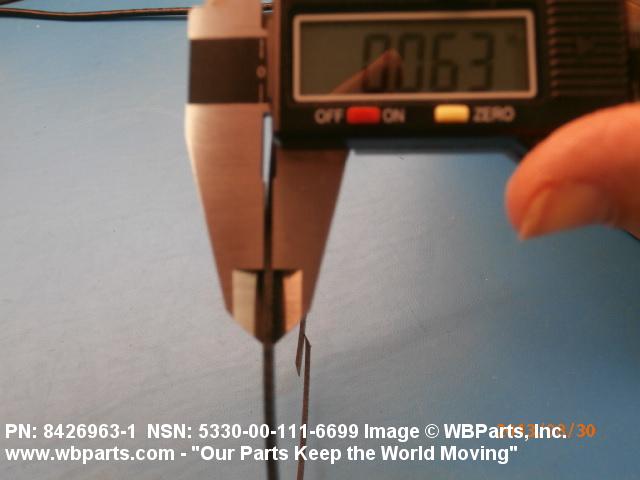

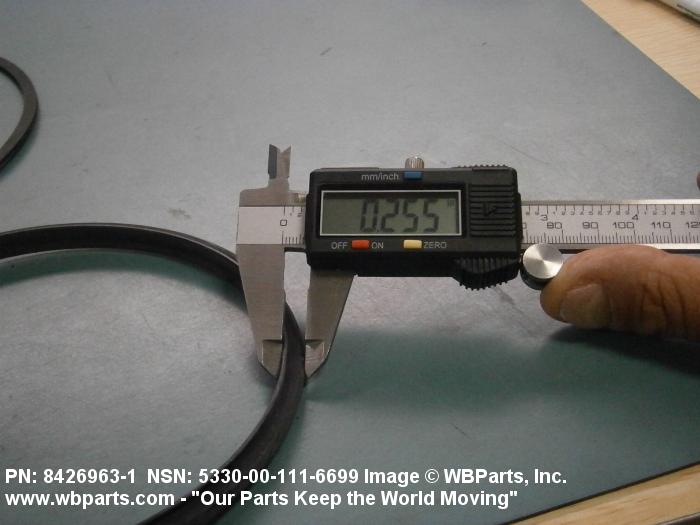

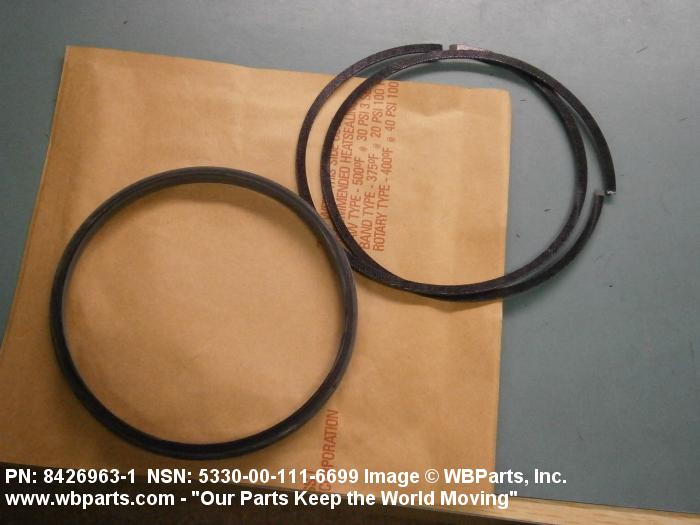

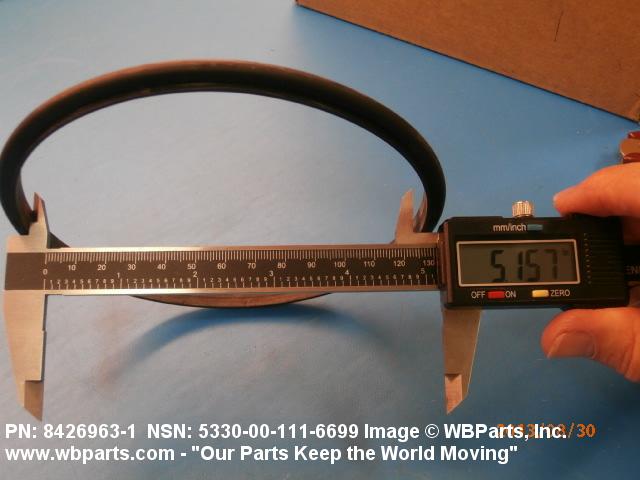

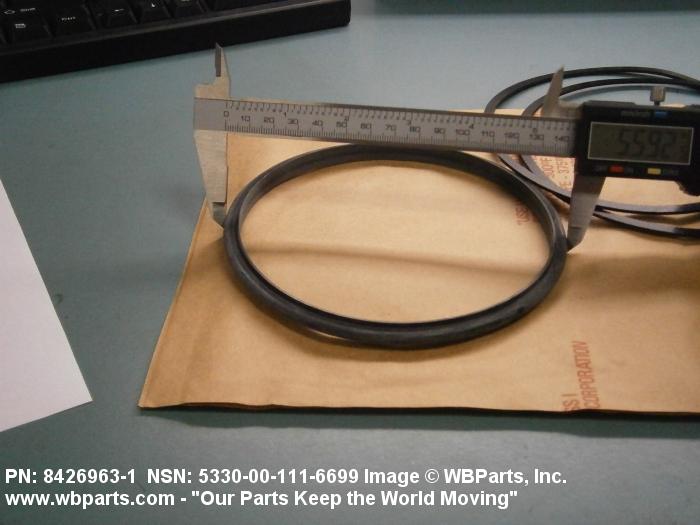

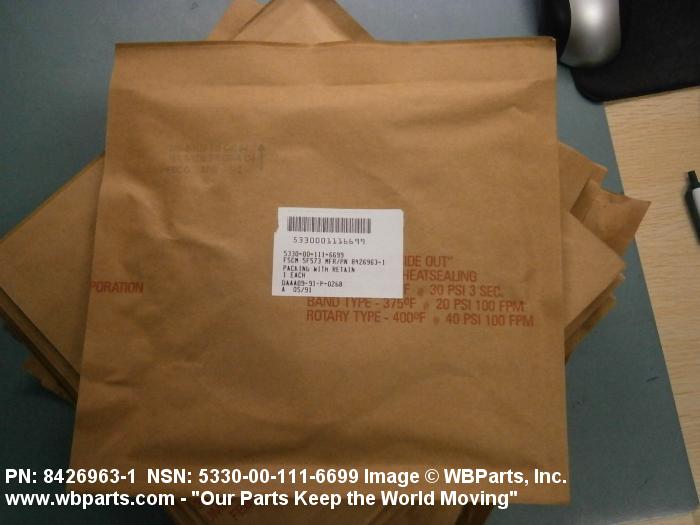

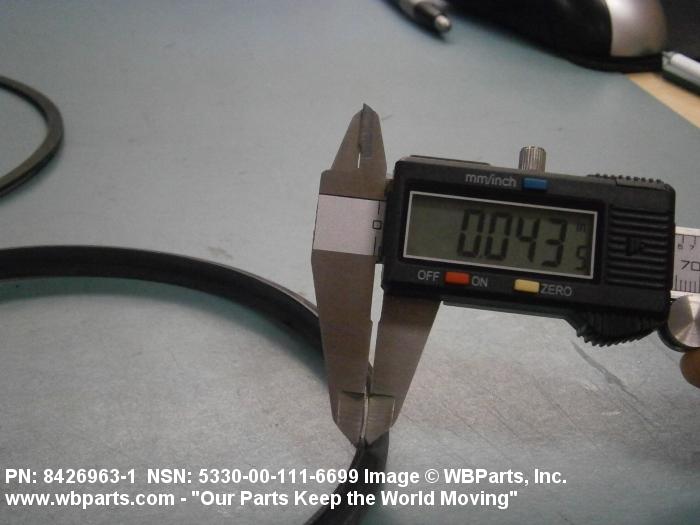

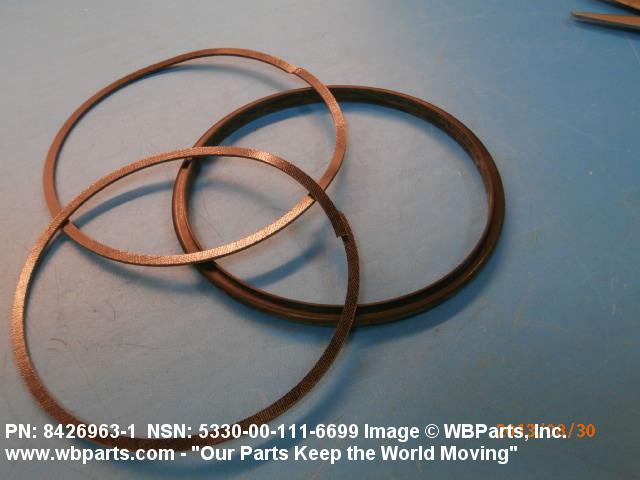

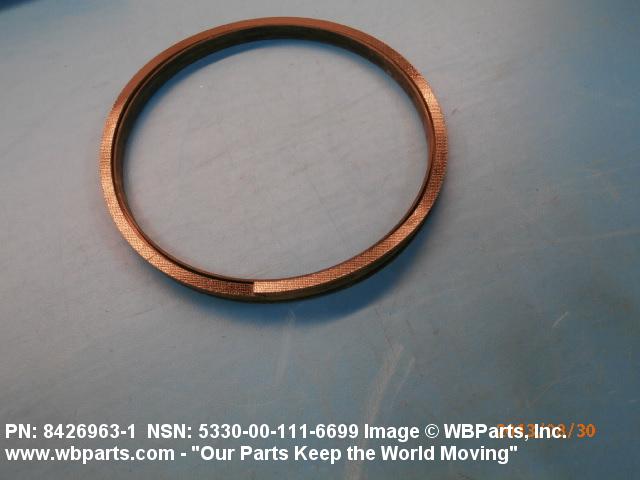

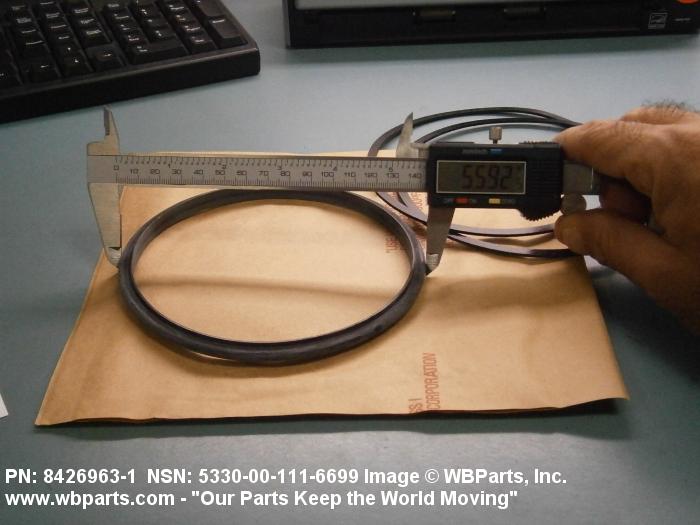

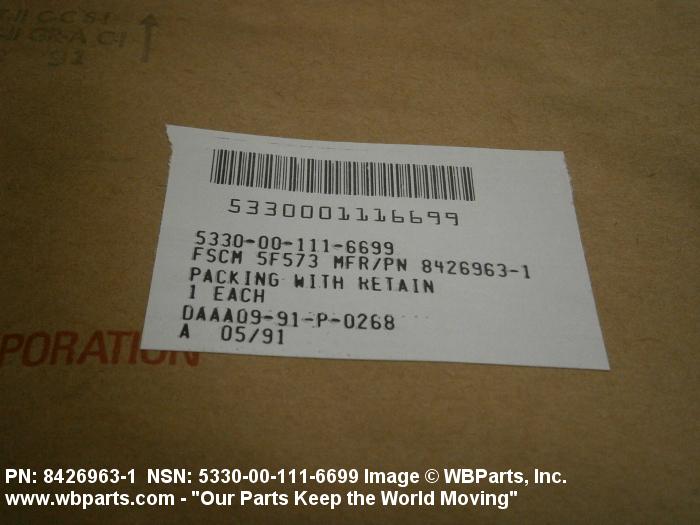

Drawings & Photos | NSN 5330-00-111-6699
Demand History | NSN 5330-00-111-6699
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 84269631 | 2015-05-128 | 16 | US |
| 5330-00-111-6699 | 2014-01-20 | 40 | United States |
| 5330-00-111-6699 | 2013-12-365 | 40 | KR |
| 84269631 | 2013-08-234 | 10 | United States |
| 5330-00-111-6699 | 2013-07-207 | 10 | United States |
| 5330-00-111-6699 | 2013-07-198 | 20 | United States |
| 84269631 | 2013-07-191 | 20 | United States |
| 84269631 | 2013-06-168 | 20 | KR |
| 84269631 | 2013-06-168 | 20 | KR |
| 84269631 | 2010-01-07 | 16 | US |
| 5330-00-111-6699 | 2009-02-52 | 50 | DIBBS |
| 5330-00-111-6699 | 2009-02-37 | 10 | Turkey |
| 5330-00-111-6699 | 2009-01-28 | 8 | DIBBS |
| 5330-00-111-6699 | 2009-01-28 | 104 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-00-111-6699
Related Products | NSN 5330-00-111-6699
Technical Data | NSN 5330-00-111-6699
| Characteristic | Specifications |
|---|---|
| MATERIAL | COTTON AND RUBBER SYNTHETIC OVERALL |
| CONSTRUCTION | ONE-PIECE |

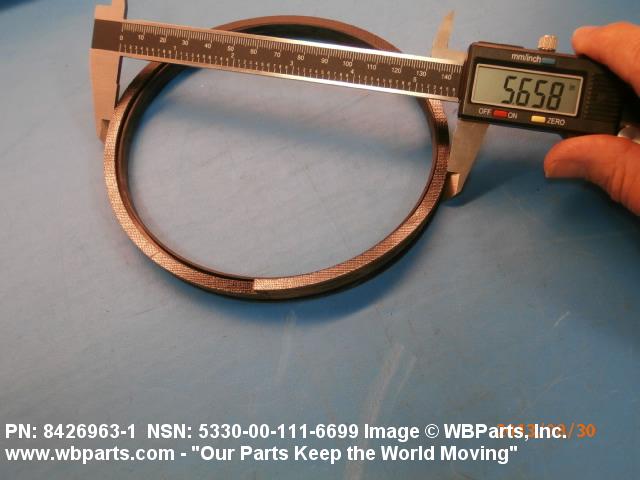

| OUTSIDE DIAMETER | 5.620 INCHES NOMINAL |

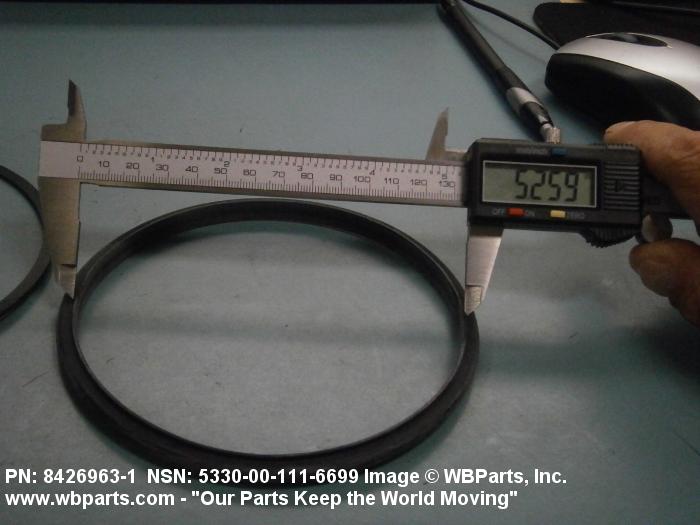

| PACKING INSIDE DIAMETER | 5.120 INCHES NOMINAL |

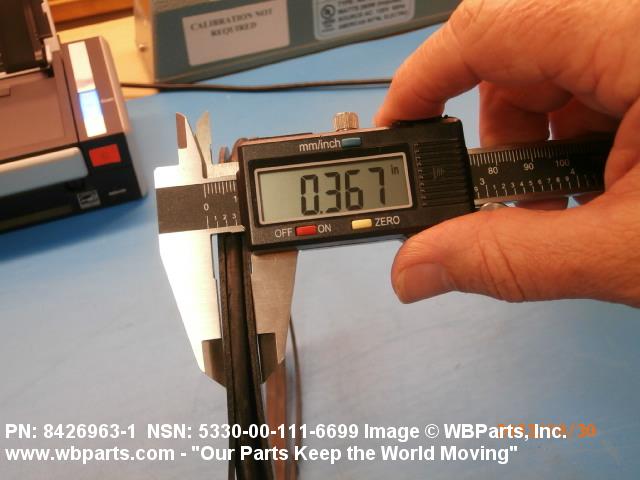

| RETAINER THICKNESS | 0.366 INCHES MINIMUM AND 0.371 INCHES MAXIMUM |
| PACKING RING CROSS-SECTIONAL DIAMETER | 0.366 INCHES MINIMUM AND 0.371 INCHES MAXIMUM |
| MANUFACTURERS CODE | 19204 |
| DESIGN CONTROL REFERENCE | 8426963-1 |
Restrictions/Controls & Freight Information | NSN 5330-00-111-6699
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156600 | PLASTIC/RUBBER ARTICLE VIZ: |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-111-6699
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
4 EA : Each |
