NSN 5330-00-057-5709 MS28774006, MS28774-006, MS2877400613
Product Details | PACKING RETAINER
5330-00-057-5709 An item designed to fit over a packing gland by mating with a surface of a second part which together will retain into a narrow groove or confined space the PACKING, PREFORMED or O-RING, or an item designed to fit over a rod or shaft, to mate with a stuffing box to confine PACKING MATERIAL. It may function as a static or dynamic seal retainer with the packing located on, around, or in the centerline direction of the rod or shaft axis. It may have holes or joints for mounting, be threaded or unthreaded. See also PACKING NUT and PACKING NUT, STUFFING TUBE.
Part Alternates: MS28774006, MS28774-006, MS2877400613, MS28774-006-13, S112480063, S11248-006-3, V1E10502 ITEM 40, V1E10502ITEM40, V3D10075PC39, V3E10436 ITEM 13, V3E10436ITEM13, 10119430 , 23200063, 2320-0063, 27006, 2700-6, 560660A, 560660-A, 90116-006-3, 5330-00-057-5709, 00-057-5709, 5330000575709, 000575709, 901160063
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-057-5709 | 13706 ( RETAINER, PACKING ) |

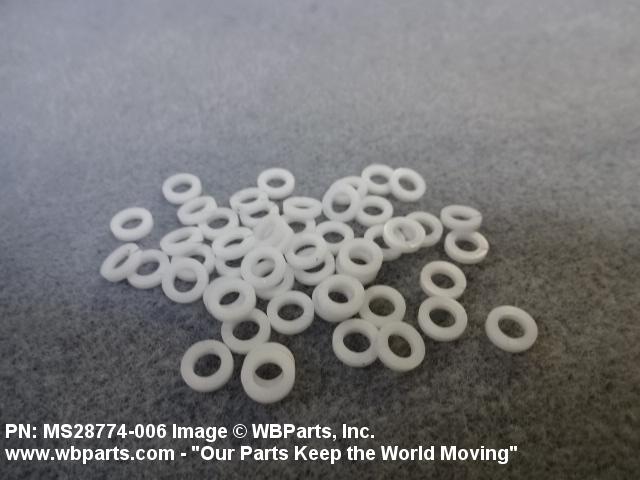

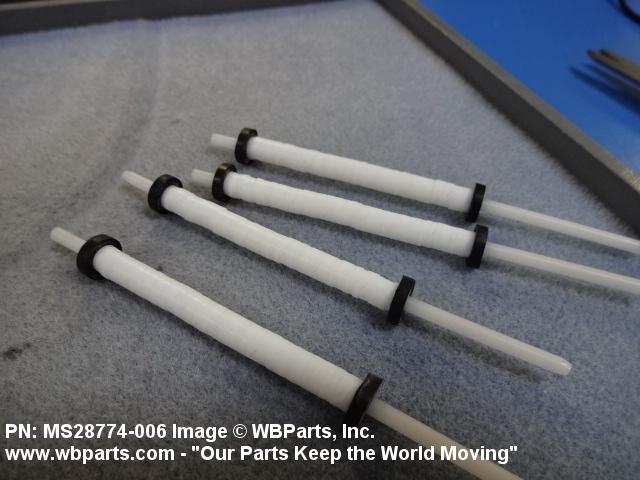

Drawings & Photos | NSN 5330-00-057-5709
Demand History | NSN 5330-00-057-5709
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-057-5709 | 2022-02-41 | 220 | UK |
| 5330-00-057-5709 | 2017-10-295 | 5129 | DIBBS |
| 5330-00-057-5709 | 2017-05-128 | 6620 | DIBBS |
| 5330-00-057-5709 | 2015-06-165 | 4511 | DIBBS |
| 5330-00-057-5709 | 2015-06-159 | 3959 | DIBBS |
| 5330-00-057-5709 | 2014-06-159 | 5990 | DIBBS |
| 5330-00-057-5709 | 2013-01-24 | 6000 | DIBBS |
| MS28774-006 | 2012-05-145 | 50 | MM |
| MS28774006 | 2012-03-76 | 1 | Malaysia |
| 2700-6 | 2012-03-72 | 20 | Uruguay |
| 5330-00-057-5709 | 2012-02-58 | 100 | US |
| 5330-00-057-5709 | 2011-02-45 | 1 | TW |
| 5330-00-057-5709 | 2011-02-45 | 1000 | DIBBS |
| 5330-00-057-5709 | 2008-12-339 | 100 | Philippines |
| 5330-00-057-5709 | 2008-12-339 | 100 | Philippines |
| 27006 | 2008-10-296 | 8 | India |
Cross Reference | NSN 5330-00-057-5709
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2320-0063 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 2700-6 | 94592 | FLUID CONDITIONING PRODUCTS, INC. |
| 560660-A | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 90116-006-3 | 16780 | EATON AEROSPACE LLC DBA SOLENOID VALVES |
| MS28774-006 | 06GU9 | HERCULES HYDRAULICS INC. |
| MS28774-006 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS28774-006-13 | 09257 | TRELLEBORG SEALING SOLUTIONS US, INC. |
| S11248-006-3 | 09257 | TRELLEBORG SEALING SOLUTIONS US, INC. |
| S11248-006-3 | 97820 | SHAMBAN POLYMER TECH GROUP |
| S11248-006-3 | R1120 | SATAIR A/S |
| V1E10502 ITEM 40 | 99517 | VACCO INDUSTRIES |
| V3D10075PC39 | 99517 | VACCO INDUSTRIES |
| V3E10436 ITEM 13 | 99517 | VACCO INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-00-057-5709
Related Products | NSN 5330-00-057-5709
Technical Data | NSN 5330-00-057-5709
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC TETRAFLUOROETHYLENE OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | D2 SQUARE/RECTANGULAR |
| CROSS-SECTIONAL HEIGHT | 0.045 INCHES MINIMUM AND 0.052 INCHES MAXIMUM |
| CENTER HOLE DIAMETER | 0.139 INCHES MINIMUM AND 0.141 INCHES MAXIMUM |
| PERIPHERAL DIAMETER | 0.243 INCHES MINIMUM AND 0.249 INCHES MAXIMUM |
| JOINT TYPE | SCARF-PERIPHERAL RETAINER |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS28774-006 |
Restrictions/Controls & Freight Information | NSN 5330-00-057-5709
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-057-5709
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
