NSN 5330-00-003-9301 NAS1523C5Y, NAS1598C5Y, 00-003-9301
Product Details | PACKING WITH RETAINER

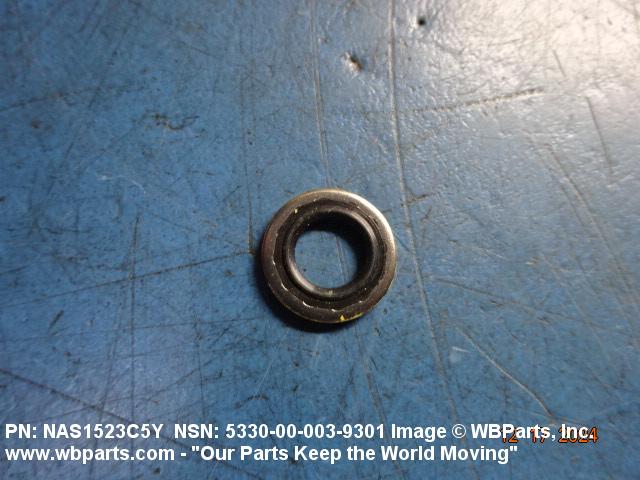

5330-00-003-9301 An item composed of a compressible nonmetallic ring which may be loosely fitted into a noncompressible retaining ring, or may be of one piece construction with the compressible ring molded and/or mechanically connected to the retainer. It is specifically designed to form a fluid tight seal when compressed by a packing nut, gland, etc., between fixed surfaces and a cylindrical item passing through it. Excludes SEAL, PLAIN, ENCASED.
Part Alternates: NAS1523C5Y, NAS1598C5Y, 5330-00-003-9301, 00-003-9301, 5330000039301, 000039301
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 MAY 1972 | 00-003-9301 | 05680 ( PACKING WITH RETAINER ) |
Demand History | NSN 5330-00-003-9301
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-003-9301 | 2024-07-185 | 10300 | DIBBS |
| 5330-00-003-9301 | 2024-06-158 | 10300 | DIBBS |
| 5330-00-003-9301 | 2024-03-71 | 9691 | DIBBS |
| 5330-00-003-9301 | 2024-02-60 | 9691 | DIBBS |
| 5330-00-003-9301 | 2023-10-275 | 13115 | DIBBS |
| 5330-00-003-9301 | 2023-08-233 | 1334 | DIBBS |
| 5330-00-003-9301 | 2023-07-187 | 1334 | DIBBS |
| 5330-00-003-9301 | 2023-05-141 | 1476 | DIBBS |
| 5330-00-003-9301 | 2022-04-103 | 1072 | DIBBS |
| 5330-00-003-9301 | 2022-03-88 | 1072 | DIBBS |
| 5330-00-003-9301 | 2019-06-153 | 5000 | DIBBS |
| 5330000039301 | 2018-03-78 | 1000 | US |
| 5330-00-003-9301 | 2013-09-247 | 1 | DIBBS-RFPs |
| 5330-00-003-9301 | 2013-07-206 | 1 | DIBBS-RFPs |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-00-003-9301
Related Products | NSN 5330-00-003-9301
Technical Data | NSN 5330-00-003-9301
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 301 OR STEEL COMP 302 RETAINER |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5059 1/2 HARD OR ANNEALED MIL SPEC ALL MATERIAL RESPONSES RETAINER |
| SURFACE TREATMENT | PASSIVATE RETAINER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE RETAINER |
| CONSTRUCTION | ONE-PIECE |
| OUTSIDE DIAMETER | 0.588 INCHES MINIMUM AND 0.613 INCHES MAXIMUM |
| PACKING INSIDE DIAMETER | 0.291 INCHES MINIMUM AND 0.311 INCHES MAXIMUM |
| RETAINER THICKNESS | 0.045 INCHES MINIMUM AND 0.055 INCHES MAXIMUM |
| PACKING RING CROSS-SECTIONAL DIAMETER | 0.067 INCHES MINIMUM AND 0.077 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS 1523 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5330-00-003-9301
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
