NSN 5325-01-624-7971 M22529/1-2C-35 , M2252912C35, 01-624-7971
Product Details | METALLIC GROMMET
5325-01-624-7971 A two-piece metallic item, one piece usually tubular in appearance and flanged at one end, the other piece a plain tooth or spur washer or retaining ring. It is primarily used for lining and reinforcing the edges of holes. The unflanged end is designed to be inserted through a hole and retained in place by being crimped over the plain or tooth washer or retaining ring or by clinching action between the spur washer and the flanged end. Excludes EYELET, METALLIC.
Part Alternates: M22529/1-2C-35 , M2252912C35, 5325-01-624-7971, 01-624-7971, 5325016247971, 016247971
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 2014015 | 01-624-7971 | 06314 ( GROMMET, METALLIC ) |

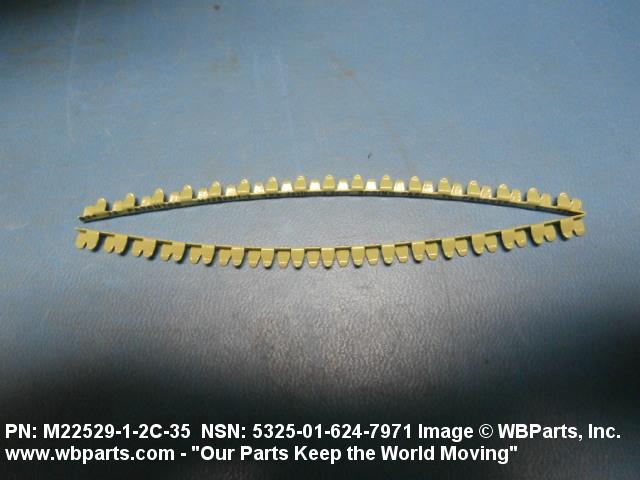

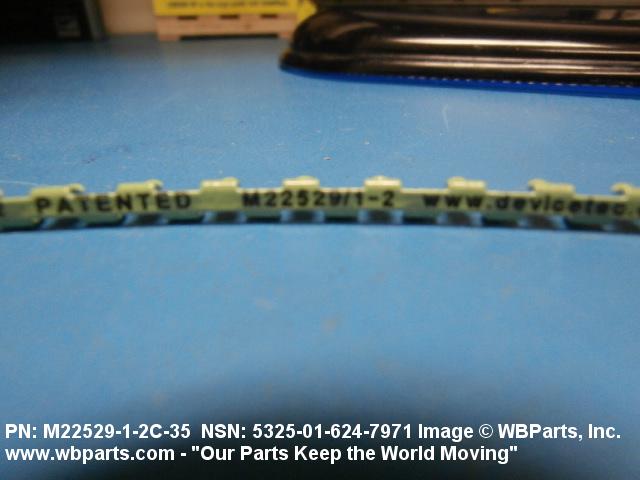

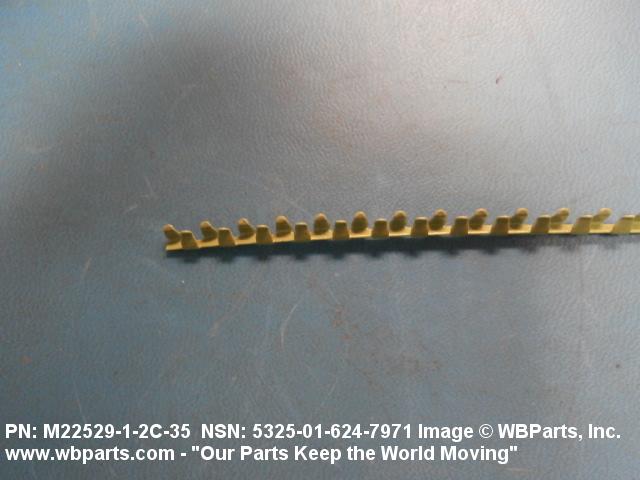

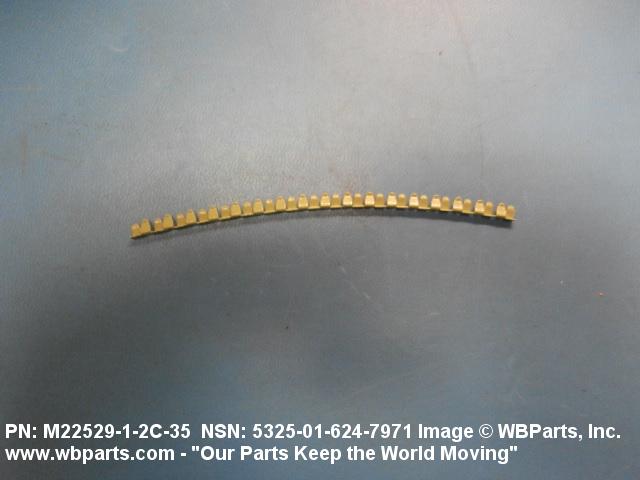

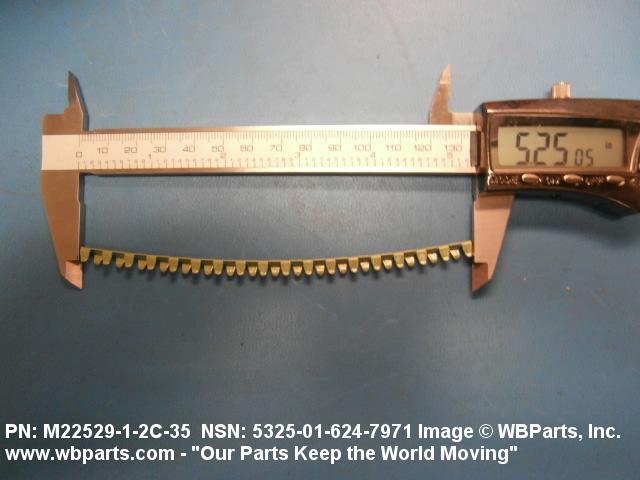

Drawings & Photos | NSN 5325-01-624-7971
Demand History | NSN 5325-01-624-7971
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M2252912C35 | 2020-07-198 | 5 | us |
| M2252912C35 | 2016-10-301 | 32 | US |
| 5325-01-624-7971 | 2015-10-295 | 48 | United States |
| 5325-01-624-7971 | 2015-10-282 | 48 | DIBBS |
Cross Reference | NSN 5325-01-624-7971
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M22529/1-2C-35 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-624-7971
Technical Data | NSN 5325-01-624-7971
| Characteristic | Specifications |
|---|---|
| III MATERIAL | STEEL COMP 301 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5517,AMS5903 OR AMS5907 NATIONAL STD/SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | THERMOSETTING EPOXY,COLOR:LIME GREEN PER FED-STD-595,NO.14533 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| BARREL STYLE | FUNNEL FLANGE STRAIGHT TYPE |

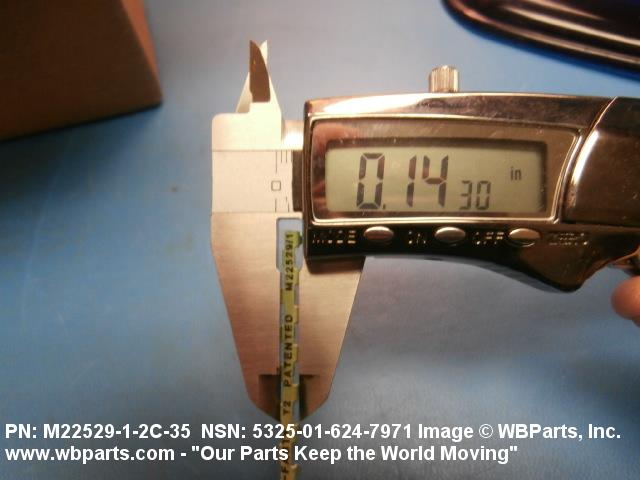

| BARREL OUTSIDE DIAMETER | 0.14 INCHES NOMINAL |

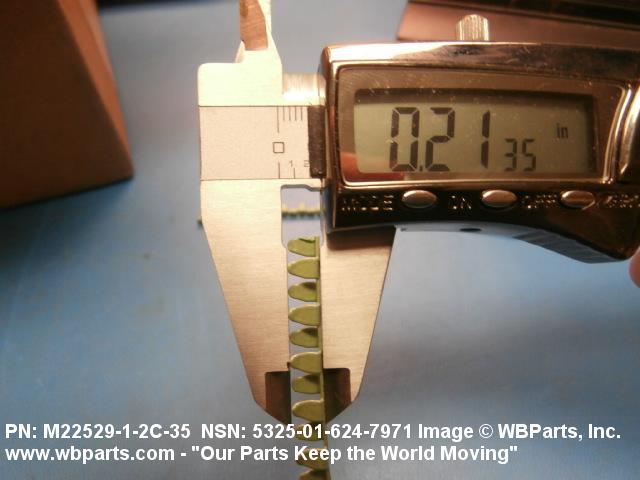

| BARREL OVERALL HEIGHT | 0.20 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 80205-NASM22529/1 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | GROMMET,COMPOSITE,EDGING |
Restrictions/Controls & Freight Information | NSN 5325-01-624-7971
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094533 | EYELETS OR EYELET HOOKS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-624-7971
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
