NSN 5325-01-612-6623 9600K39 , 01-612-6623, 016126623
Product Details | NONMETALLIC GROMMET
5325-01-612-6623 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.
Part Alternates: 9600K39 , 5325-01-612-6623, 01-612-6623, 5325016126623, 016126623
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 2012291 | 01-612-6623 | 33729 ( GROMMET, NONMETALLIC ) |

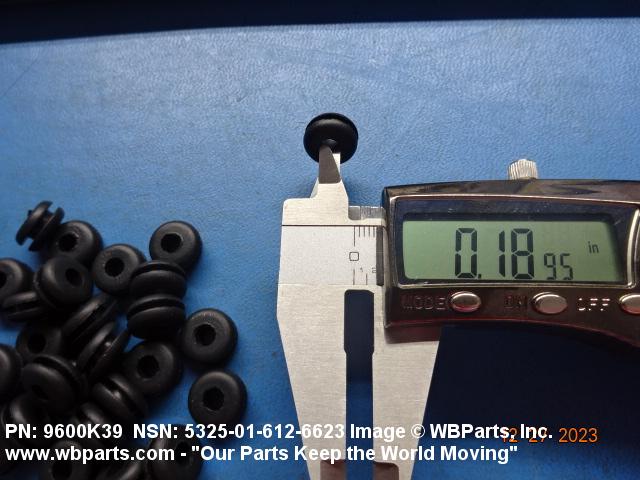

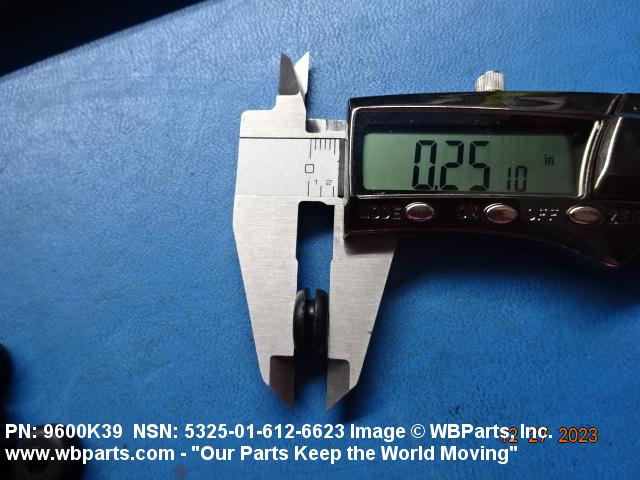

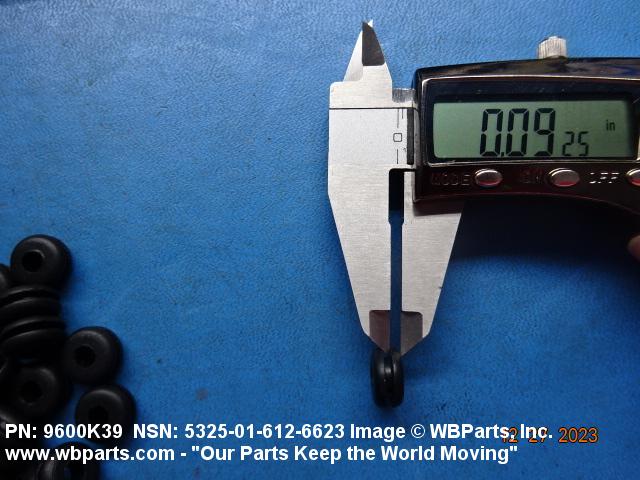

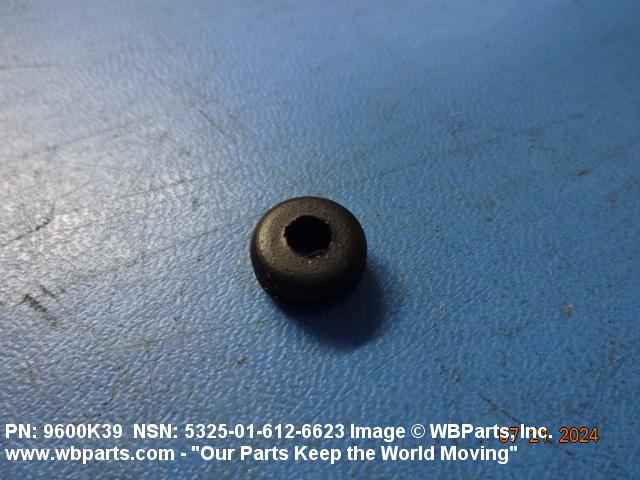

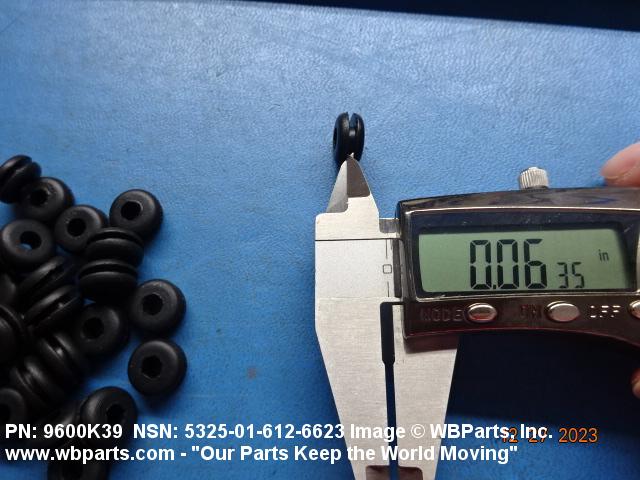

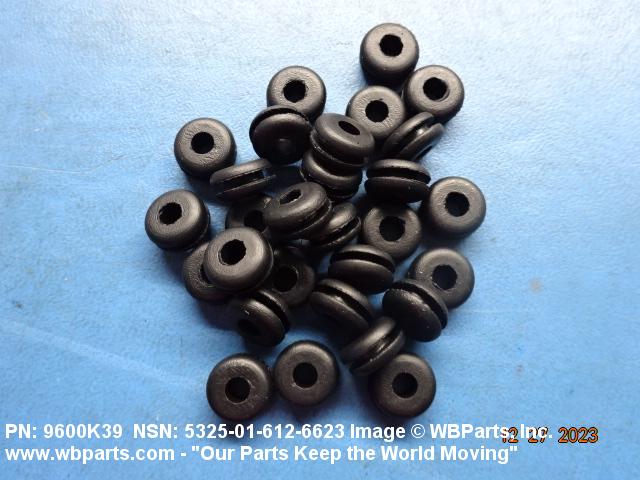

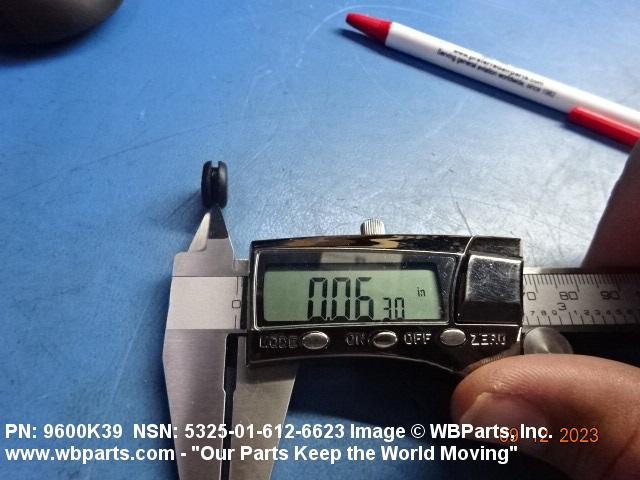

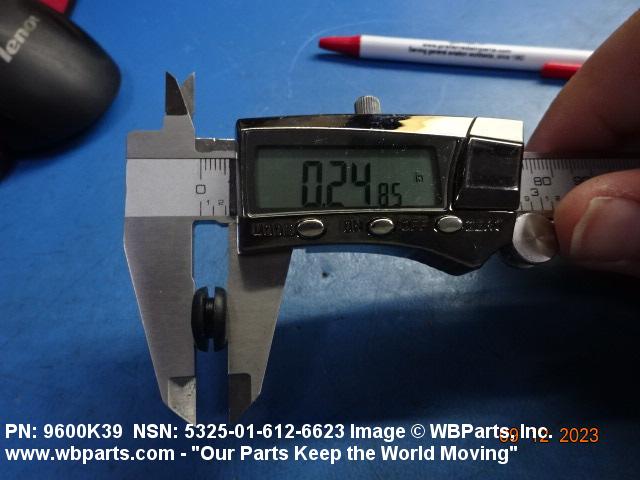

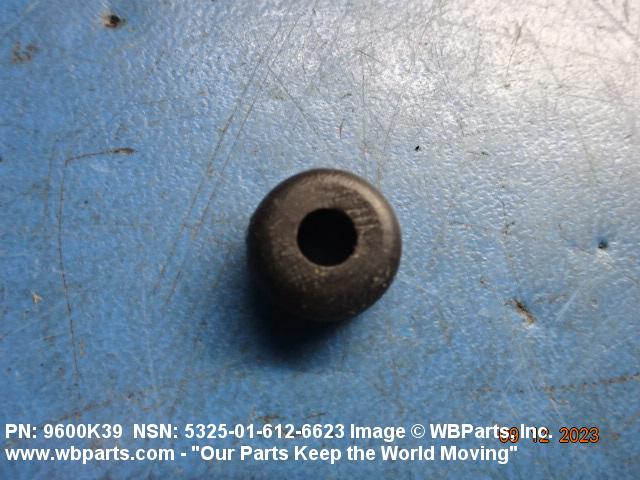

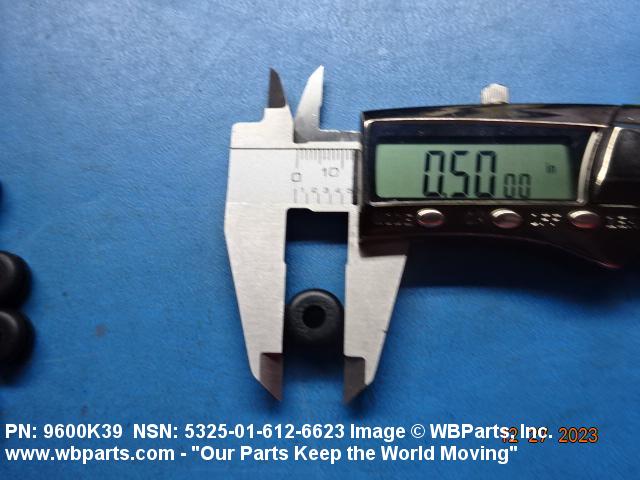

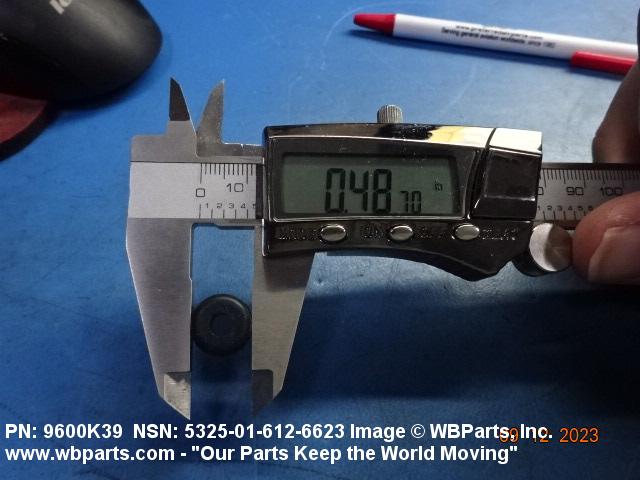

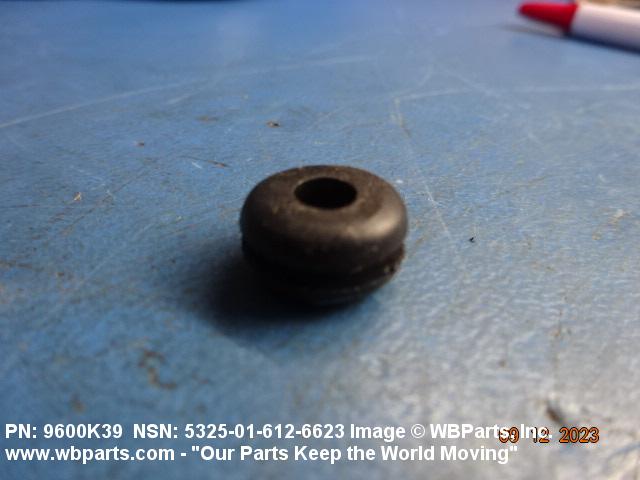

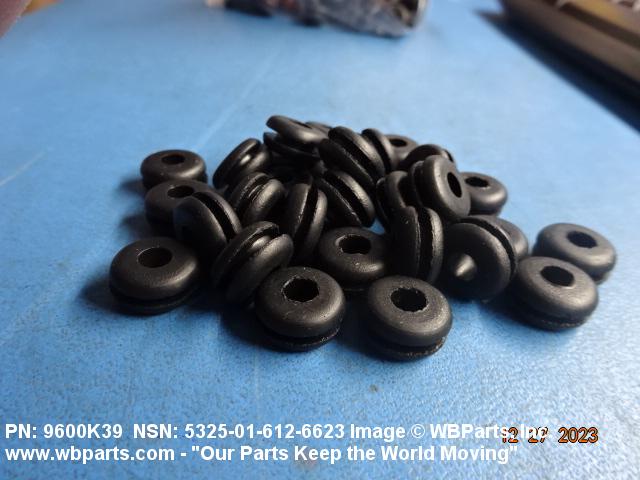

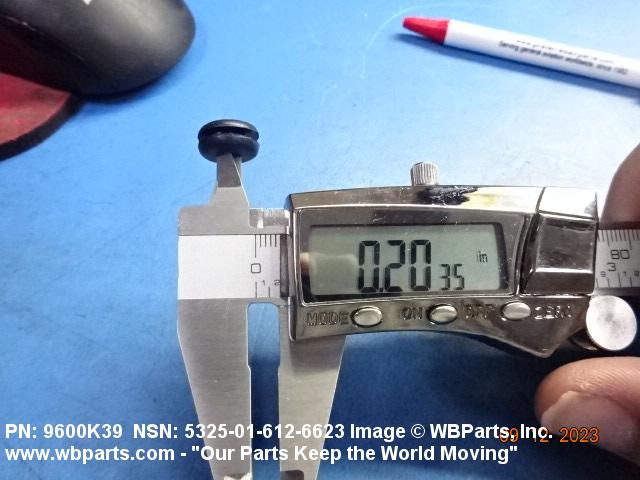

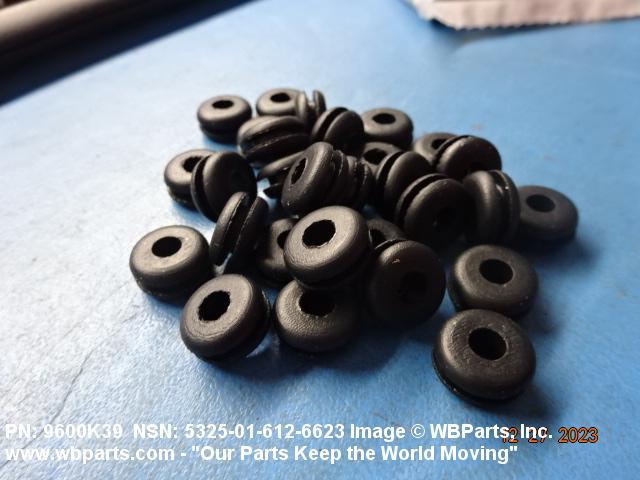

Drawings & Photos | NSN 5325-01-612-6623
Demand History | NSN 5325-01-612-6623
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9600K39 | 2024-04-110 | 500 | United States |
| 9600K39 | 2023-12-354 | 300 | United States |
| 9600K39 | 2023-12-352 | 300 | United States |
| 9600K39 | 2023-09-251 | 500 | United States |
| 9600K39 | 2023-08-222 | 500 | United States |
| 5325-01-612-6623 | 2018-07-198 | 17 | DIBBS |
| 5325-01-612-6623 | 2018-03-79 | 79 | DIBBS |
| 5325-01-612-6623 | 2015-12-344 | 100 | DIBBS |
| 5325-01-612-6623 | 2015-10-278 | 100 | DIBBS |
| 5325-01-612-6623 | 2014-07-195 | 100 | DIBBS |
Cross Reference | NSN 5325-01-612-6623
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9600K39 | 39428 | MCMASTER-CARR SUPPLY COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-612-6623
Related Products | NSN 5325-01-612-6623
Technical Data | NSN 5325-01-612-6623
| Characteristic | Specifications |
|---|---|
| III MATERIAL | RUBBER BUTADIENE-STYRENE CLASS SBR OVERALL |
| COLOR | BLACK OVERALL |
| GROMMET STYLE | ROUND |
| HOLE DIAMETER | 0.1875 INCHES NOMINAL |
| GROOVE WIDTH | 0.0625 INCHES NOMINAL |
| FLANGE THICKNESS | 0.0925 INCHES NOMINAL |
| OVERALL HEIGHT | 0.250 INCHES NOMINAL |
| LARGE FLANGE OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| GROOVE OUTSIDE DIAMETER | 0.3125 INCHES NOMINAL |
| GROMMET CONSTRUCTION TYPE | SOLID |
| SPECIAL FEATURES | TEMP RANGE -56F TO +200F |
| III END ITEM IDENTIFICATION | MRAP BUFFALO A1; MRAP BUFFALO MK2A2 |
Restrictions/Controls & Freight Information | NSN 5325-01-612-6623
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 846 | unknown |
| Originating Activity Code | GX | HQ Defense Logistics Agency, Enterprise Business Systems Fort Belvoir, VA 22060 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-612-6623
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Q | 36 months |
| Purchasing | QTY UOM |
1 PG : Package |
