NSN 5325-01-590-0139 33975T52, 01-590-0139, 015900139
Product Details | RETAINING RING
5325-01-590-0139 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Part Alternates: 33975T52, 5325-01-590-0139, 01-590-0139, 5325015900139, 015900139
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 NOV 2010 | 01-590-0139 | 07623 ( RING, RETAINING ) |

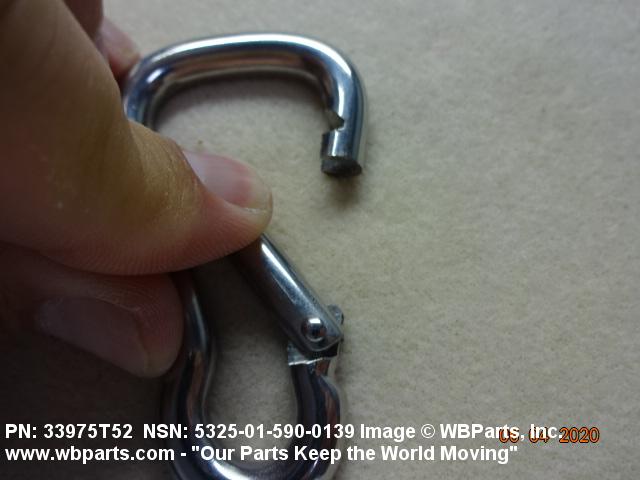

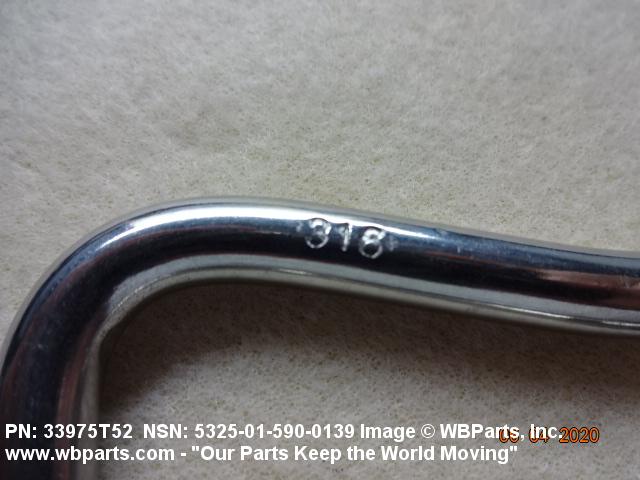

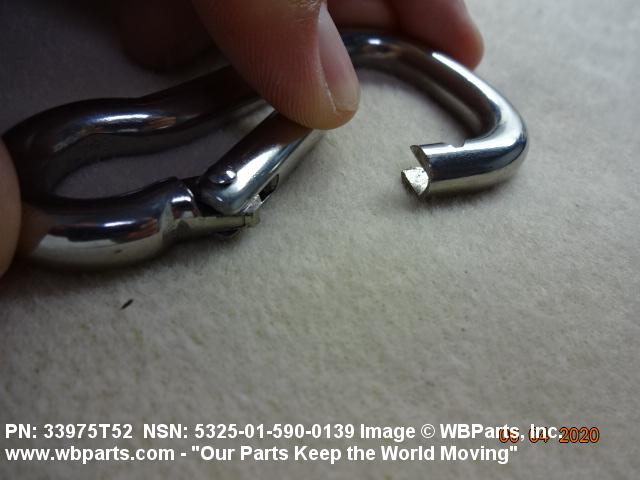

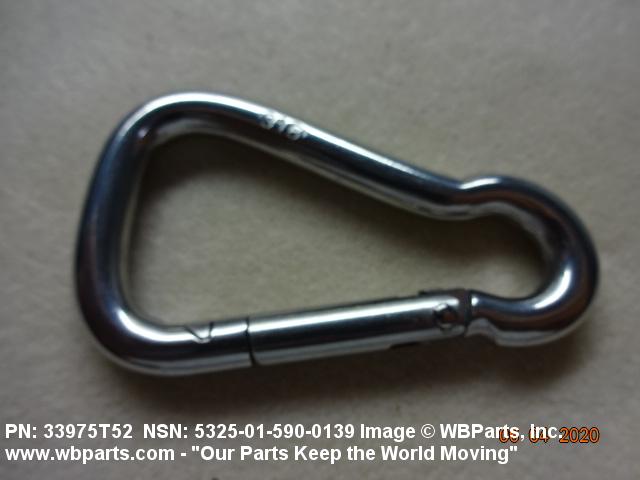

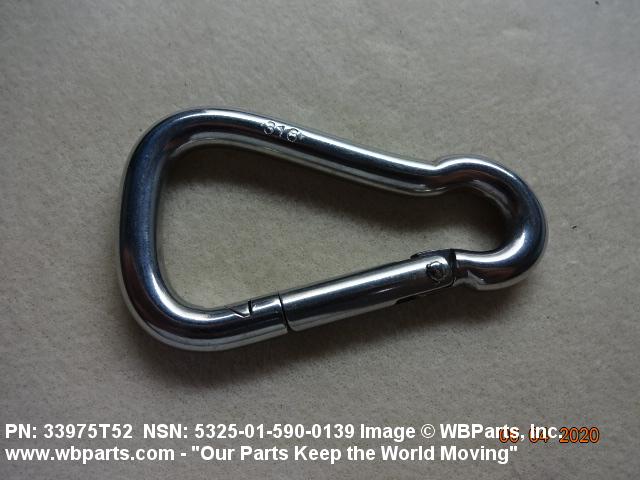

Drawings & Photos | NSN 5325-01-590-0139
Demand History | NSN 5325-01-590-0139
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 33975T52 | 2021-03-73 | 465 | DIBBS |
| 33975T52 | 2021-02-53 | 305 | DIBBS |
| 33975T52 | 2020-11-309 | 371 | DIBBS |
| 5325-01-590-0139 | 2020-05-147 | 1 | United States |
| 33975T52 | 2020-04-98 | 500 | DIBBS |
| 33975T52 | 2019-06-162 | 296 | DIBBS |
| 33975T52 | 2019-01-16 | 296 | DIBBS |
| 5325-01-590-0139 | 2016-11-326 | 367 | DIBBS |
| 5325-01-590-0139 | 2014-05-139 | 207 | DIBBS |
| 5325-01-590-0139 | 2013-10-276 | 100 | DIBBS |
| 5325-01-590-0139 | 2013-08-233 | 107 | DIBBS |
| 5325-01-590-0139 | 2013-06-155 | 38 | DIBBS |
| 5325-01-590-0139 | 2012-09-271 | 50 | DIBBS |
| 5325-01-590-0139 | 2012-08-243 | 21 | DIBBS |
| 5325-01-590-0139 | 2011-12-348 | 21 | DIBBS |
| 5325-01-590-0139 | 2011-10-278 | 21 | DIBBS |
| 5325-01-590-0139 | 2011-09-258 | 21 | DIBBS |
Cross Reference | NSN 5325-01-590-0139
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 33975T52 | 39428 | MCMASTER-CARR SUPPLY COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-590-0139
Related Products | NSN 5325-01-590-0139
Technical Data | NSN 5325-01-590-0139
| Characteristic | Specifications |
|---|---|

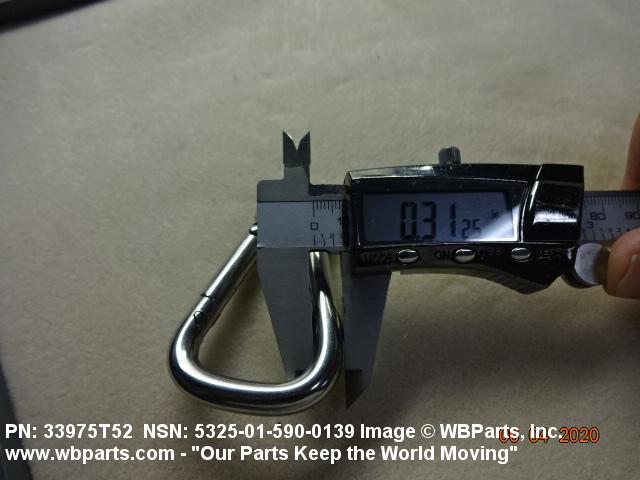

| MATERIAL DIAMETER | 0.312 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | ROUND |
| END ITEM IDENTIFICATION | 4610-01-572-8283, LIGHTWEIGHT WATER PURIFICATION SYSTEM (LWPS) |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | CARABINER-STYLE CONNECTOR (SNAP, SPRING) |

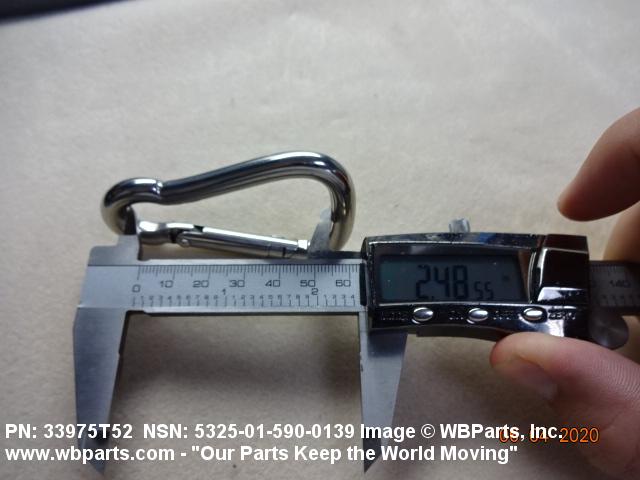

| SPECIAL FEATURES | ID 2.500 INCHES NOM;NOT FOR LIFTING;WORK LOAD LIMIT 460 LBS |
| MATERIAL | STEEL, MIL-S-7720, COMP 316 |
Restrictions/Controls & Freight Information | NSN 5325-01-590-0139
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | PA | Marine Corps Logistics Base Albany, GA 31704-1128 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-590-0139
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
