NSN 5325-01-521-5476 260018, 2600-18, 01-521-5476
Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-01-521-5476 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: 260018, 2600-18, 5325-01-521-5476, 01-521-5476, 5325015215476, 015215476
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 JUN 2004 | 01-521-5476 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

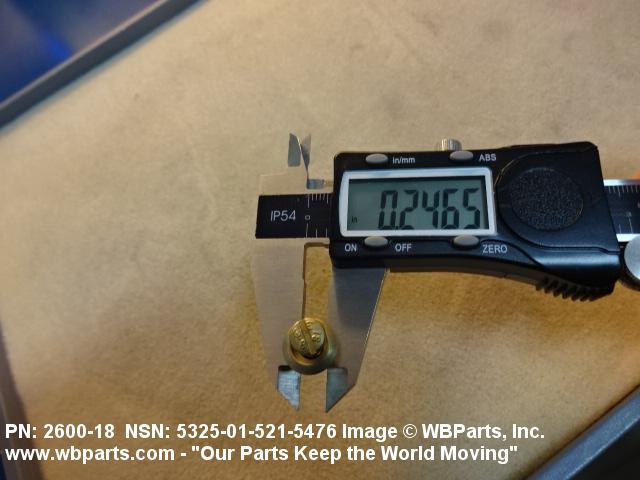

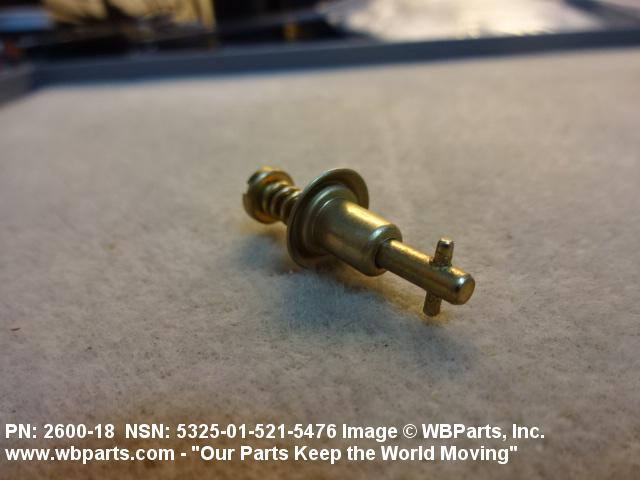

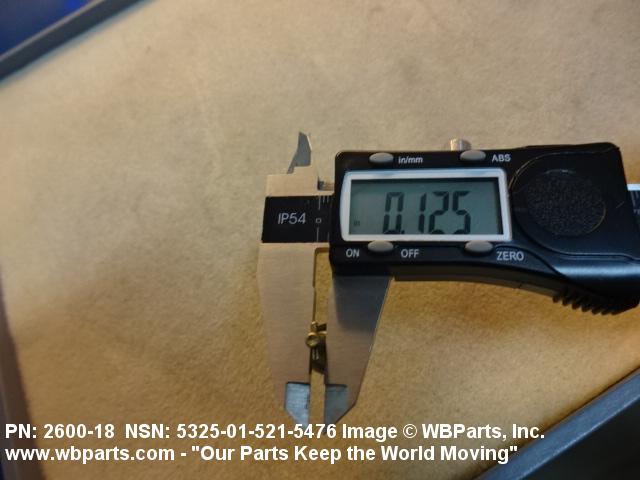

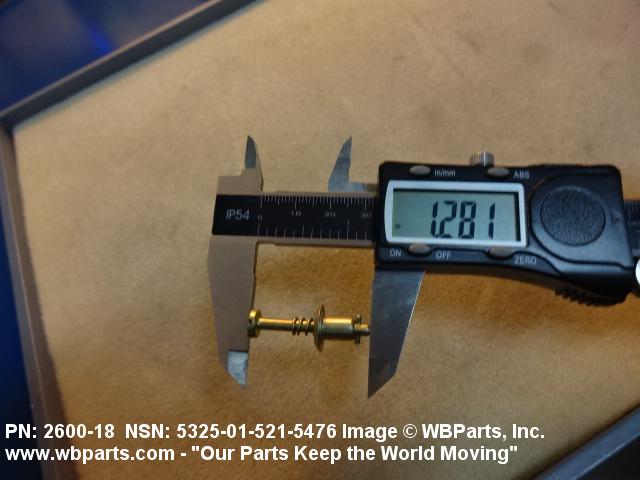

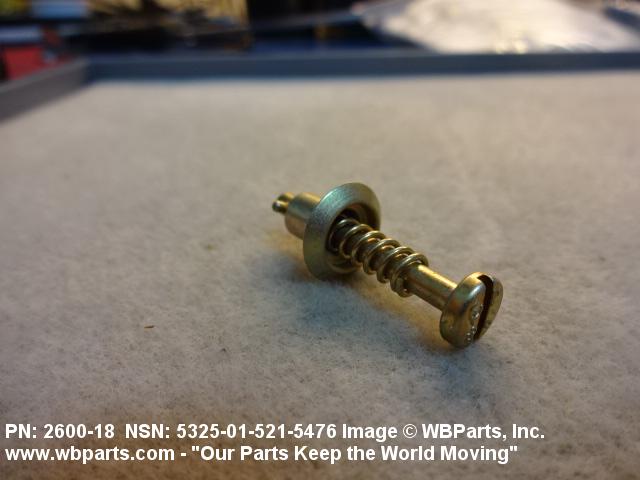

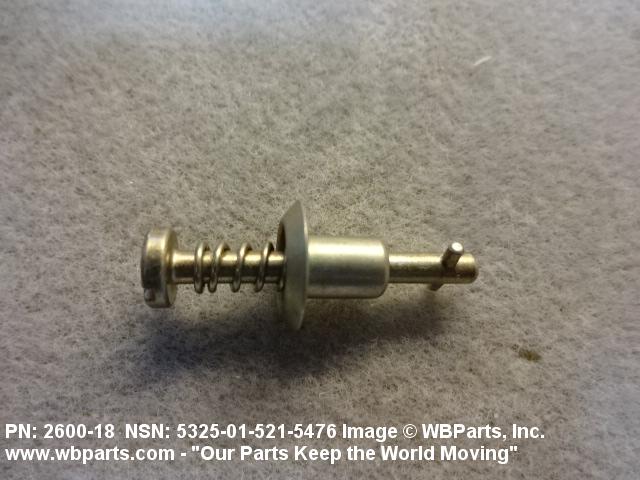

Drawings & Photos | NSN 5325-01-521-5476
Demand History | NSN 5325-01-521-5476
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-521-5476 | 2023-08-227 | 100 | US |
| 2600-18 | 2022-01-13 | 574 | DIBBS |
| 2600-18 | 2021-01-29 | 664 | DIBBS |
| 2600-18 | 2021-01-18 | 664 | DIBBS |
| 2600-18 | 2020-04-120 | 427 | DIBBS |
| 5325-01-521-5476 | 2016-07-189 | 435 | DIBBS |
| 5325-01-521-5476 | 2015-07-209 | 278 | DIBBS |
| 260018 | 2012-06-180 | 2 | United States |
| 5325-01-521-5476 | 2009-11-321 | 300 | DIBBS |
| 5325-01-521-5476 | 2009-10-276 | 40 | DIBBS |
Cross Reference | NSN 5325-01-521-5476
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2600-18 | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-521-5476
Related Products | NSN 5325-01-521-5476
Technical Data | NSN 5325-01-521-5476
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4037 STUD |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-624, 4037 FED SPEC SINGLE MATERIAL RESPONSE STUD |
| SURFACE TREATMENT | CADMIUM STUD |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, CL2 TYPE II FED SPEC SINGLE TREATMENT RESPONSE STUD |
| TURNLOCK STUD HEAD STYLE | 3 FLAT FILLISTER |

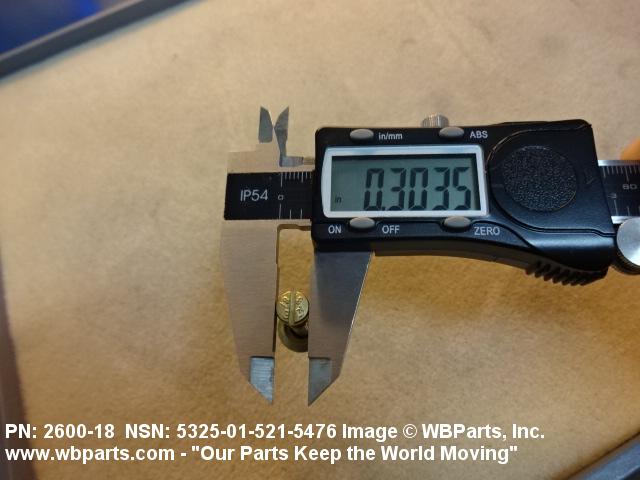

| DIAMETER | 0.298 INCHES MINIMUM AND 0.308 INCHES MAXIMUM |
| STUD HEAD HEIGHT | 0.088 INCHES MINIMUM AND 0.098 INCHES MAXIMUM |
| STUD ASSEMBLY STYLE | 1 STUD ASSEMBLY |
| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | 1.021 INCHES MINIMUM AND 1.036 INCHES MAXIMUM |
| EYELET OUTSIDE DIAMETER | 0.305 INCHES MINIMUM AND 0.315 INCHES MAXIMUM |

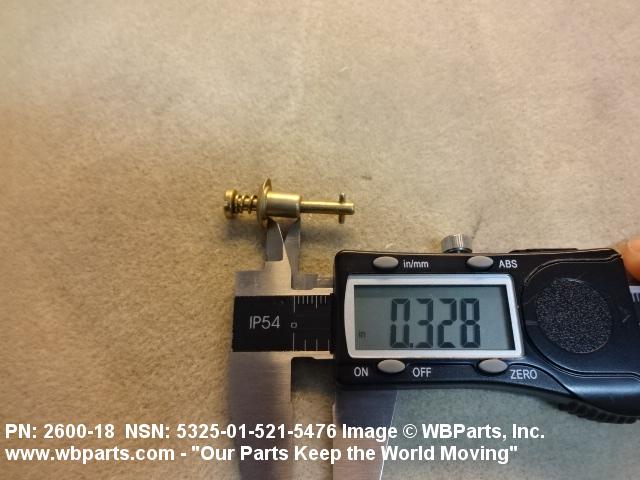

| EYELET LENGTH | 0.322 INCHES NOMINAL |
| SECURING DEVICE TYPE | SPRING |
| DRIVE TYPE | SLOTTED |
| MATERIAL ACCOMMODATED THICKNESS | ANY ACCEPTABLE |
| III END ITEM IDENTIFICATION | NA-KIT |
Restrictions/Controls & Freight Information | NSN 5325-01-521-5476
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-521-5476
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
