NSN 5325-01-517-8276 1003237, 100-3237, 01-517-8276
Product Details | NONMETALLIC GROMMET
5325-01-517-8276 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.
Part Alternates: 1003237, 100-3237, 5325-01-517-8276, 01-517-8276, 5325015178276, 015178276
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 FEB 2004 | 01-517-8276 | 33729 ( GROMMET, NONMETALLIC ) |
Drawings & Photos | NSN 5325-01-517-8276
Cross Reference | NSN 5325-01-517-8276
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100-3237 | 11083 | CATERPILLAR INC. DBA CATERPILLAR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-517-8276
Technical Data | NSN 5325-01-517-8276
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER BARREL |

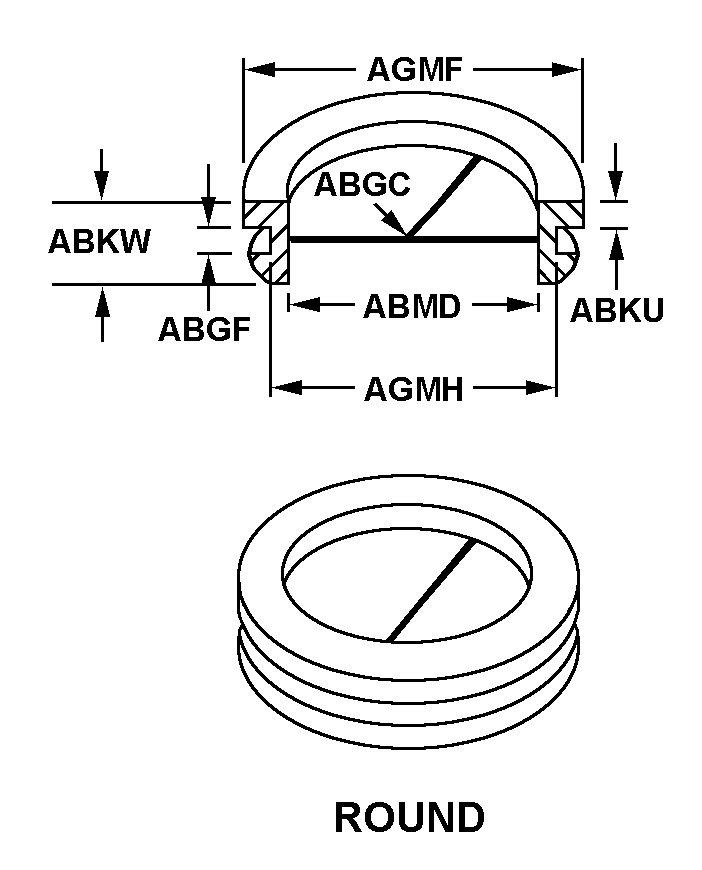

| GROMMET STYLE | 3 ROUND |
| GROOVE WIDTH | 23.0 MILLIMETERS NOMINAL |
| FLANGE THICKNESS | 3.6 MILLIMETERS NOMINAL |
| GROOVE OUTSIDE DIAMETER | 76.5 MILLIMETERS NOMINAL |
| GROMMET CONSTRUCTION TYPE | SOLID |
| III END ITEM IDENTIFICATION | USED ON CATERPILLAR DIESEL ENGINE |
Restrictions/Controls & Freight Information | NSN 5325-01-517-8276
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
