NSN 5325-01-495-1011 15S1171AD, 15S1-17-1AD, 01-495-1011
Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-01-495-1011 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: 15S1171AD, 15S1-17-1AD, 5325-01-495-1011, 01-495-1011, 5325014951011, 014951011
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 MAR 2002 | 01-495-1011 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |
Drawings & Photos | NSN 5325-01-495-1011
Cross Reference | NSN 5325-01-495-1011
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 15S1-17-1AD | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-495-1011
Technical Data | NSN 5325-01-495-1011
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | NICKEL OVERALL |

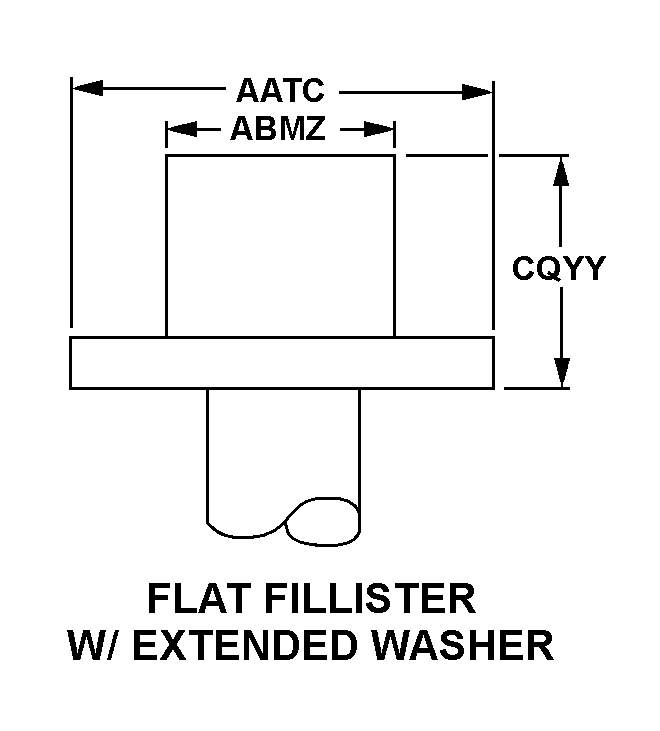

| TURNLOCK STUD HEAD STYLE | 23 FLAT FILLISTER W/EXTENDED WASHER |
| EXTENDED WASHER DIAMETER | 0.620 INCHES NOMINAL |
| DIAMETER | 0.480 INCHES NOMINAL |
| STUD HEAD HEIGHT | 0.360 INCHES NOMINAL |
| STUD ASSEMBLY STYLE | 1 STUD ASSEMBLY |
| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | 0.314 INCHES MINIMUM AND 0.354 INCHES MAXIMUM |
| EYELET OUTSIDE DIAMETER | 0.306 INCHES MINIMUM AND 0.318 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5325-01-495-1011
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
